Home >> Mitsubishi >> 1992 >> Diamante V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Part 4 of 5

Part 4 of 5

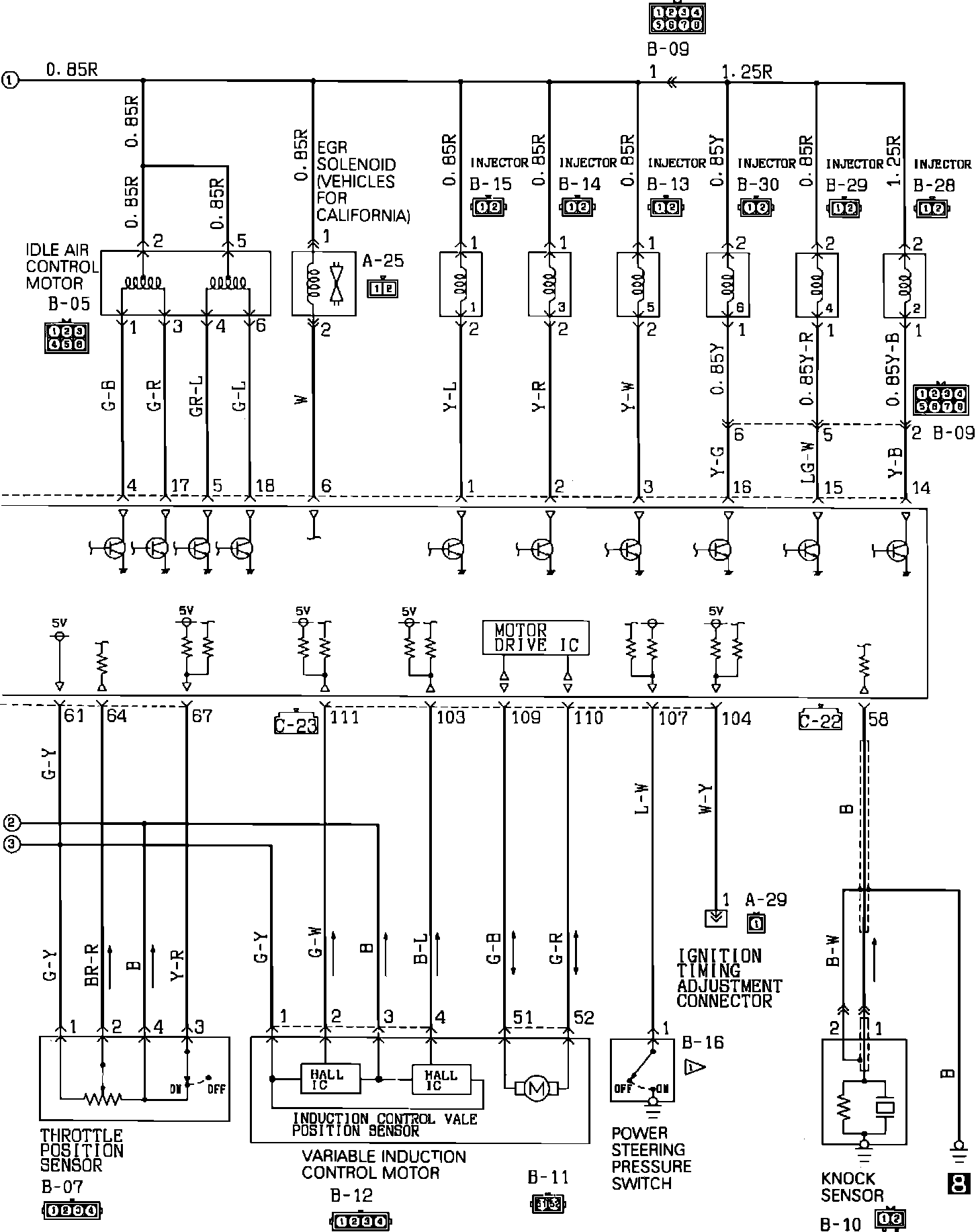

Multi-Point Fuel Injection Schematic (Part 4 Of 6):
