Heater Core Case: Service and Repair

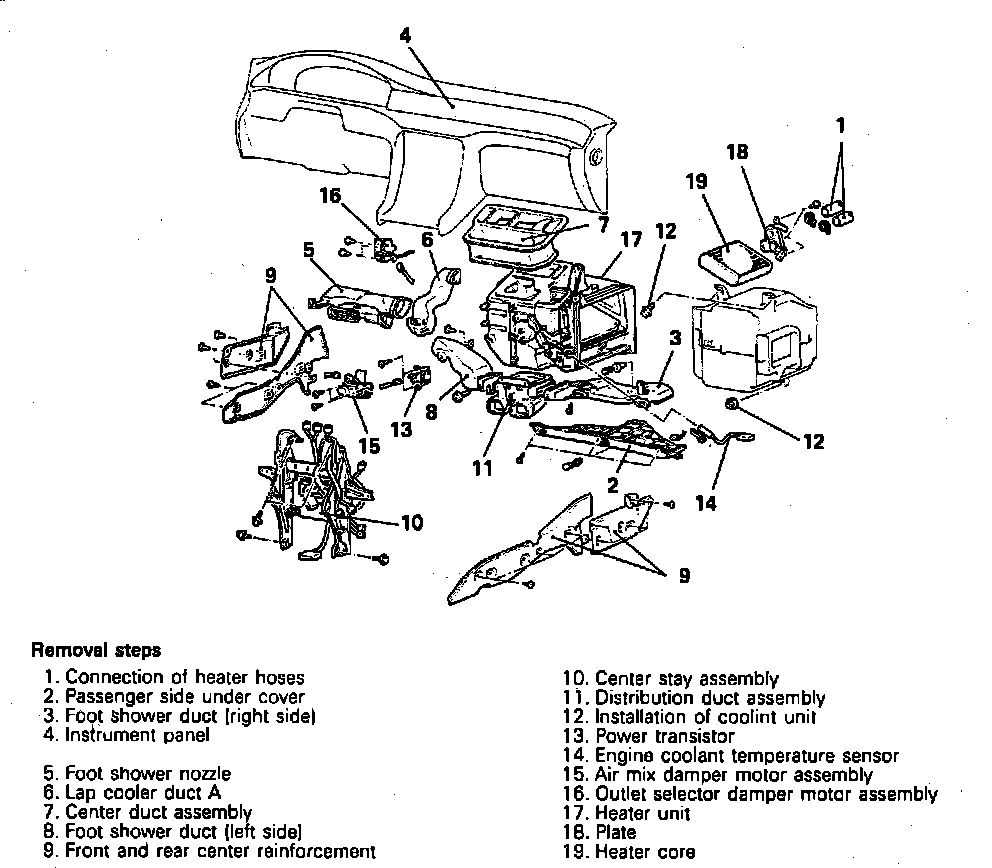

Fig. 5 Replacing Heater Unit:

1. Disarm airbag as outlined under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
2. Drain cooling system into a suitable container.
3. Remove instrument panel as outlined in BODY ELECTRICAL SAFETY AND ENTERTAINMENT/INSTRUMENT PANELS AND CLUSTERS/COMPONENT REPLACEMENT AND REPAIR PROCEDURES/INSTRUMENT CLUSTER.
4. Replace heater unit in numbered sequence shown in Fig. 5.
5. Reverse procedure to install, ensuring proper operation of airbag as outlined under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
