Brakes - ABS Speed Sensor Checking Manual Correction

9234mitsubishi01

NO.: TSB-92-35-005

DATE: April, 1992

MODEL: 1992 Diamante


ABS WHEEL SPEED SENSOR CHECKING -
SERVICE MANUAL CORRECTION


TSB Revision TSB-92-35-005

PURPOSE

This Technical Service Bulletin corrects information in the ABS Service Adjustment Procedures section of the 1992 Diamante Service Manual.

As a reference to this bulletin, write the TSB revision number in the TSB revision boxes located at the bottom of the affected service manual pages.

SERVICE MANUALS AFFECTED

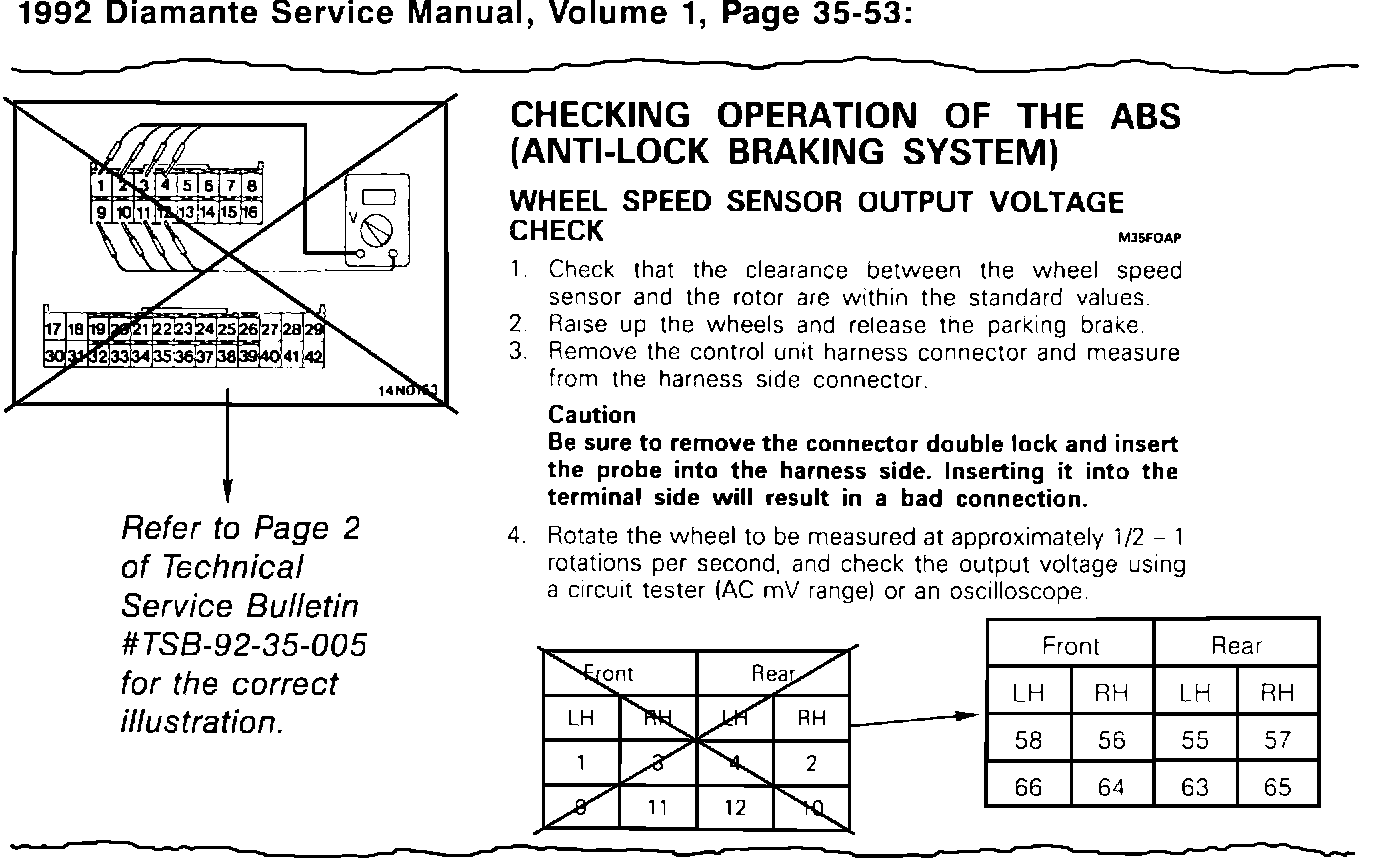

1992 Diamante, Volume 1, Page 35-53.

DESCRIPTION





On page 35-53, the pin numbers for checking output voltages on the wheel speed sensors are incorrect. Please revise page 35-53 and reference this TSB for the correct information.

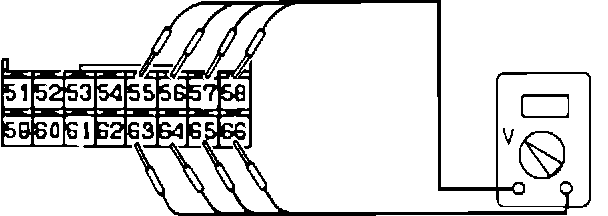

Replace illustration number 14NO153 on page 35-53 with the illustration shown.
