Antilock Brakes / Traction Control Systems: Locations

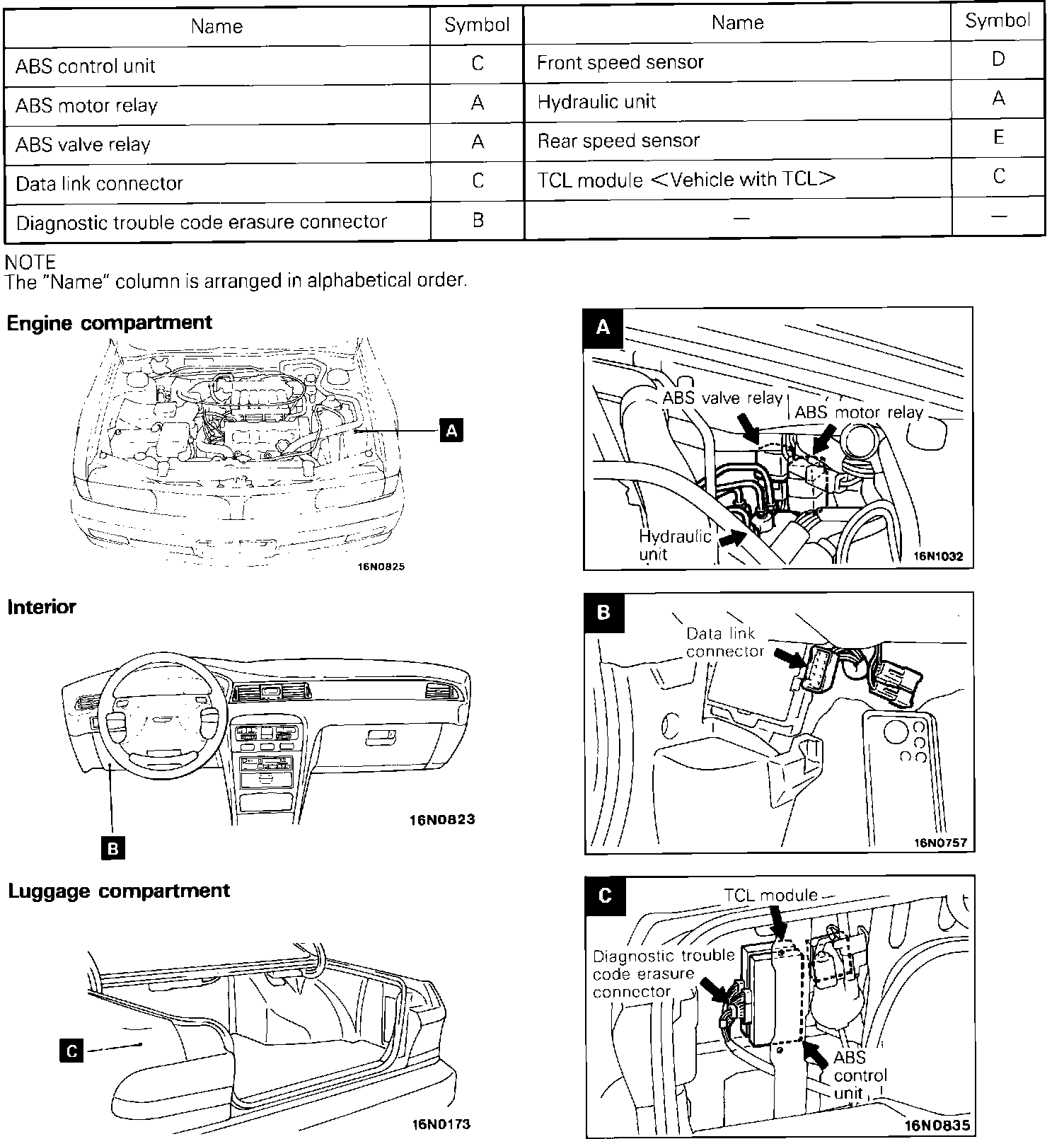

Anti-Lock Brakes (ABS): Component Location:

Anti-Lock Brakes (ABS): Component Location:

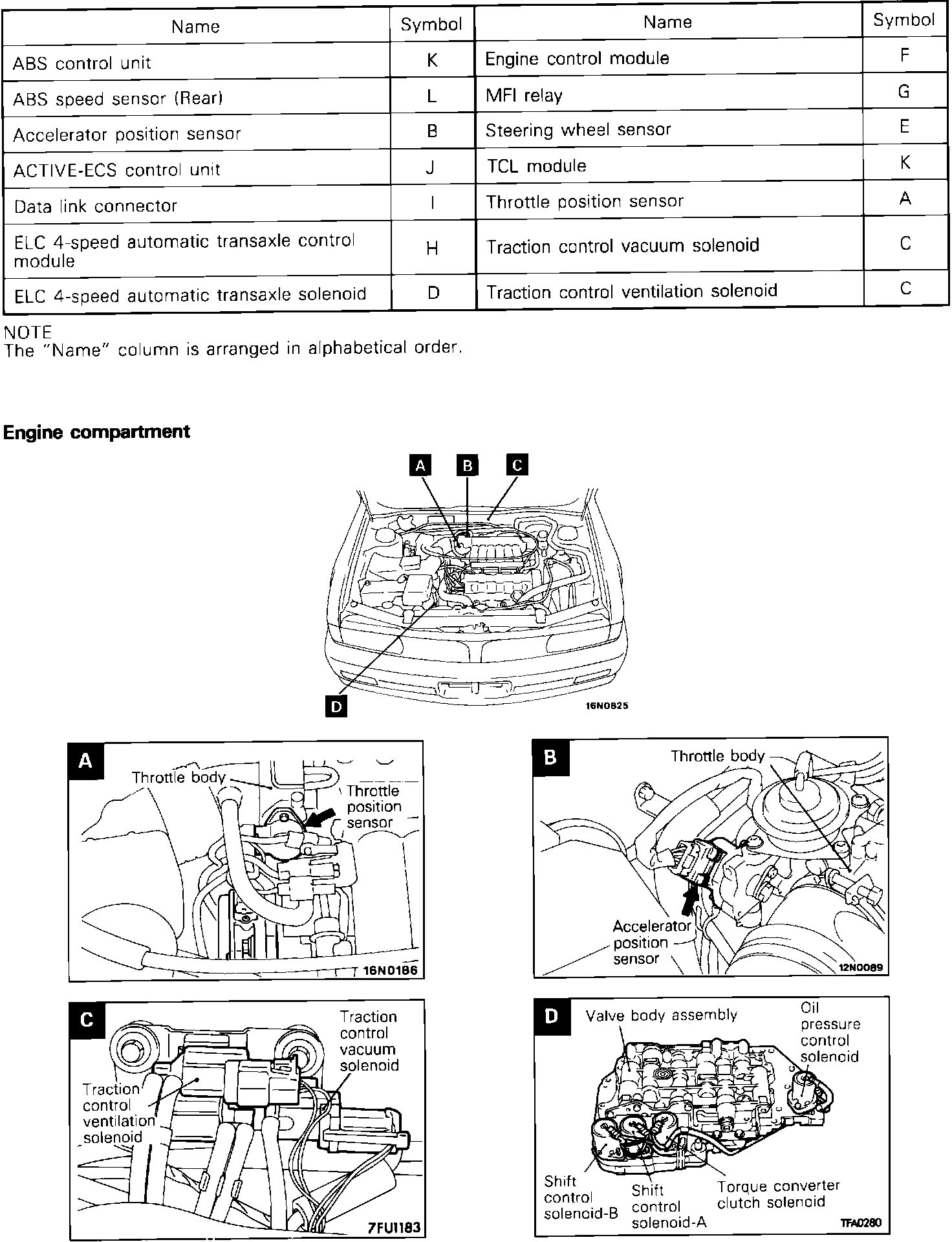

Engine Compartment Traction Control (TCL) Component Location:

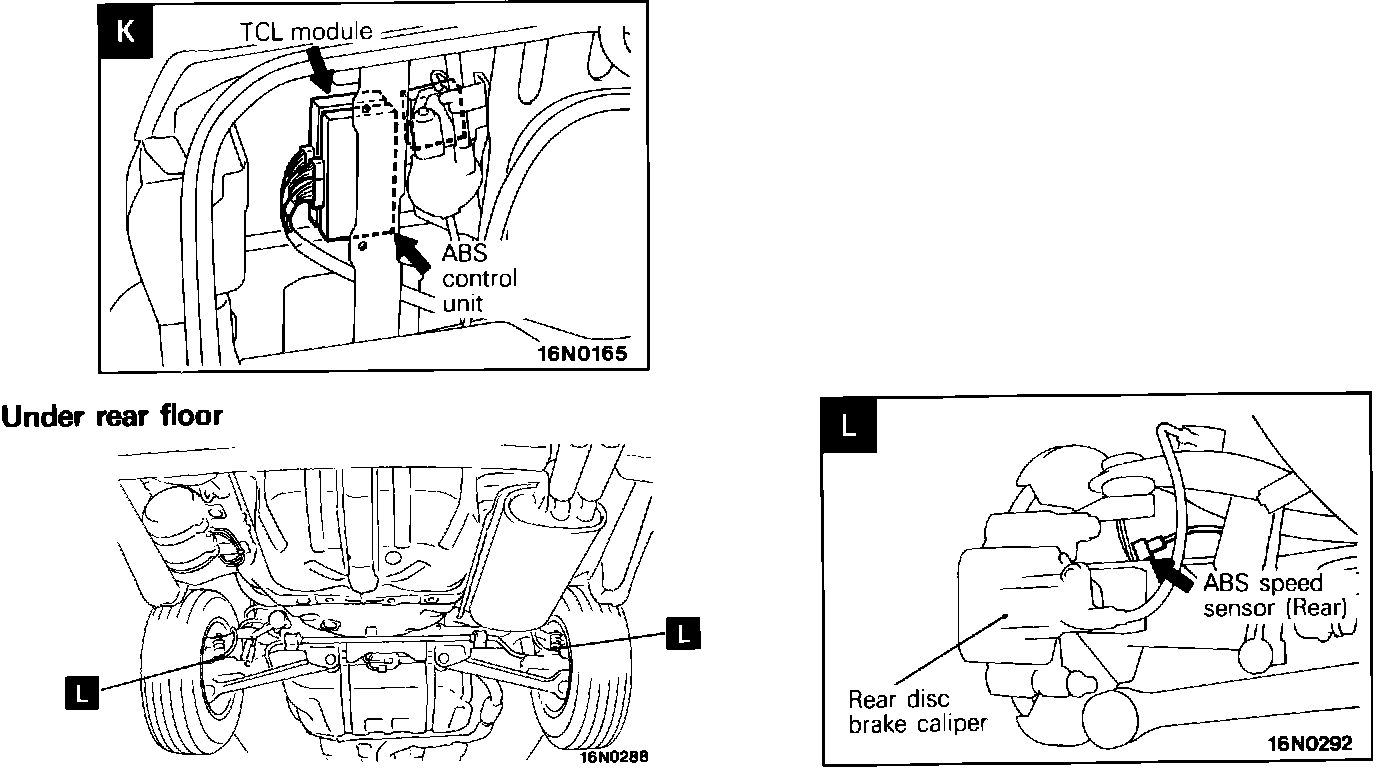

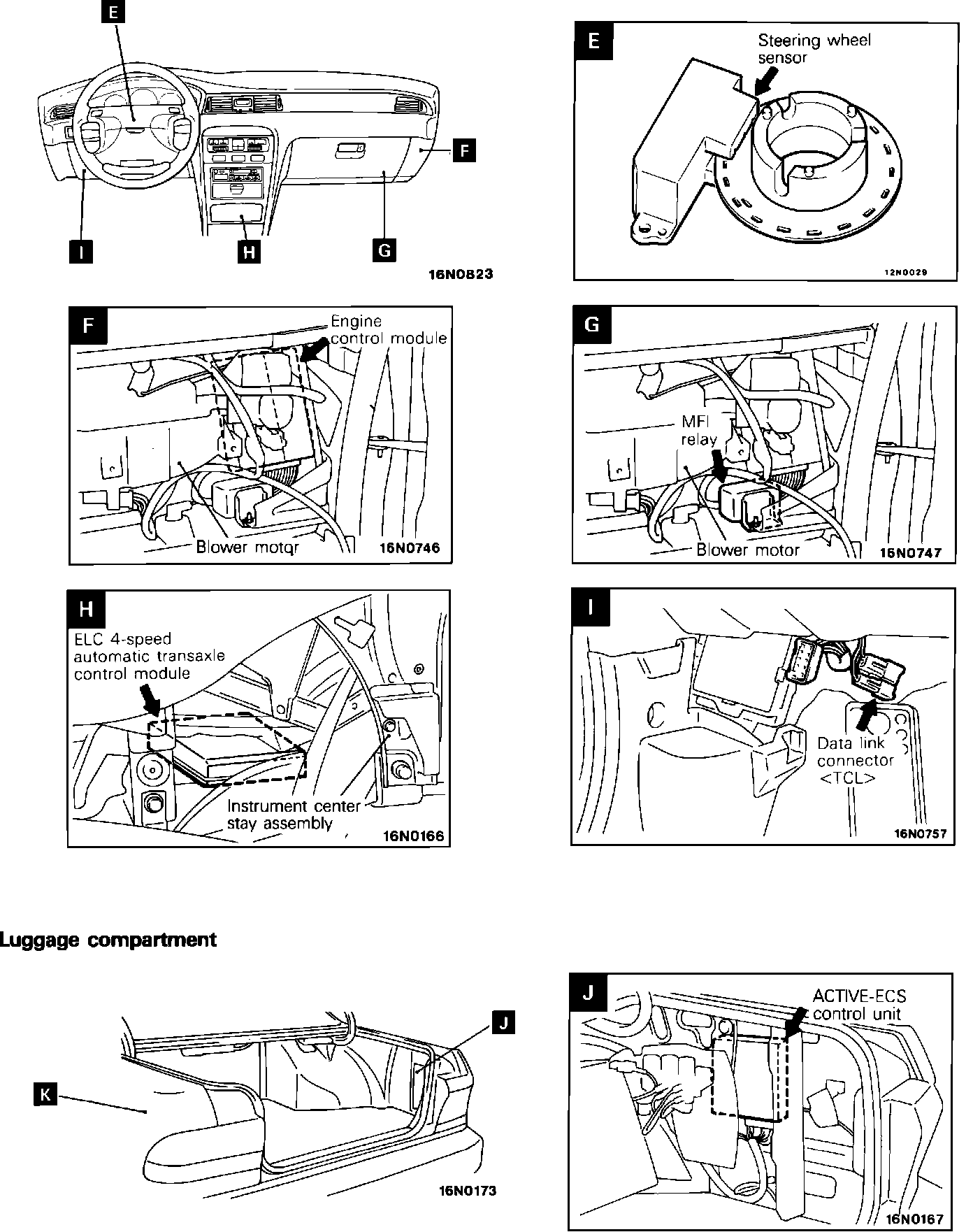

Interior, Luggage Compartment and Under Rear Floor Traction Control (TCL) Component Location:

Interior, Luggage Compartment and Under Rear Floor Traction Control (TCL) Component Location:
