Body - Front Fender Installation Revision
NO.: TSB-91-42B-004DATE: August, 1991
MODEL: 1992 Diamante
SUBJECT:
FRONT FENDER SEALING - SERVICE MANUAL SUPPLEMENT
[TSB Revision TSB-91-42B-004]
PURPOSE
This bulletin supplements the front fender installation instructions shown in the 1992 Diamante Service Manual. To prevent corrosion after a front fender is removed or is replaced, unpainted edges should be sealed with a ribbon type sealer (3M Part Number 8625 or equivalent).
Please make the indicated service manual revision and as reference to this TSB, write this TSB number in the TSB revision box on the affected service manual page.
SERVICE MANUAL AFFECTED
1992 Diamante, page 42-41
SERVICE MANUAL REVISION

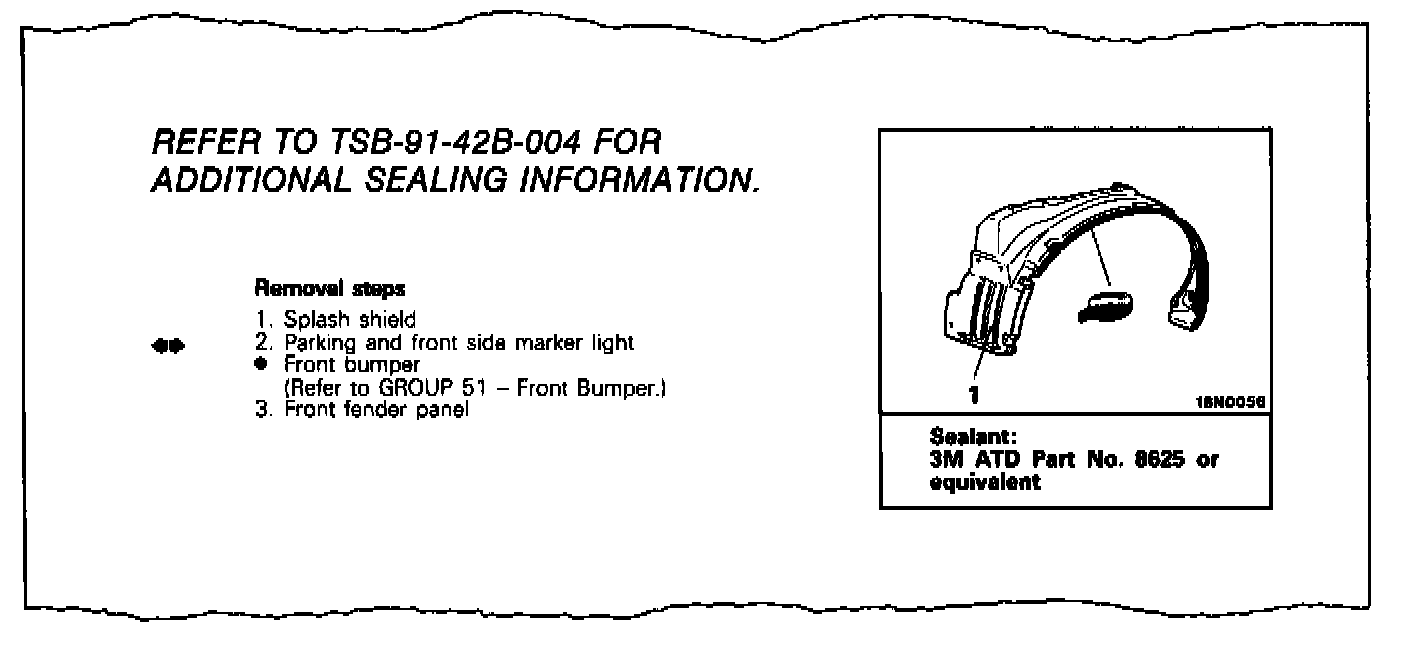

Please write "REFER TO TSB-91-42B-004 FOR ADDITIONAL SEALING INFORMATION" as shown.

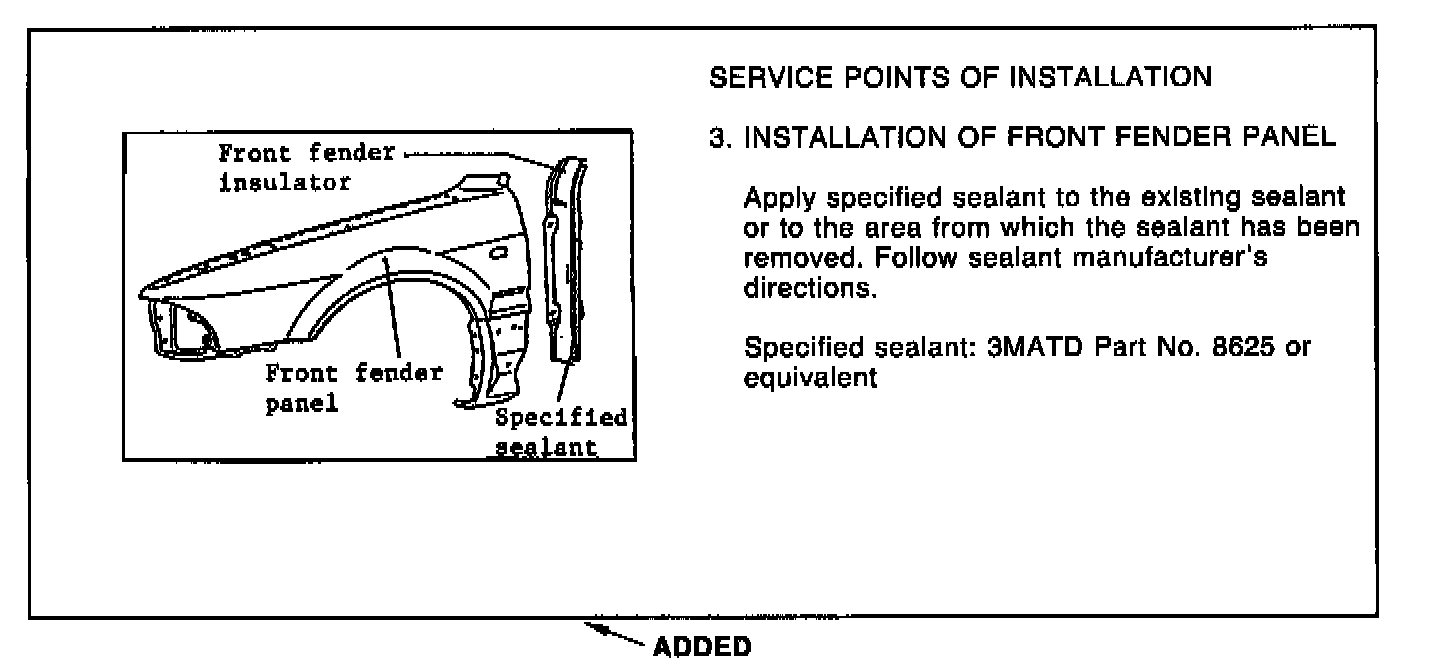

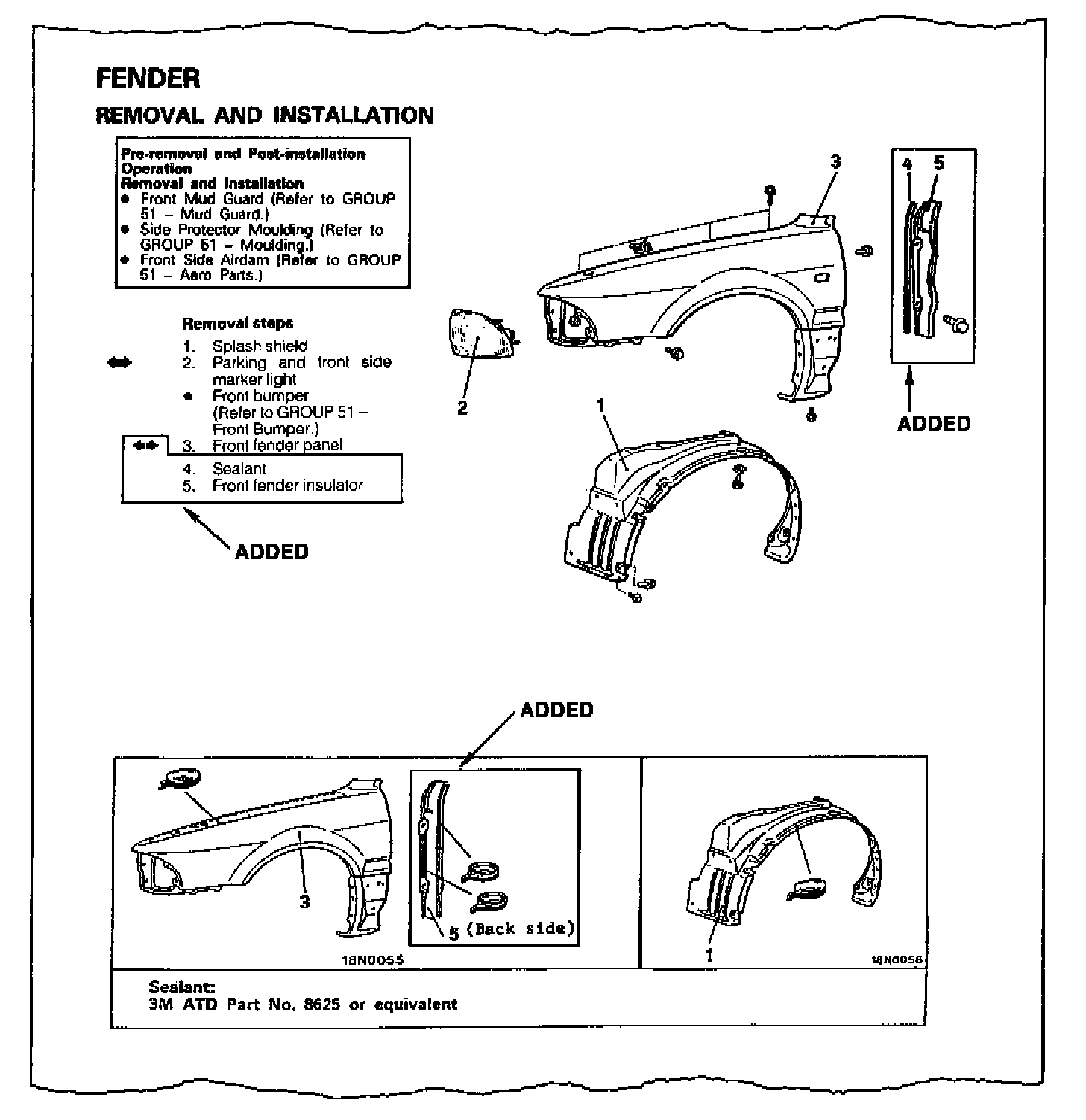

SUPPLEMENTAL SEALING INSTRUCTIONS
