Traction Control - Troubleshooting Chart Correction

9215mitsubishi01

NO.: TSB-91-13-018

DATE: November, 1991

MODEL: 1992 Diamante


SUBJECT: TCL TROUBLESHOOTING CHART -
SERVICE MANUAL CORRECTION


TSB Revision TSB-91-13-018

PURPOSE

This Technical Service Bulletin corrects the Traction Control System (TCL) troubleshooting chart used in the 1992 Diamante Service Manual. As a reference to this bulletin write the TSB Revision number in the TSB Revision box located near the bottom of each affected service manual page.

AFFECTED SERVICE MANUAL





1992 Diamante, Volume 1, Page 13-193.

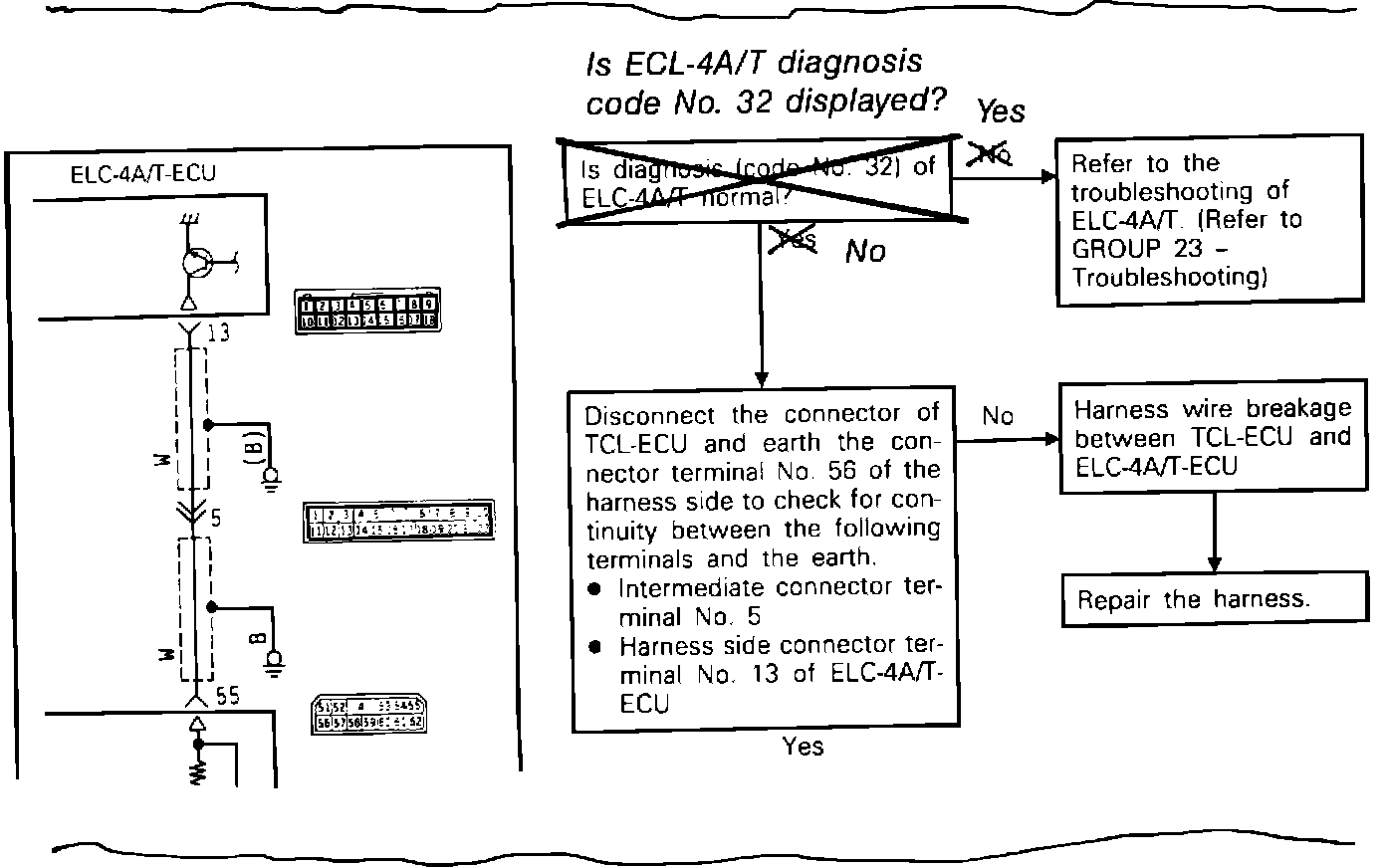

Change the wording used in one of the troubleshooting boxes, and reverse the "Yes" and "No" callouts surrounding the box.
