SRS System - Troubleshooting Chart Revision
NO.: TSB-96-52B-006DATE: December, 1996
MODEL: 1992-96 Diamante
SUBJECT:
SRS SYSTEM TROUBLESHOOTING CHART CORRECTION
- SERVICE MANUAL REVISION
TSB Revision TSB-96-62B-006
PURPOSE
This bulletin corrects the Supplemental Restraint System (SRS) troubleshooting chart in the 1992-96 Diamante Service Manual, Volume 1.

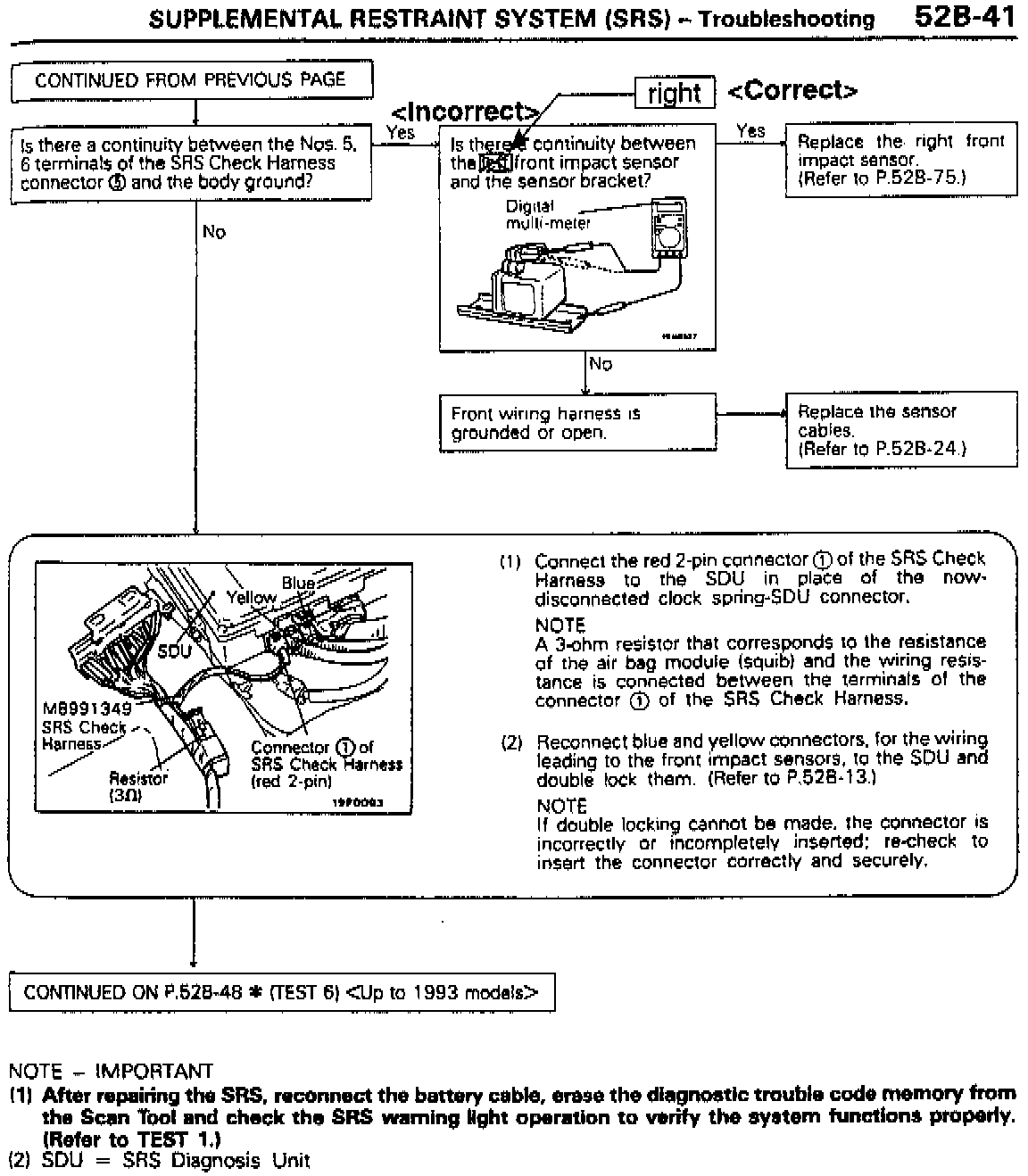

The chart indicates that after finding continuity between the number 5 and 6 SRS check harness terminals and ground, the continuity between the left front impact sensor and sensor bracket should be checked. This is incorrect. The right front impact sensor is the one that should be checked.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1992-96 Diamante
AFFECTED SERVICE MANUALS
1992-96 Diamante Service Manual, Volume 1, Page 52B-41
SERVICE MANUAL REVISION
1992-96 Diamante Service Manual, Volume 1, Page 52B-41
Correct the SRS troubleshooting chart as shown.
