Mitsubishi
>>
1992
>>
Diamante V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Timer/Control Unit
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Troubleshooting
Troubleshooting

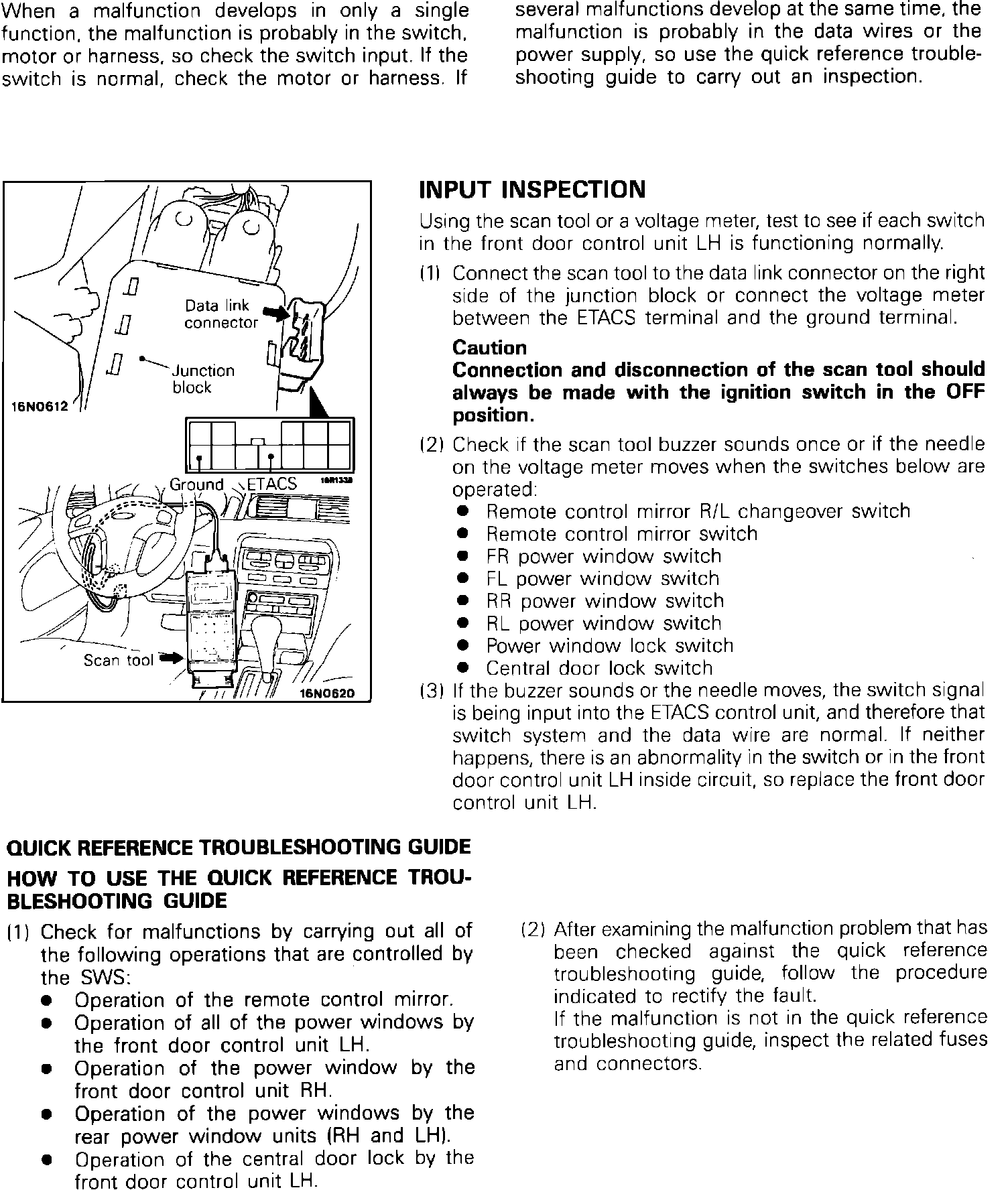

Simplified Wiring System (SWS) Troubleshooting:
