Automatic Transmission/Transaxle

HYDRAULIC PRESSURE TESTS


1. Completely warm up the transaxle.
2. Raise the vehicle by using a jack so that the front wheels can be rotated.
3. Connect an engine tachometer and place it in a position where it's easy to see.

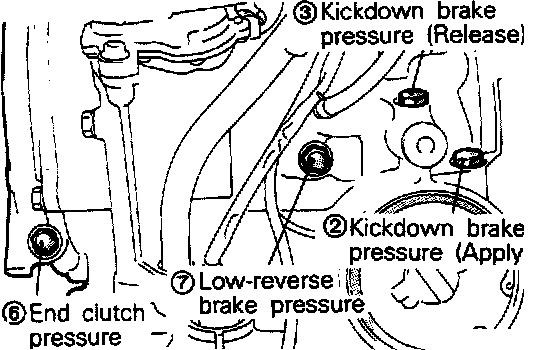

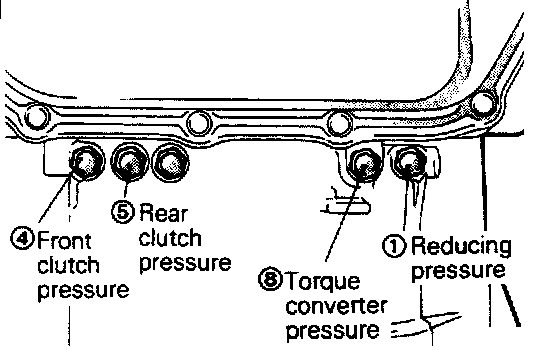

4. Attach the special oil-pressure gauge (MD998330 or MD999563) and the adaptor (MD998332) to each oil- pressure outlet port. When the reverse pressure is to be tested. the 3.000 kPa (400 psi) type of gauge should be used.

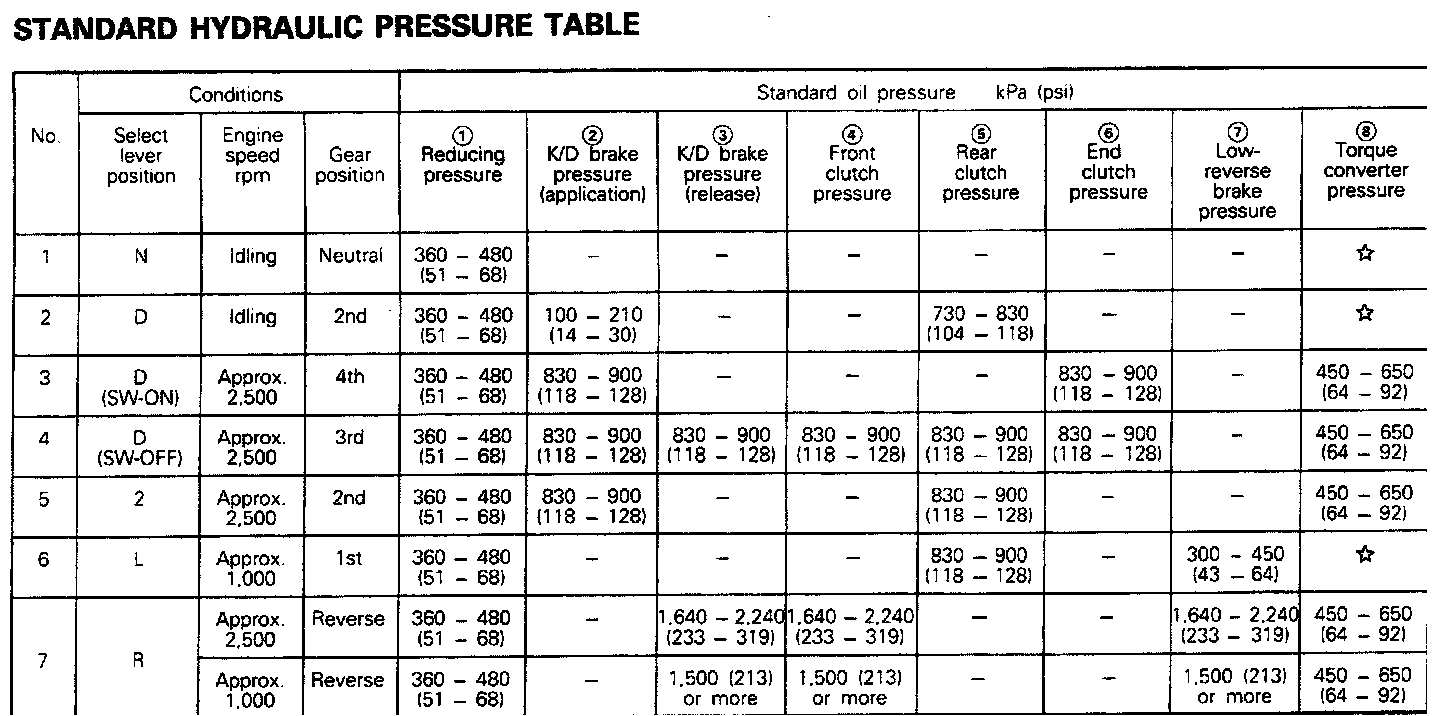

5. Measure the hydraulic pressure under various conditions, and check to be sure that the measured results are within the standard value range shown in the "Standard hydraulic pressure table" below.






NOTE

(1) -: Indicates pressure is below 10 kPa (1.4 psi).
(2) SW-ON: OD switch in ON position.
(3) SW-OFF: OD switch in OFF position.
(4) *: Pressure is not standard.

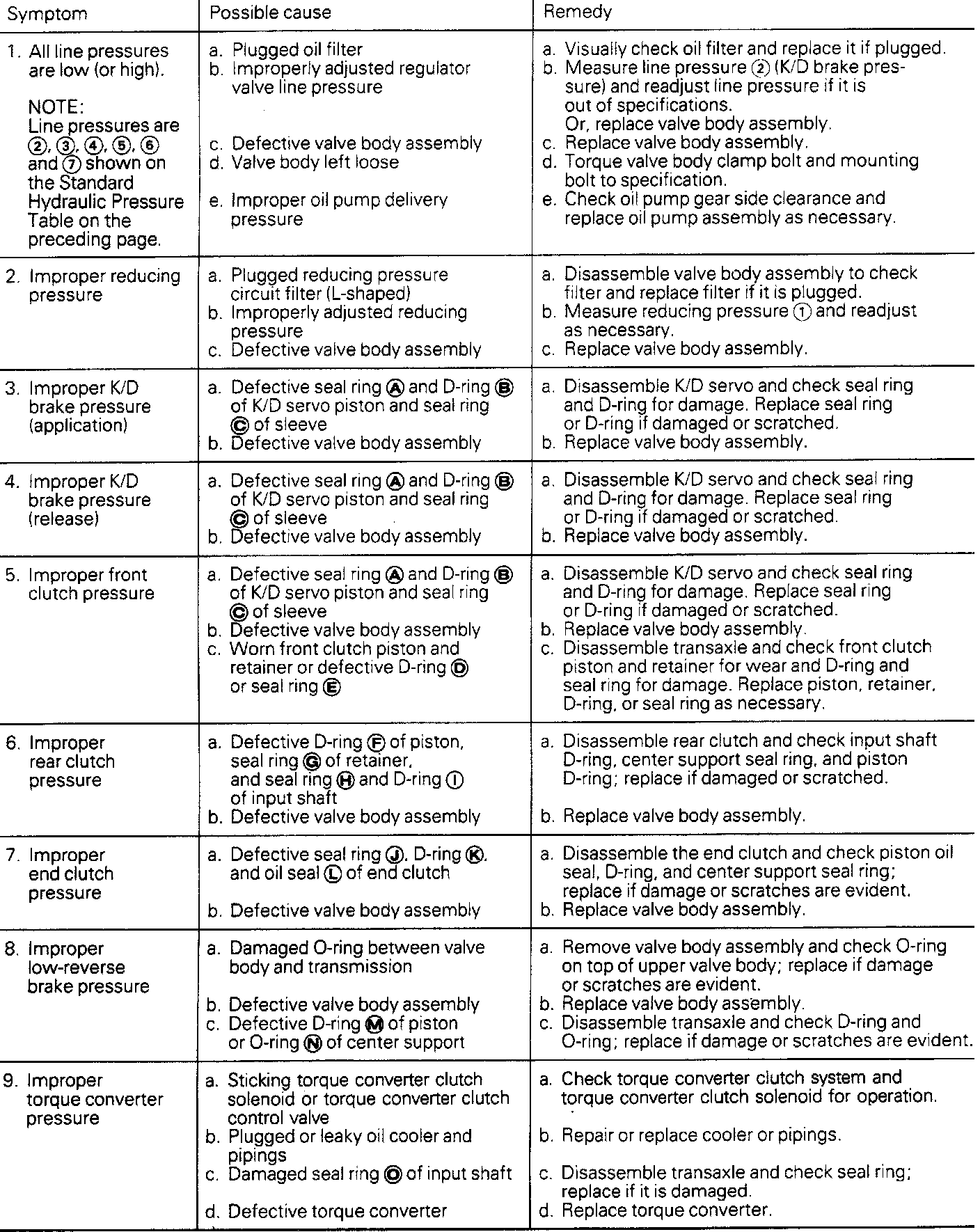

If the hydraulic pressure is not within the specified range, check and repair as described in the section "Remedial action to take for inadequate hydraulic pressure".

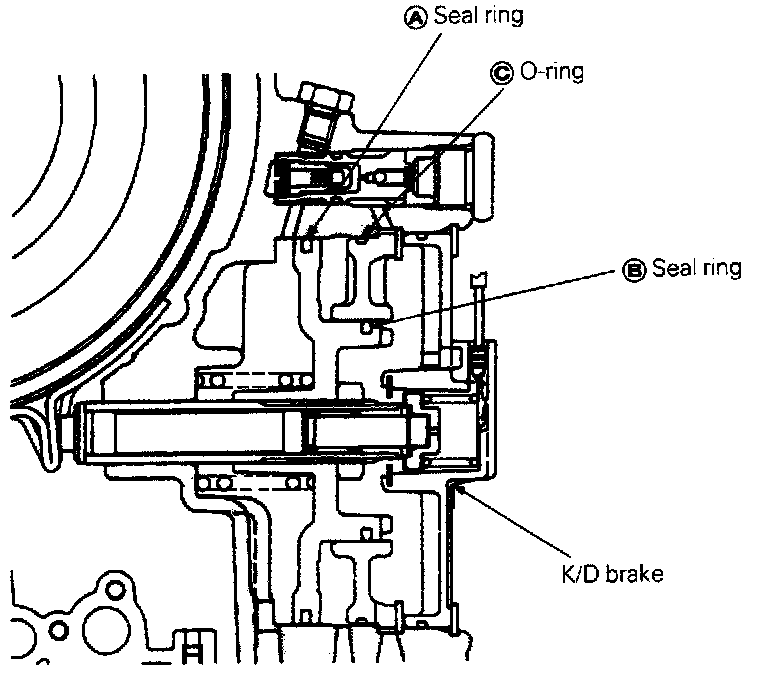

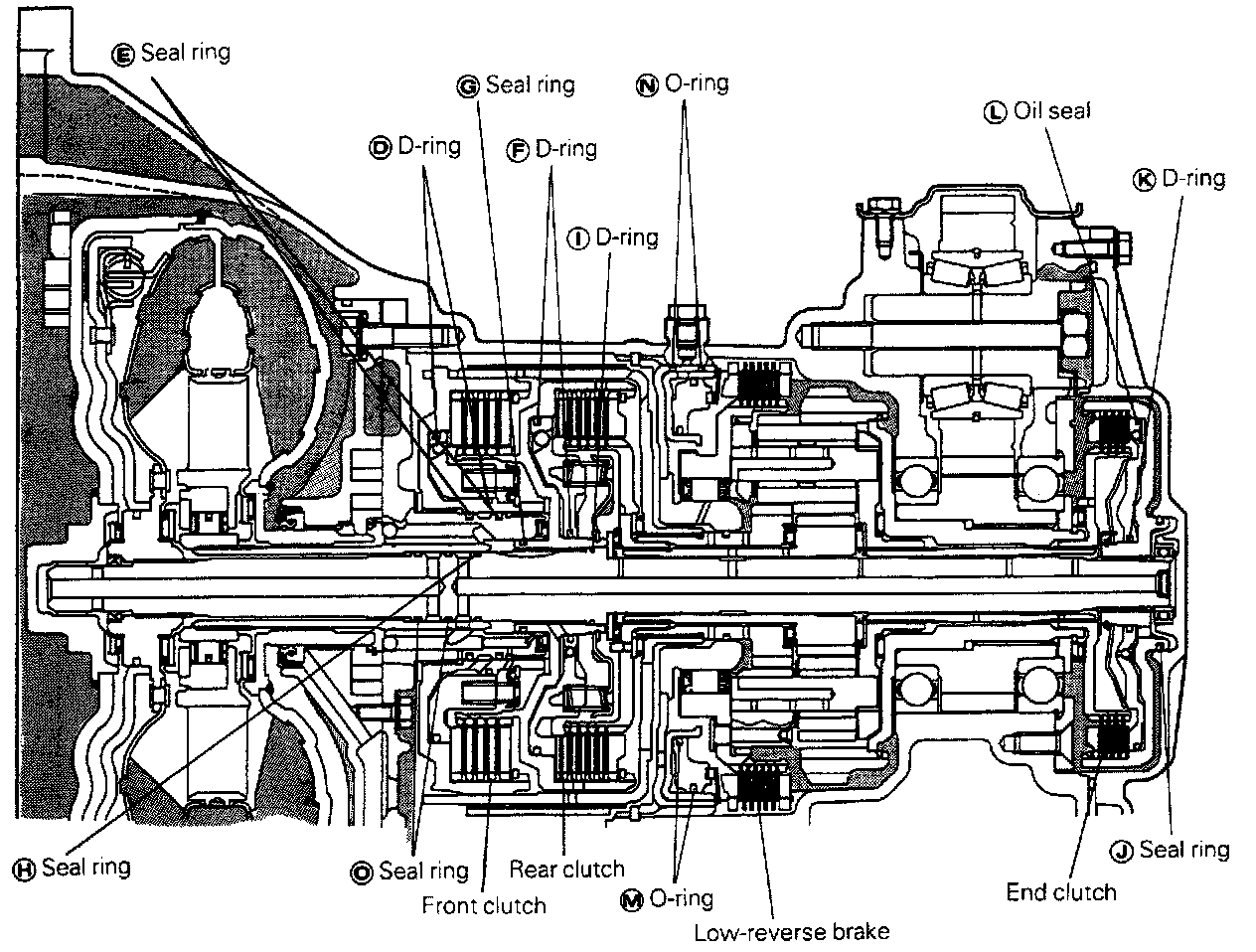

REMEDIAL ACTION TO TAKE FOR INADEQUATE HYDRAULIC PRESSURE
