A/C - Belt Lock Controller Terminal Voltage

9234mitsubishi01

NO.: TSB-92-55-003

DATE: March, 1992

MODEL: 1992 Diamante


DIAGNOSIS OF A/C
BELT LOCK CONTROLLER -
SERVICE MANUAL SUPPLEMENT

TSB Revision TSB-92-55-003

PURPOSE

This technical service bulletin supplements Section 55 of the 1992 Diamante Service Manual by adding a chart to check terminal voltages of the A/C belt lock controller.

As a reference to this bulletin, write the TSB revision number in the TSB revision box located on the affected service manual page.

SERVICE MANUALS AFFECTED

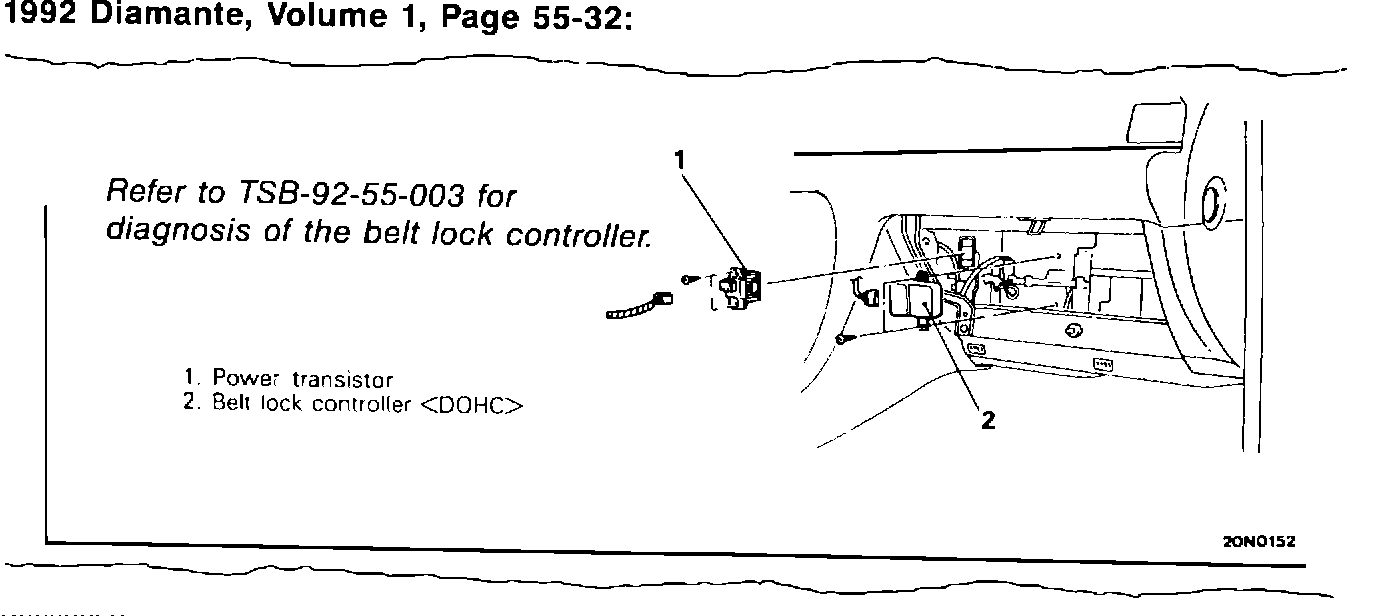

1992 Diamante, Volume 1, Page 55-32.

VEHICLES AFFECTED

1992 Diamante equipped with DOHC engine.

DESCRIPTION





To provide greater diagnostic capabilities for the Full-Automatic A/C system, a belt lock controller terminal voltage checking procedure has been established.

As shown, reference the service manual reader to this technical service bulletin for A/C belt lock controller terminal voltage checking.

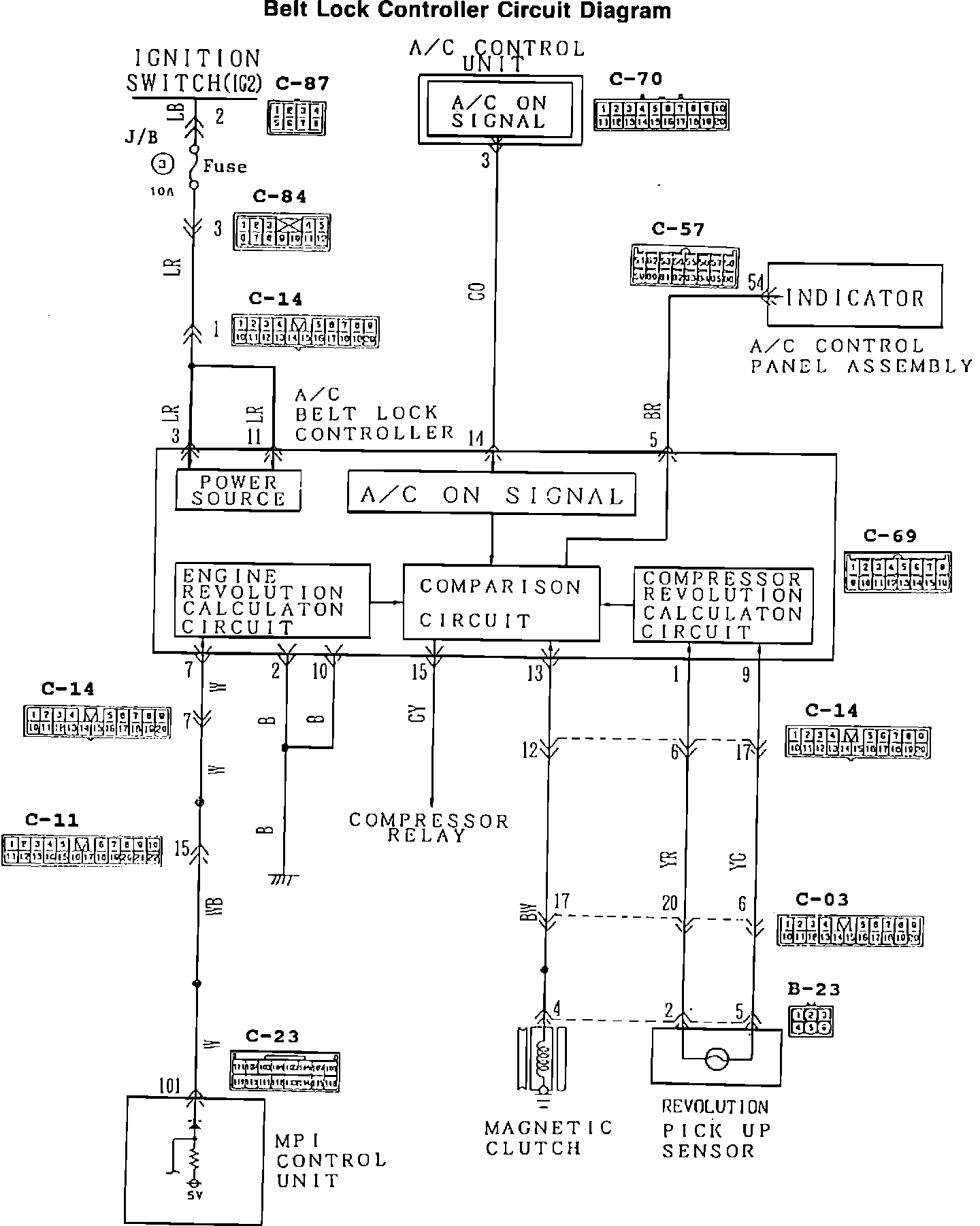

Use the illustrated circuit diagram and chart for checking A/C belt lock controller terminal voltages. Also refer to the 1992 Diamante Service Manual, Volume 2, Pages 116-121, for the entire Full-Automatic A/C system diagram used on the DOHC-equipped Diamante.

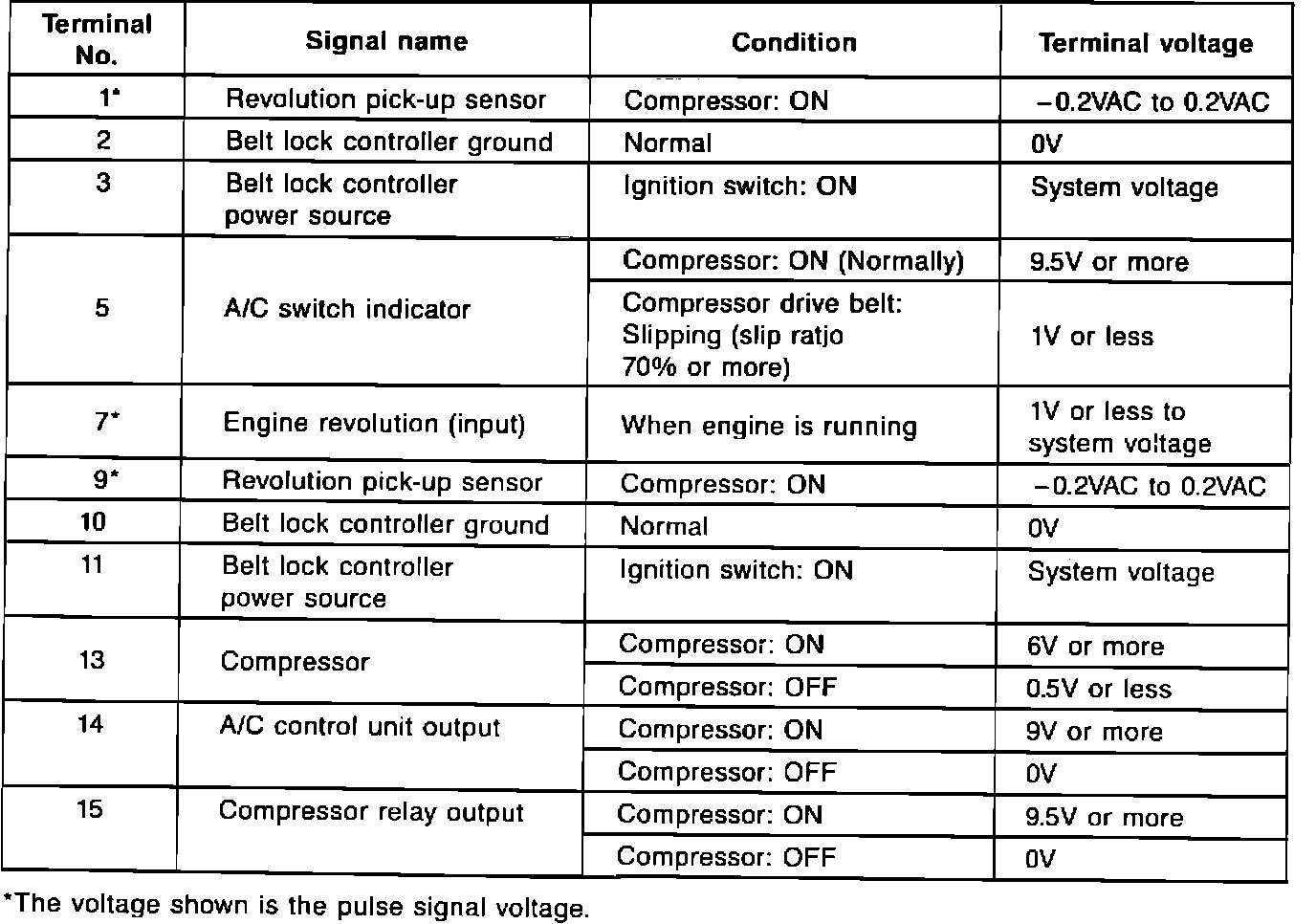

Belt Lock Controller Terminal Voltages
