Ignition Cable: Diagrams

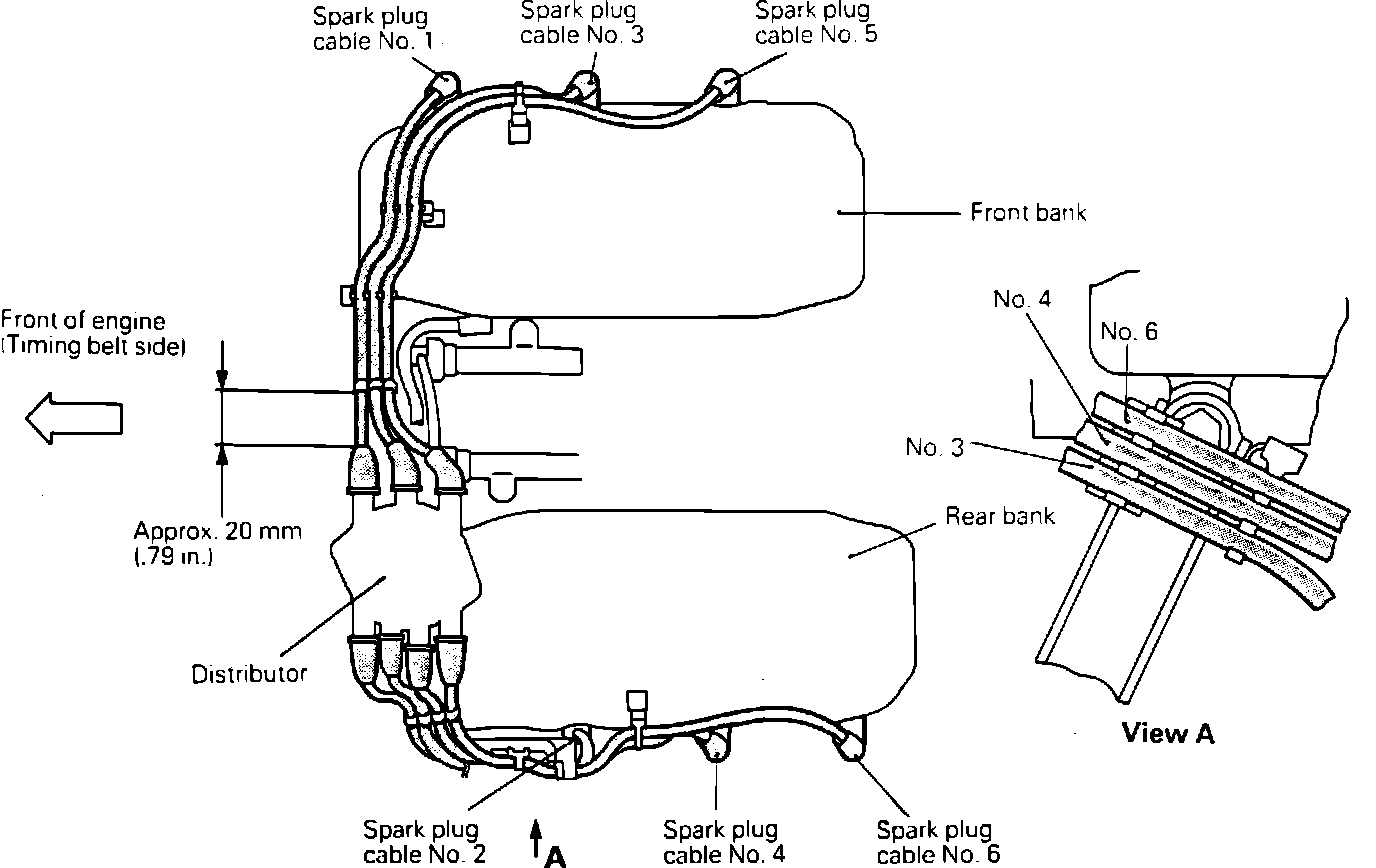

TOP VIEW
Spark Plug Wire Routing:
SIDE AND END VIEW
Ignition Cable Routing:
