Engine Controls - TPS Adjustment Revision
NO.: TSB-91-13-014DATE: October, 1991
MODEL: Diamante
SUBJECT:
TPS ADJUSTMENT - SERVICE MANUAL CORRECTION
[TSB Revision TSB-91-13-014]
PURPOSE
This bulletin corrects the direction in which the Throttle Position Sensor (TPS) should be turned to increase the output voltage. As shown below, please write in the indicated service manual corrections and as reference to this TSB, please write this TSB number in the TSB Revision box on the affected service manual page.
AFFECTED SERVICE MANUAL
1992 Diamante, volume 1, page 13-50

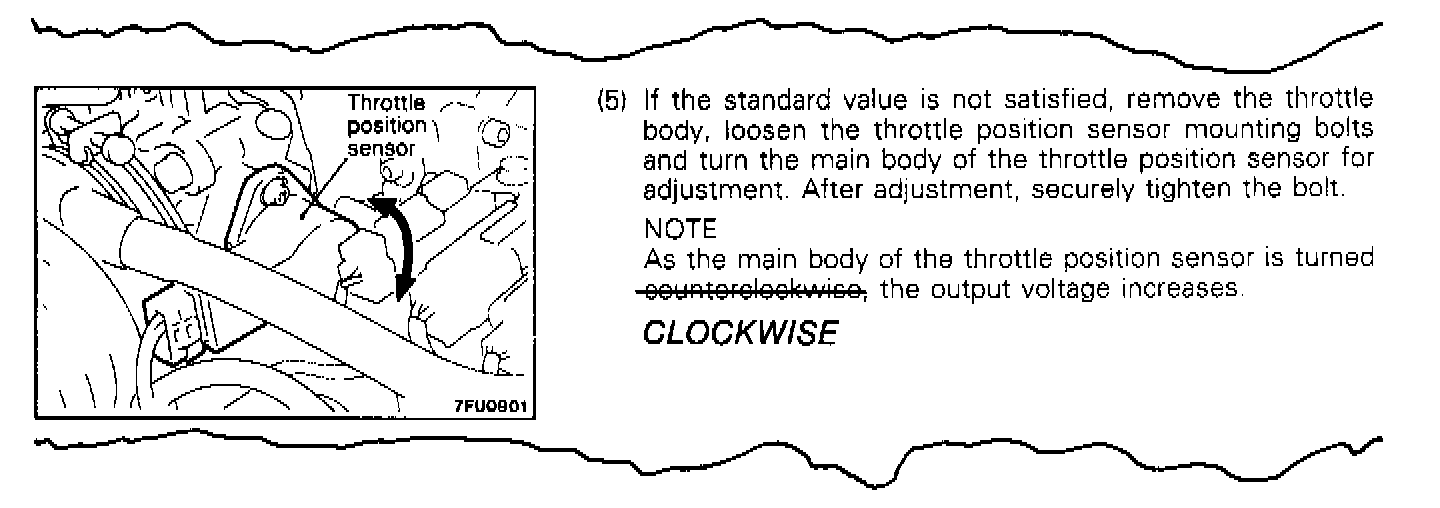

SERVICE MANUAL CORRECTION
As shown, please cross out counterclockwise and write in "CLOCKWISE".
