Diamante V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Power Transistor & Ignition Coil
>>
Inspection Procedure
Inspection Procedure

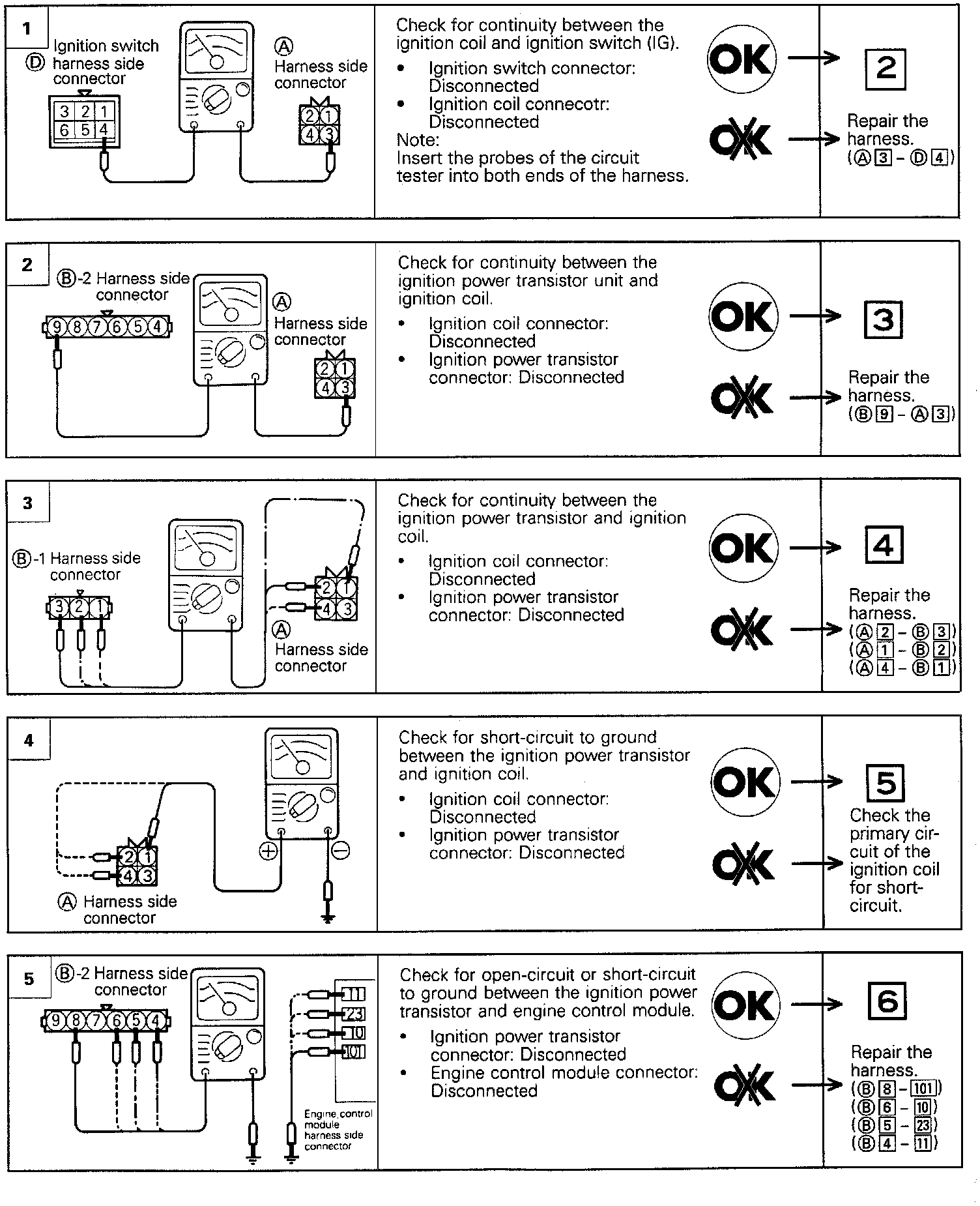

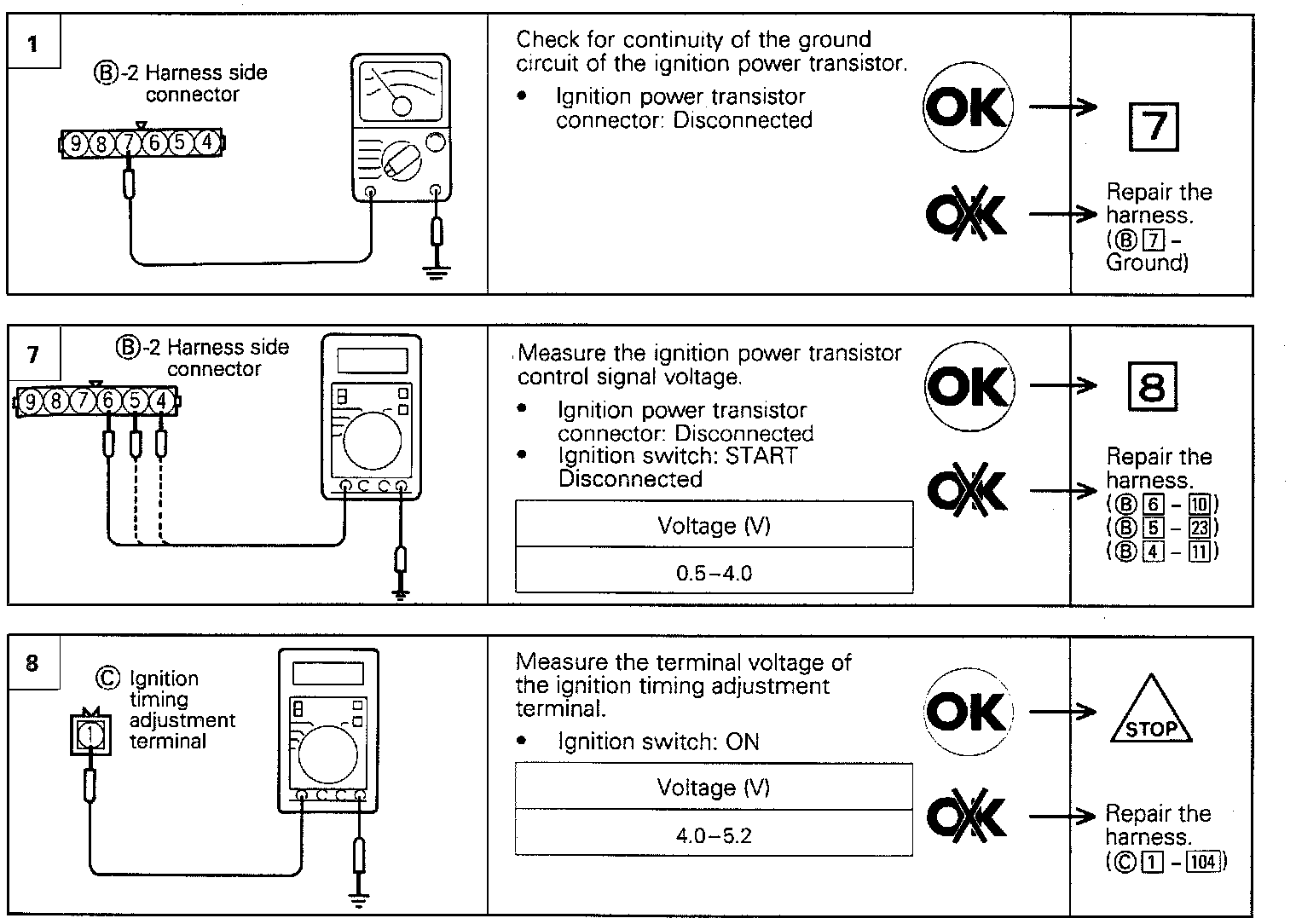

Harness Test:
Harness Test:
