Coolant Temperature Switch (A/C Only)

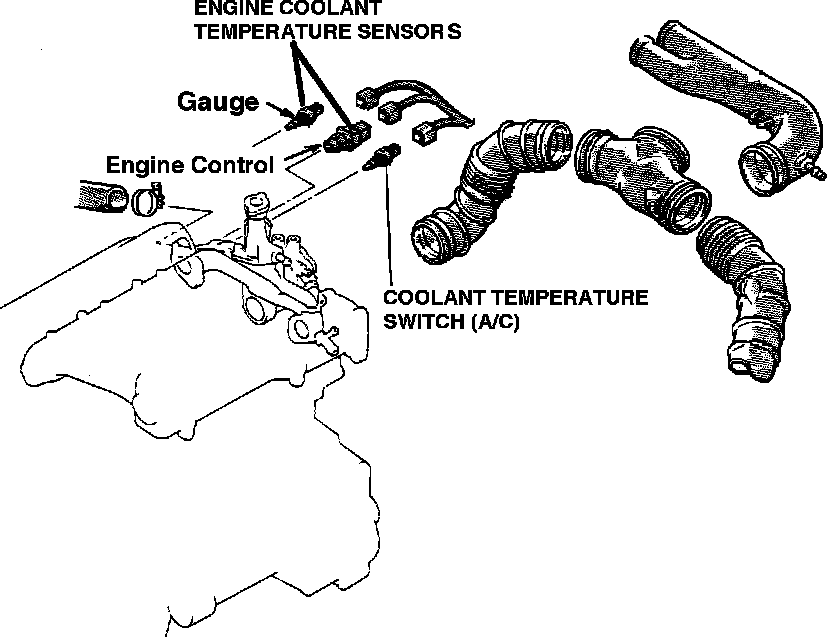

Engine Coolant Temperature Sensor And Switch Removal:

REMOVAL

1. Drain approximately 2 quarts of coolant from the radiator drain plug.
2. Remove upper radiator hose.
3. Disconnect the electrical connector.
4. Remove the sensor with a suitable socket.

Coolant Temperature Sensor:

INSTALLATION

1. Apply sealant to the threaded portion of the sensor.
Specified Sealant:
3M Nut Locking P/N 4171 or equivalent.
2. Install the sensor and tighten to the specified torque.
Specified Torque:
6 ft-lbs (8 Nm)
3. Reconnect the electrical connector.
4. Refill the radiator and check for leaks.
