Home
>>
Mitsubishi
>>
1992
>>
Diamante V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Component Locations
Component Locations
MFI Component Locations DOHC

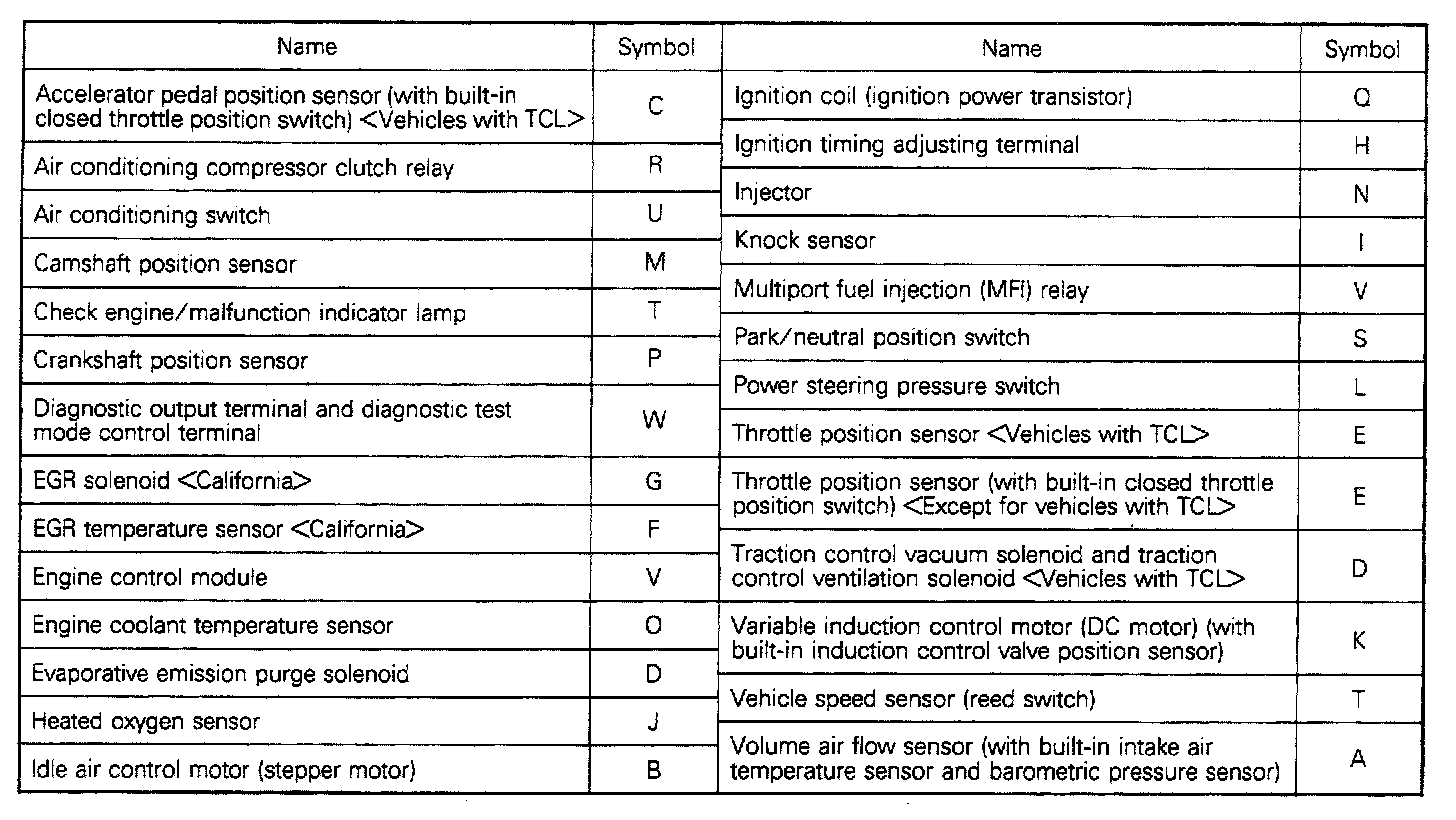

Component Location Legend DOHC:
Component Locations:

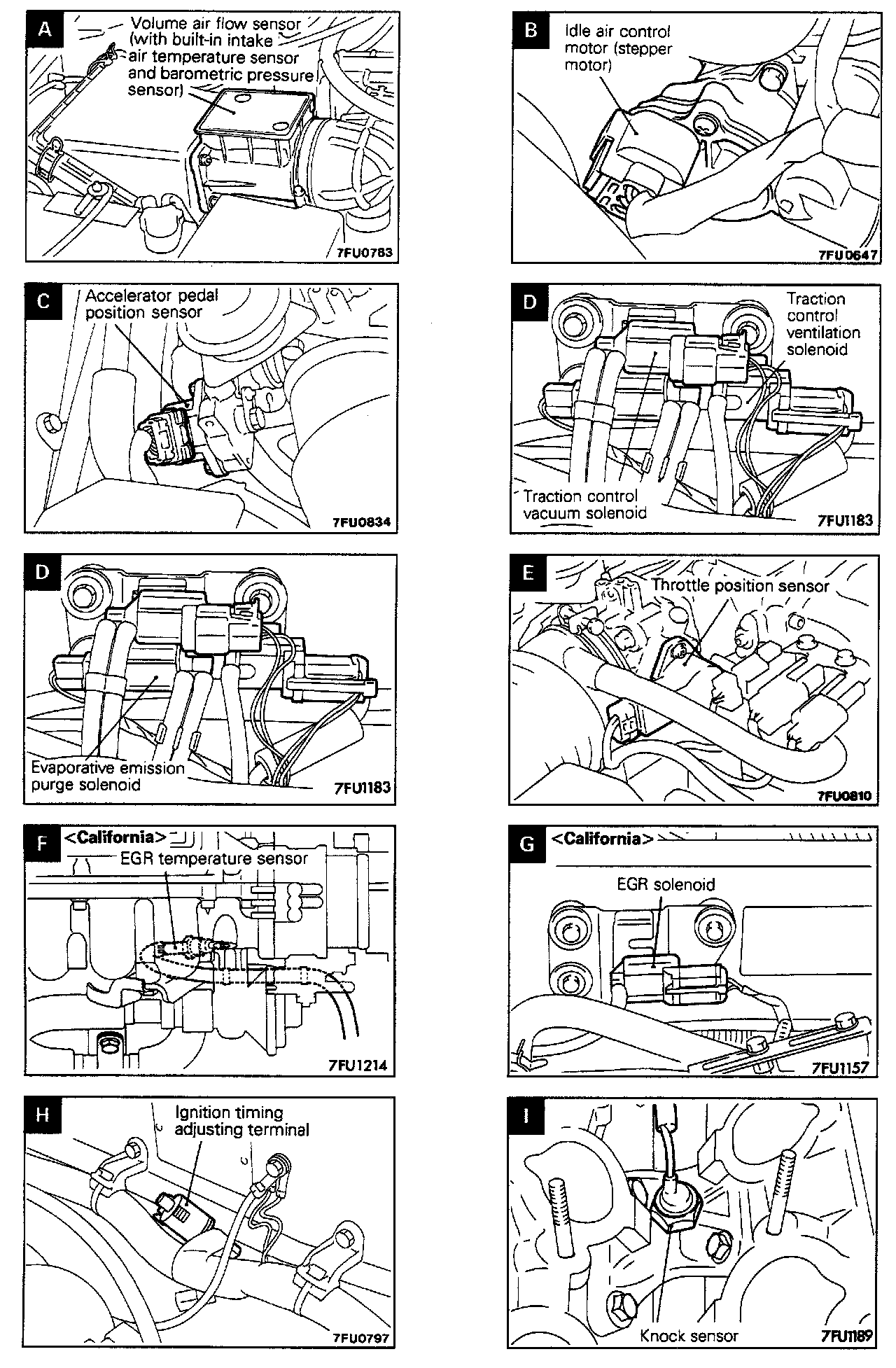

Component Location Images A-I:

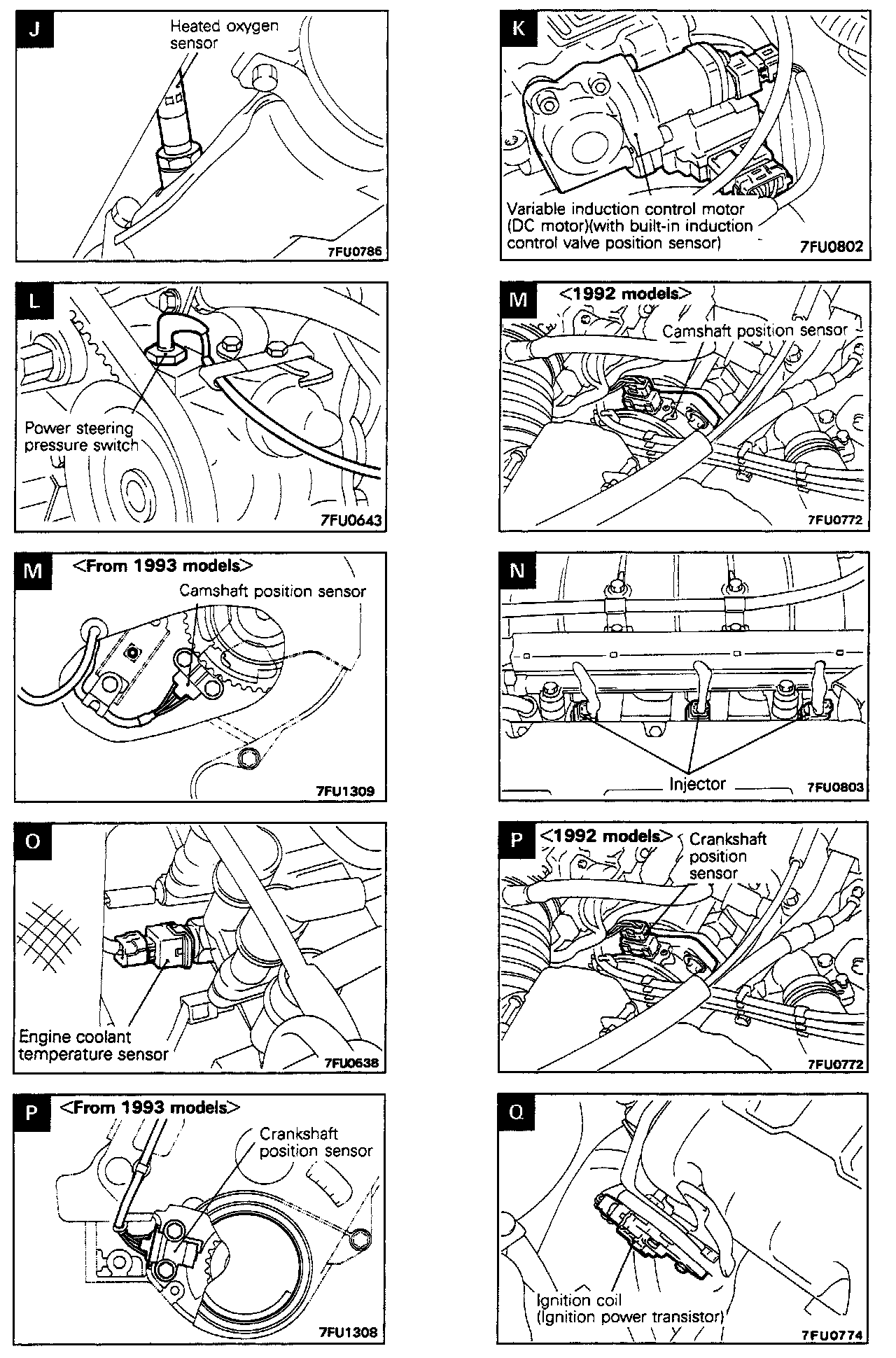

Component Location Images J-Q:

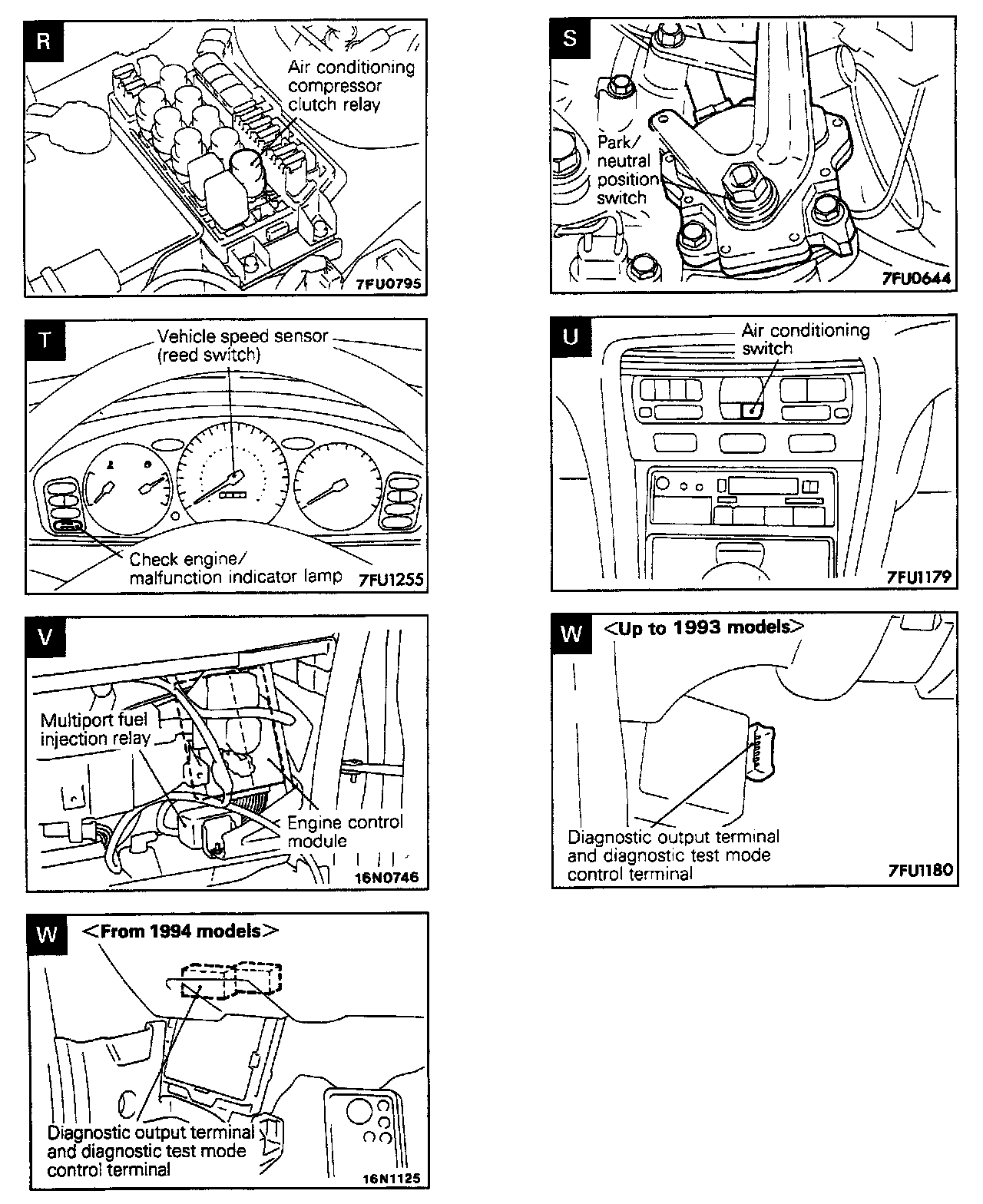

Component Location Images R-W:
