Home >> Mitsubishi >> 1992 >> Diamante V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> With Traction Control (Tcl) >> Part 2 of 7

Part 2 of 7

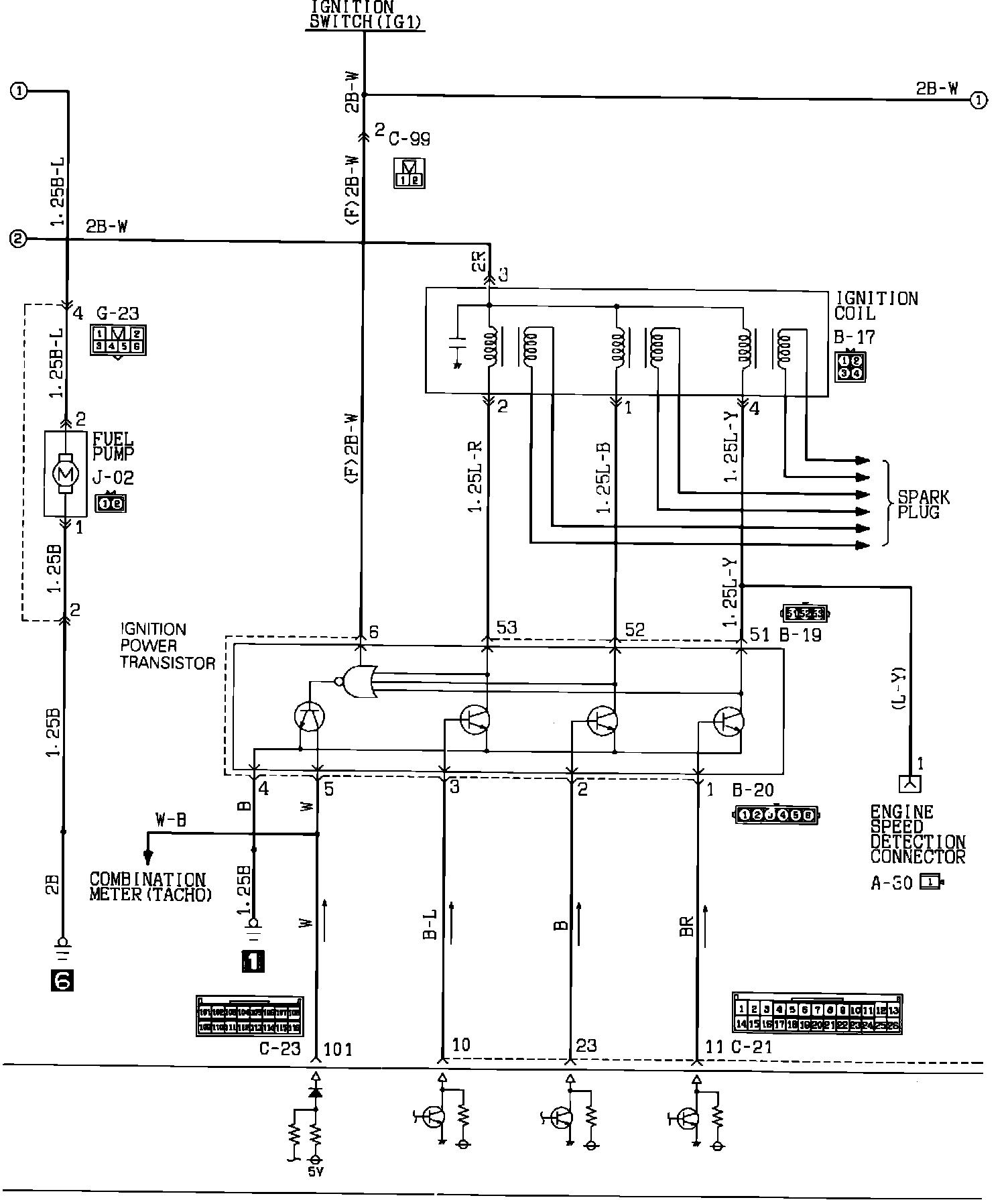

Multi-Point Fuel Injection Schematic (Part 2 Of 7):
