Accelerator Pedal Position Sensor: Locations

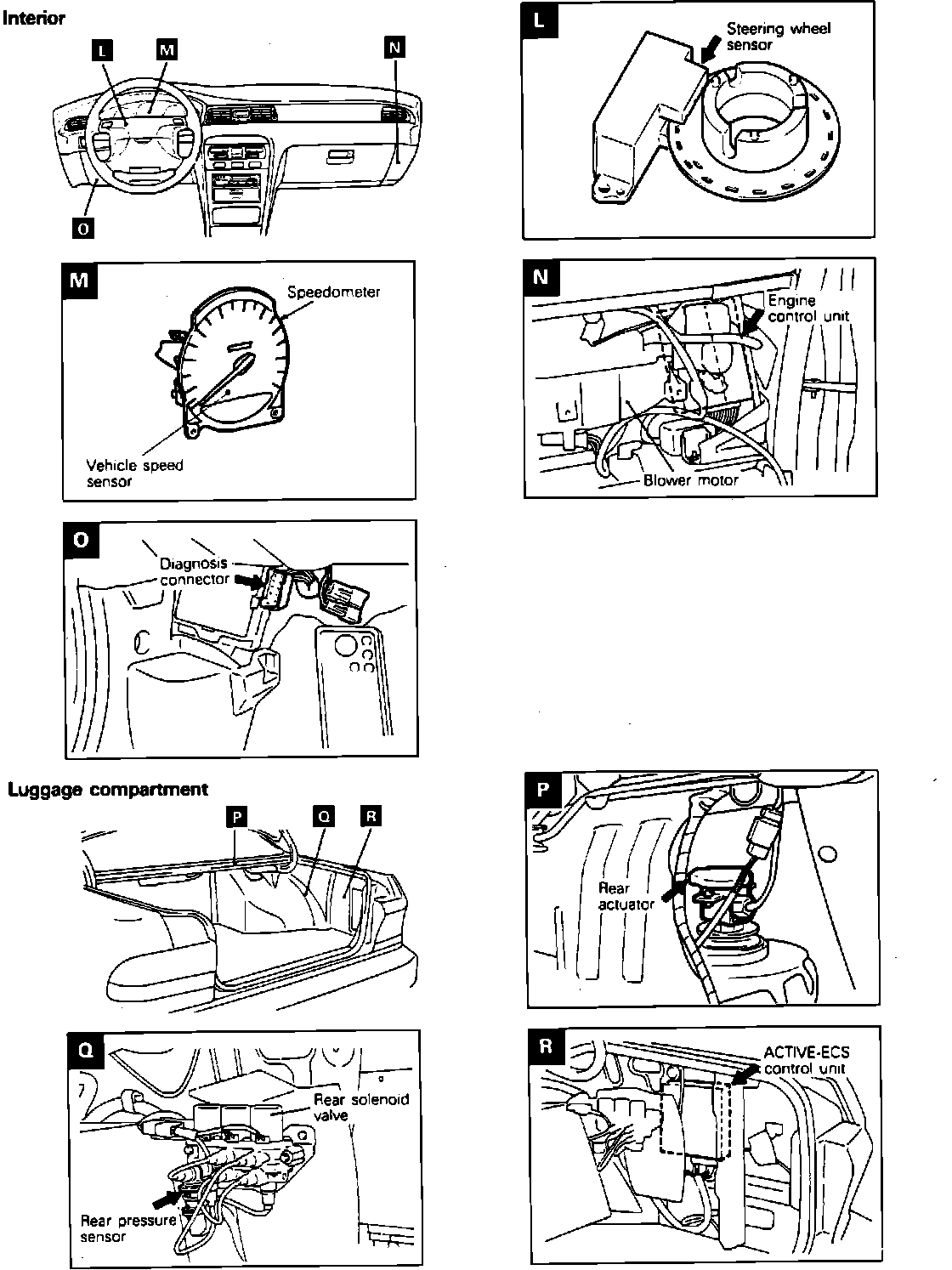

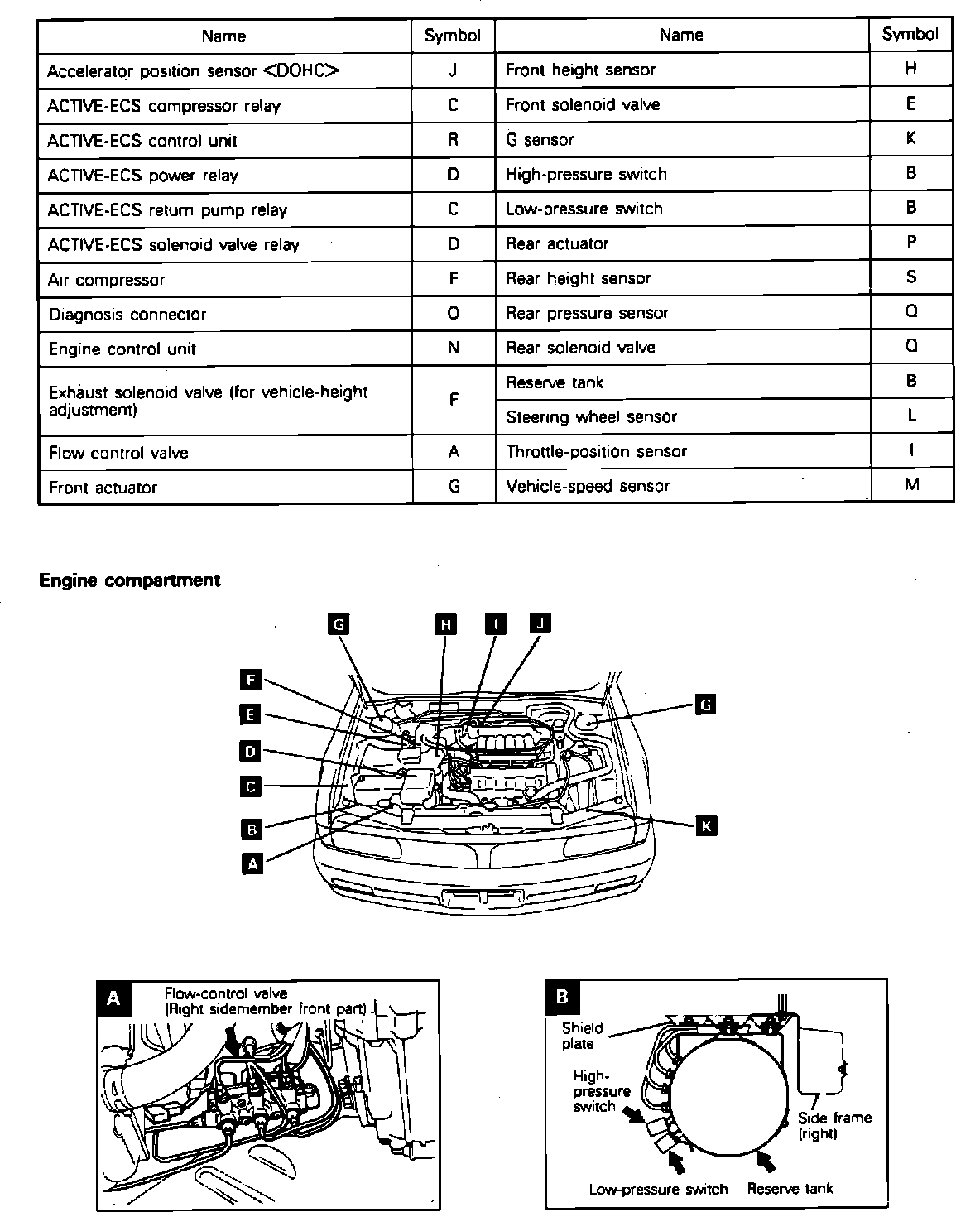

Active-Electronic Suspension Component Locations (Part 1 Of 2):

Active-Electronic Suspension Component Locations (Part 1 Of 2):

RH Side Rear Corner Of Engine Compartment
