Rear Toe-In

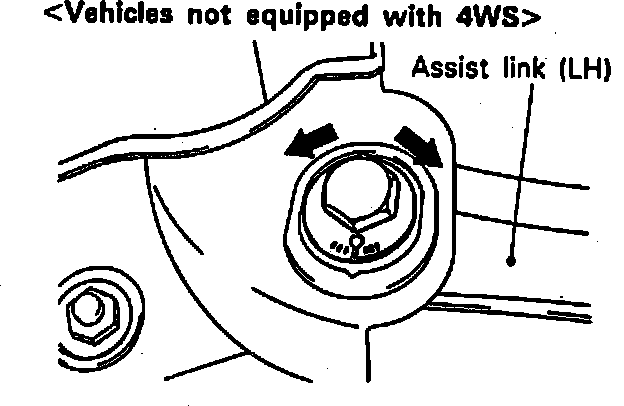

Fig. 3 Rear Toe-In Adjustment - 2 Wheel Steering:

2-WHEEL STEERING

Adjust rear toe-in by turning assist link mounting bolt an equal amount on both sides. Fig. 3.

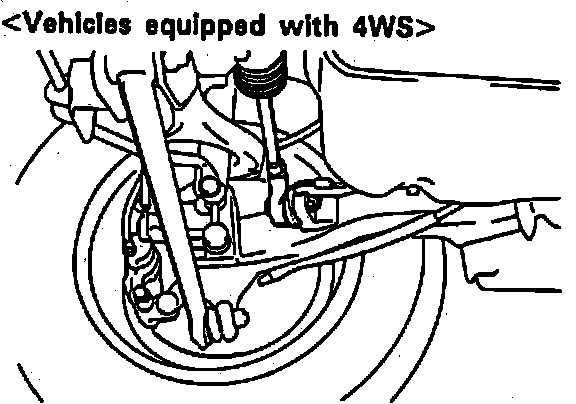

Fig. 4 Rear Toe-In Adjustment - 4 Wheel Steering:

4-WHEEL STEERING

Adjust rear toe-in by turning power cylinder tie rod screw an equal amount on both sides. Fig. 4.
