A/C - Revolution Pick-Up Sensor Check Correction

NO.: TSB-92-55-001
DATE: January, 1992
MODEL: 1992 Diamante

[TSB Revision TSB-92-55-001]

SUBJECT:
A/C REVOLUTION PICK-UP SENSOR - SERVICE MANUAL CORRECTION

PURPOSE

This Technical Service Bulletin provides a correction to the A/C revolution pick-up sensor resistance check shown in the service manual.

As a reference to this bulletin, write the TSB revision number in the TSB revision box located near the bottom of the affected service manual page.

AFFECTED SERVICE MANUAL 1992 Diamante, Volume 1, Page 55-48.

DESCRIPTION

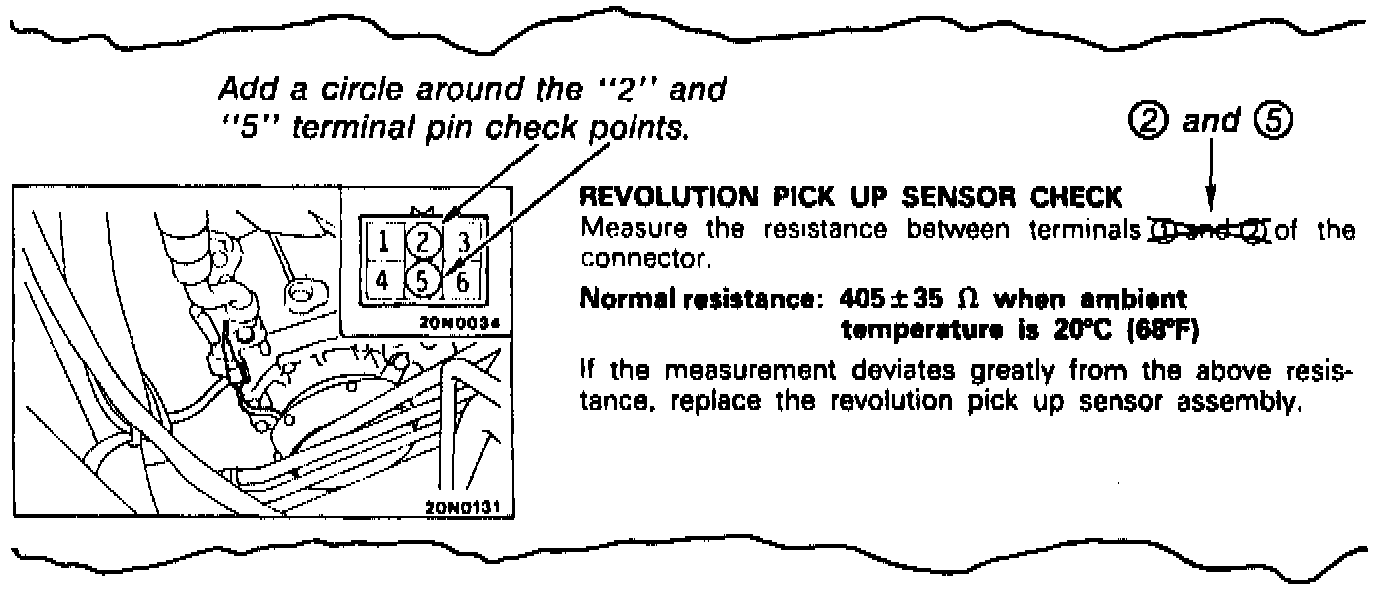

To perform a resistance check of the A/C revolution pick-up sensor, correct the terminal pin number references as shown in the example:
