Symptom Related Diagnostic Procedures

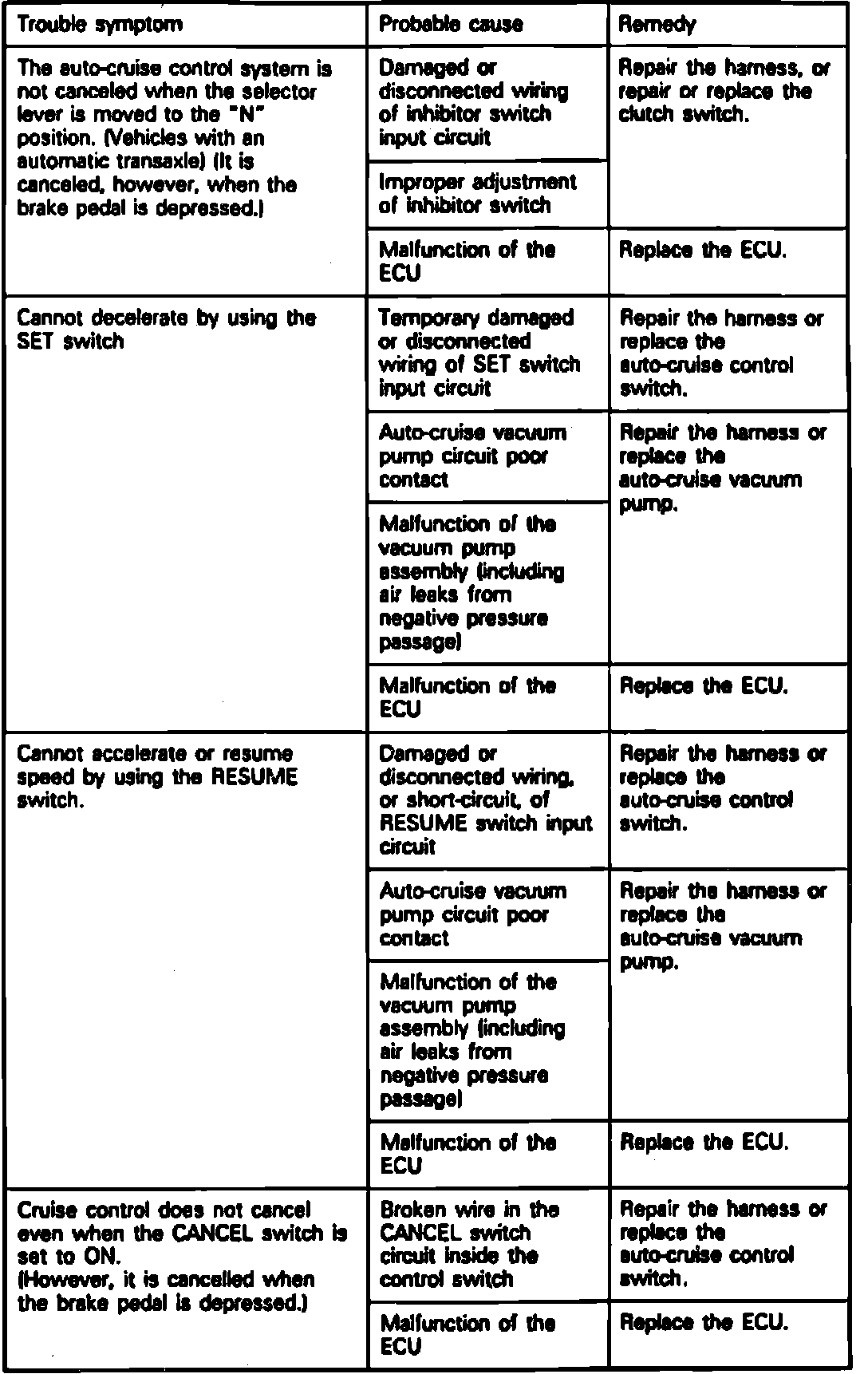

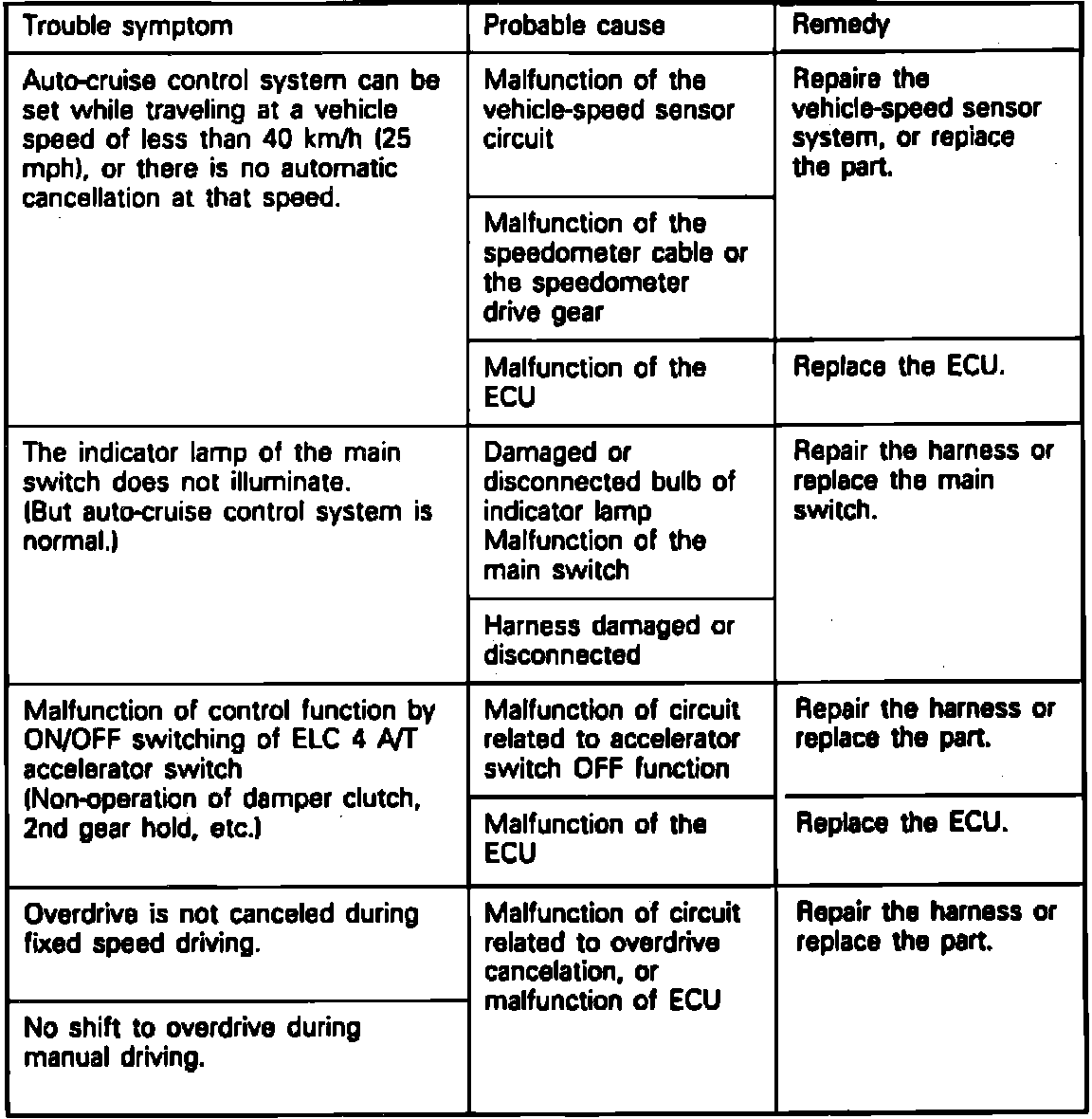

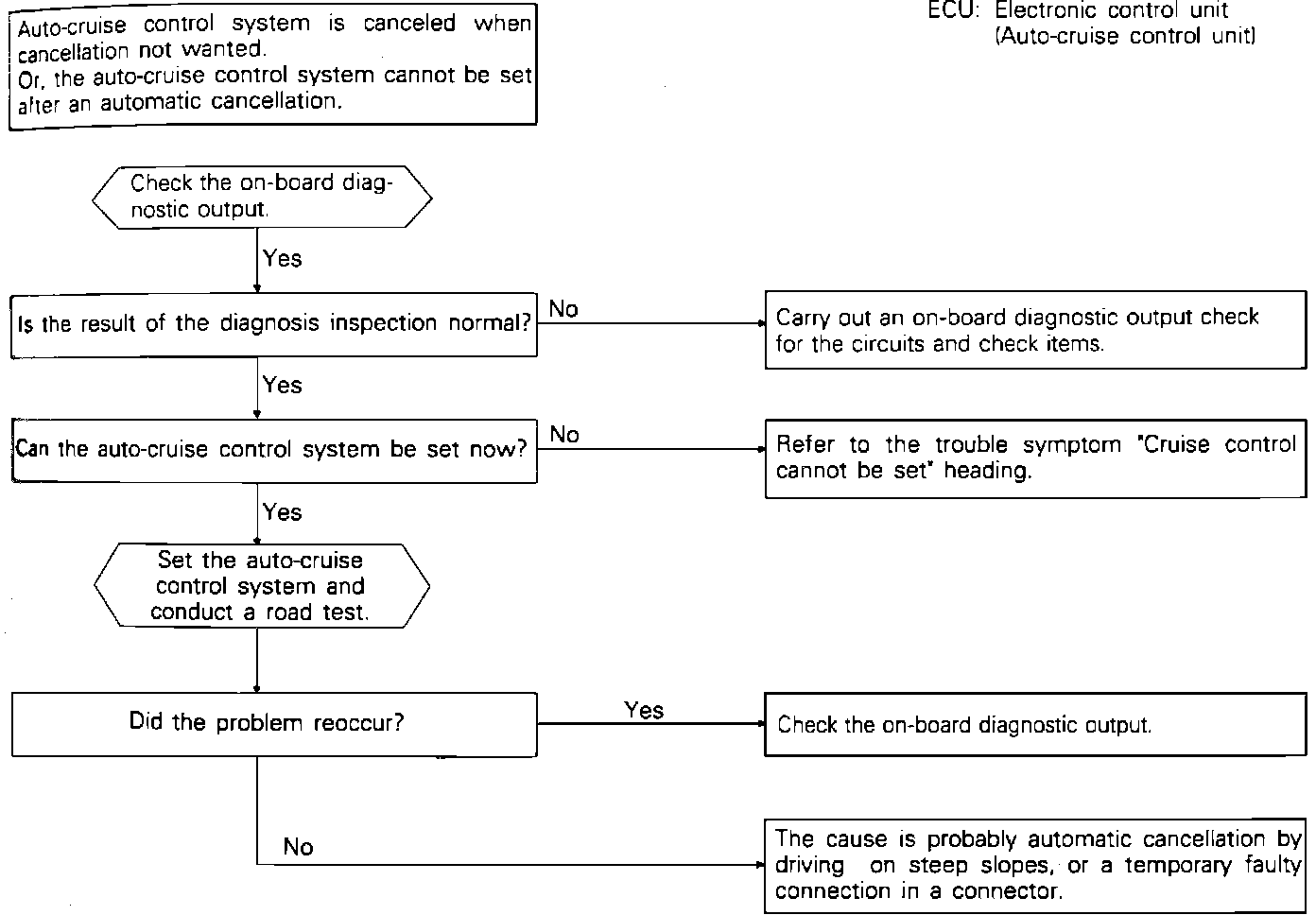

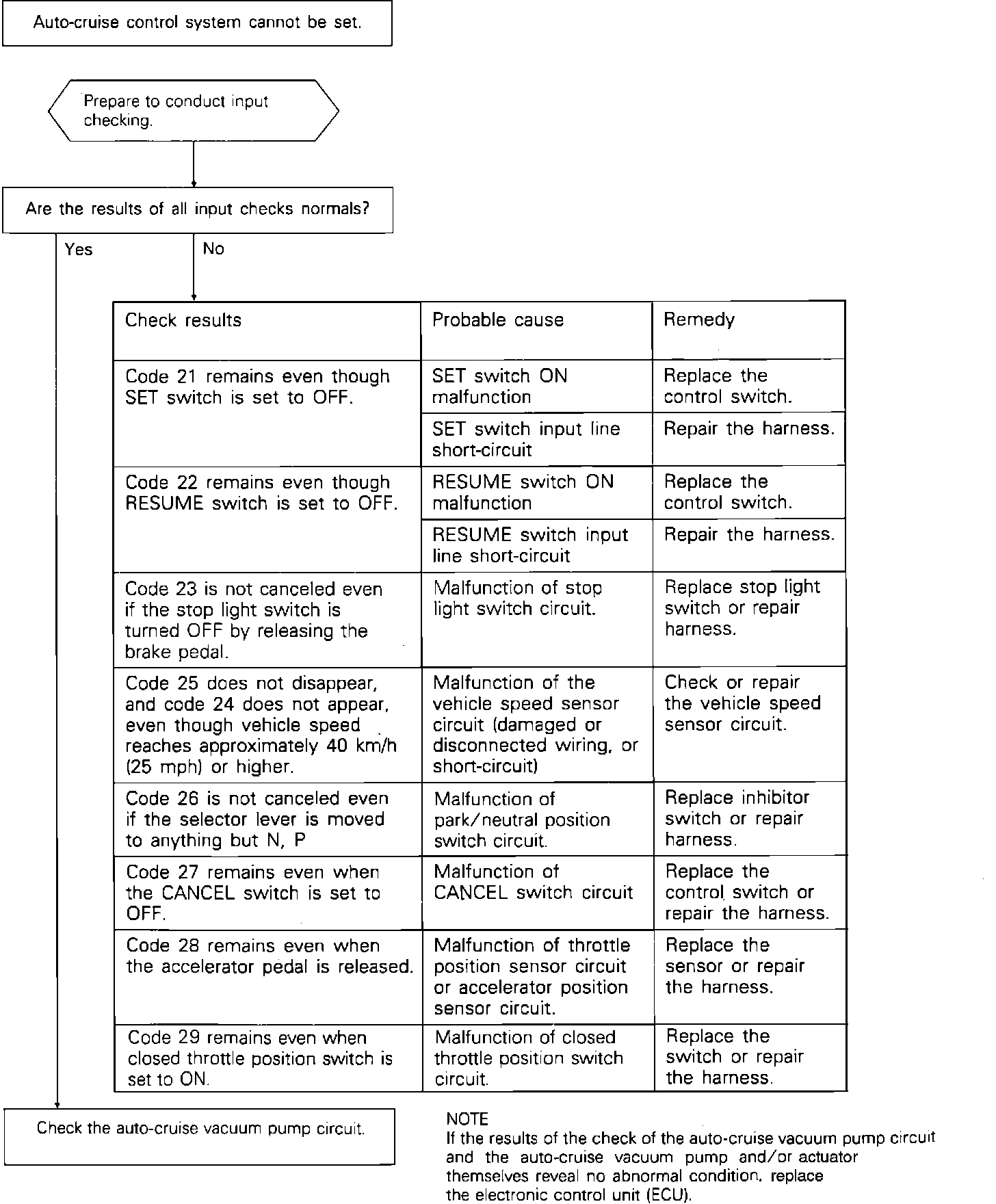

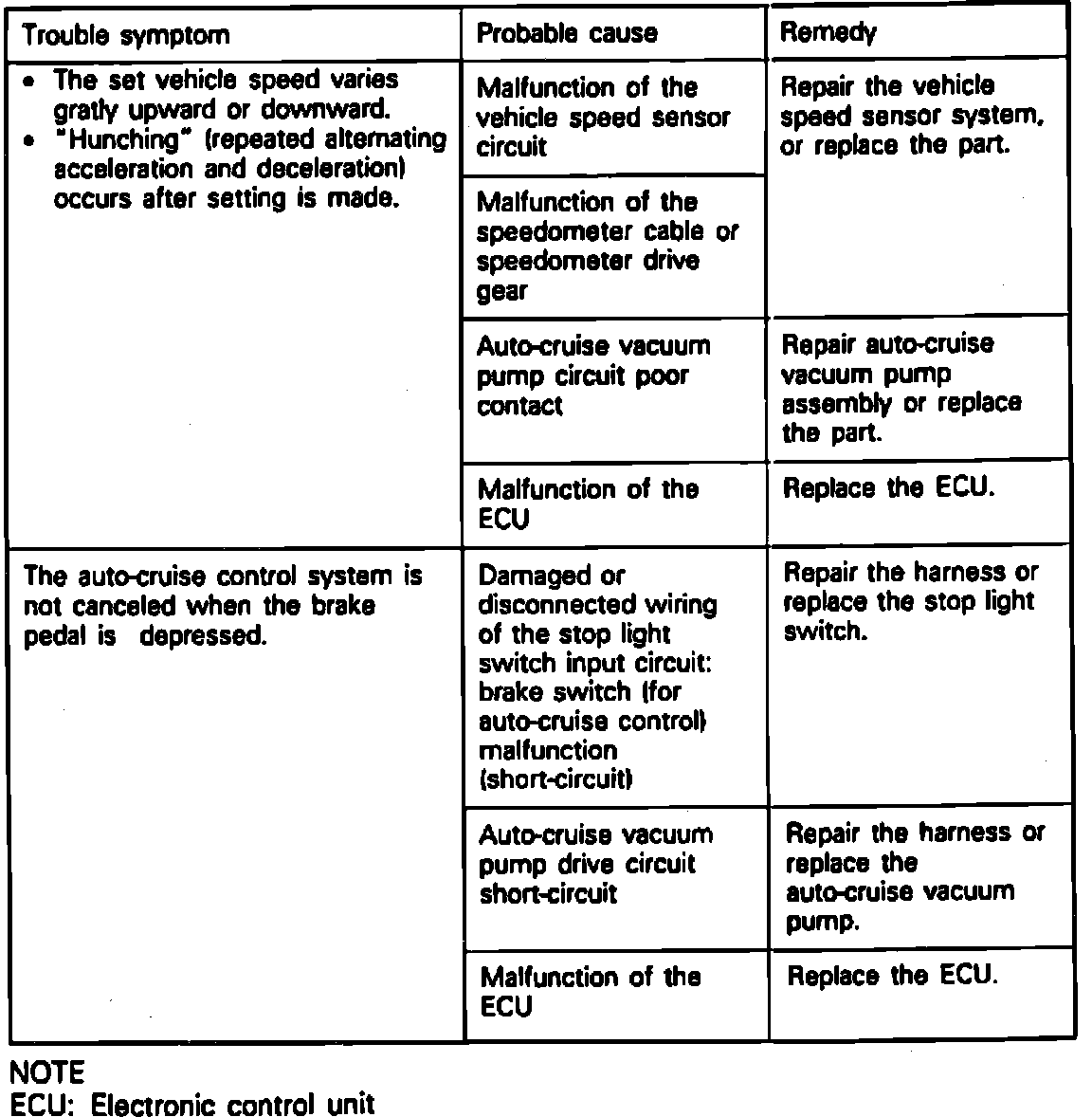

Fig. 12 Troubleshooting Flow Chart (Part 1 Of 5):

Fig. 12 Troubleshooting Flow Chart (Part 2 Of 5):

Fig. 12 Troubleshooting Flow Chart (Part 3 Of 5):

Fig. 12 Troubleshooting Flow Chart (Part 4 Of 5):

Fig. 12 Troubleshooting Flow Chart (Part 5 Of 5):
