Transmission Mount: Service and Repair

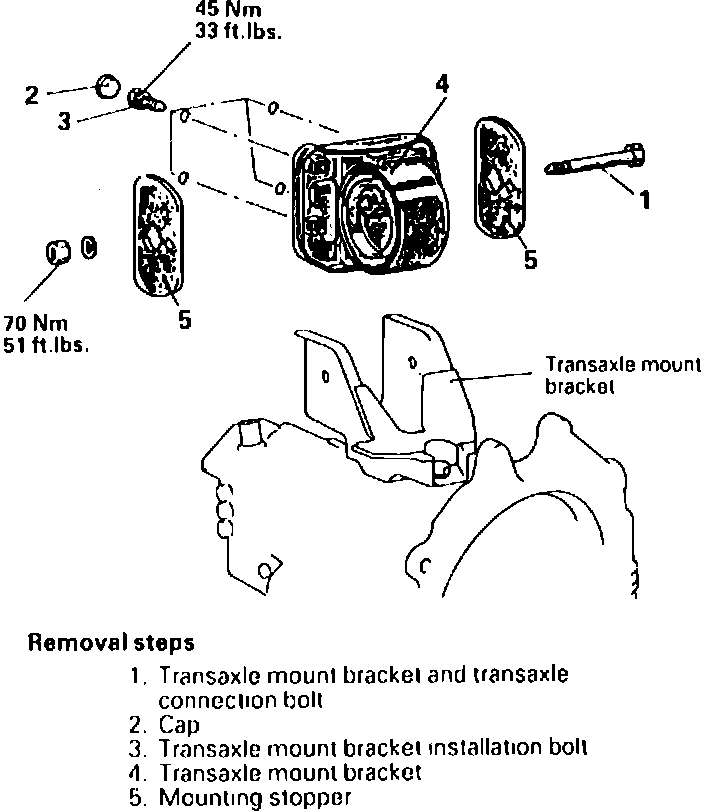

Fig. 3 Replacing Transaxle Mount:

Fig. 4 Installing Transaxle Mounting Stopper:

1. Raise and support transaxle to remove weight off mounts using suitable transmission jack.
2. Remove air cleaner assembly.
3. Replace transaxle mounts in numbered sequence shown in Fig. 3.
4. When installing mounts, attach transaxle mounting bracket so that arrow mark on mounting stopper is pointing toward the engine, Fig. 4.
