FWD Models

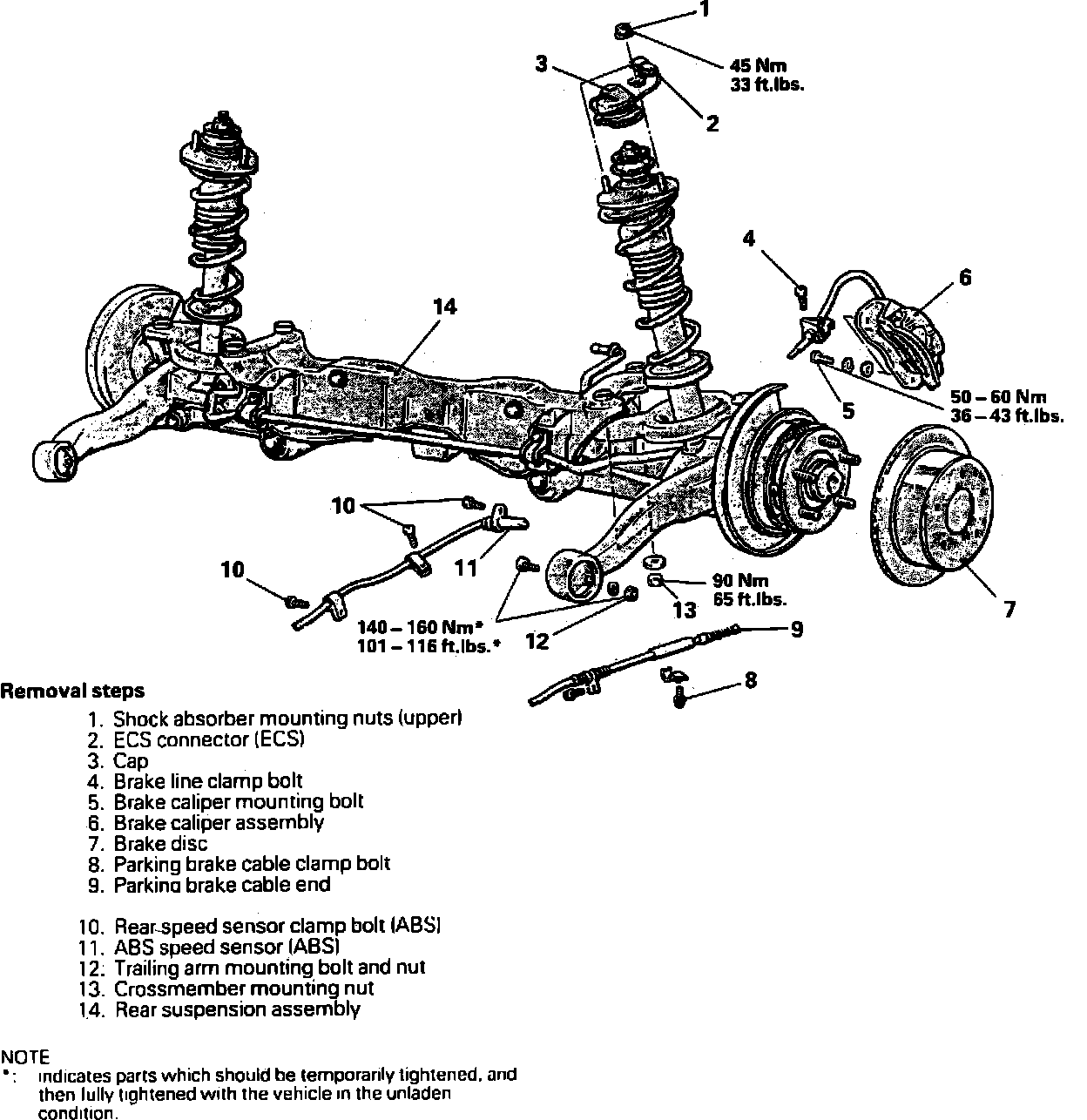

Fig. 13 Replacing Rear Suspension Assembly:

1. Raise and support vehicle, then remove rear wheels.
2. Remove shock absorber trim cover from inside luggage compartment.
3. Remove exhaust muffler assembly.
4. Remove rear suspension assembly in numbered sequence shown in Fig. 13, supporting crossmember with transmission jack, then remove crossmember mounting nut and rear suspension assembly.
5. Reverse procedure to install, noting the following:
a. Install exhaust muffler.
b. Verify rear wheel alignment.
c. Check parking brake operation.
d. Install shock absorber trim cover in luggage compartment.
