AWD Models

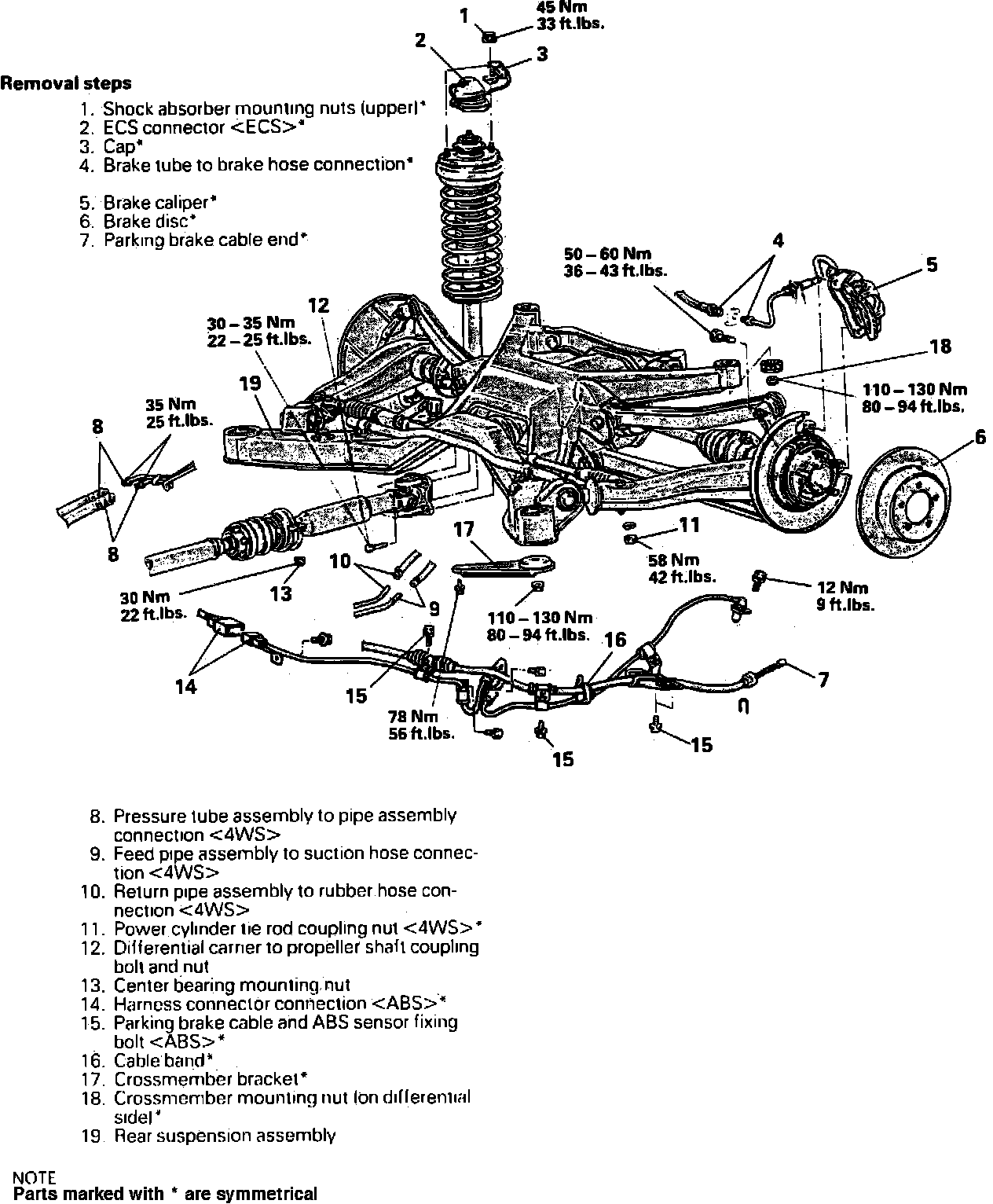

Fig. 14 Replacing Rear Suspension Assembly:

1. Remove shock absorber cover from luggage compartment.
2. Remove center exhaust pipe and main muffler.
3. Remove rear suspension in numbered sequence shown in Fig. 14, noting the following:
a. Before removing crossmember bracket, support differential case with a suitable transmission jack.
b. Remove crossmember mounting nuts and bolts.
c. Lower rear suspension down using two assistants to help support suspension on transmission stand. Rear suspension is very heavy and damage or personal injury could occur if rear suspension is not supported correctly.
4. Reverse procedure to install, noting the following:
a. Bleed power steering system as outlined under STEERING/MAINTENANCE PROCEDURES/BLEEDING POWER STEERING SYSTEM.
b. Check rear wheel alignment.
c. Check operation of parking brake.
