Home >> Mitsubishi >> 1992 >> 3000GT V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

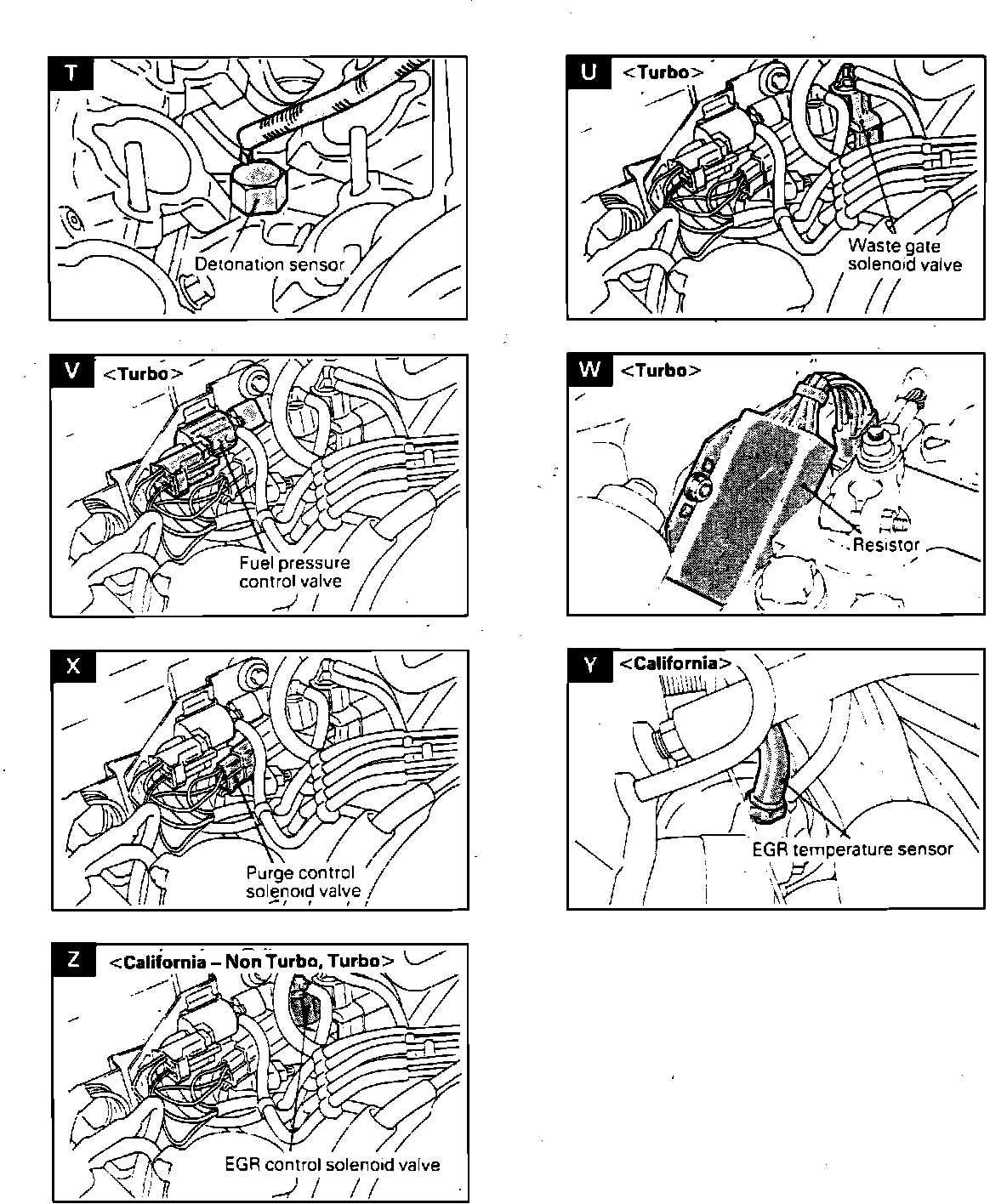

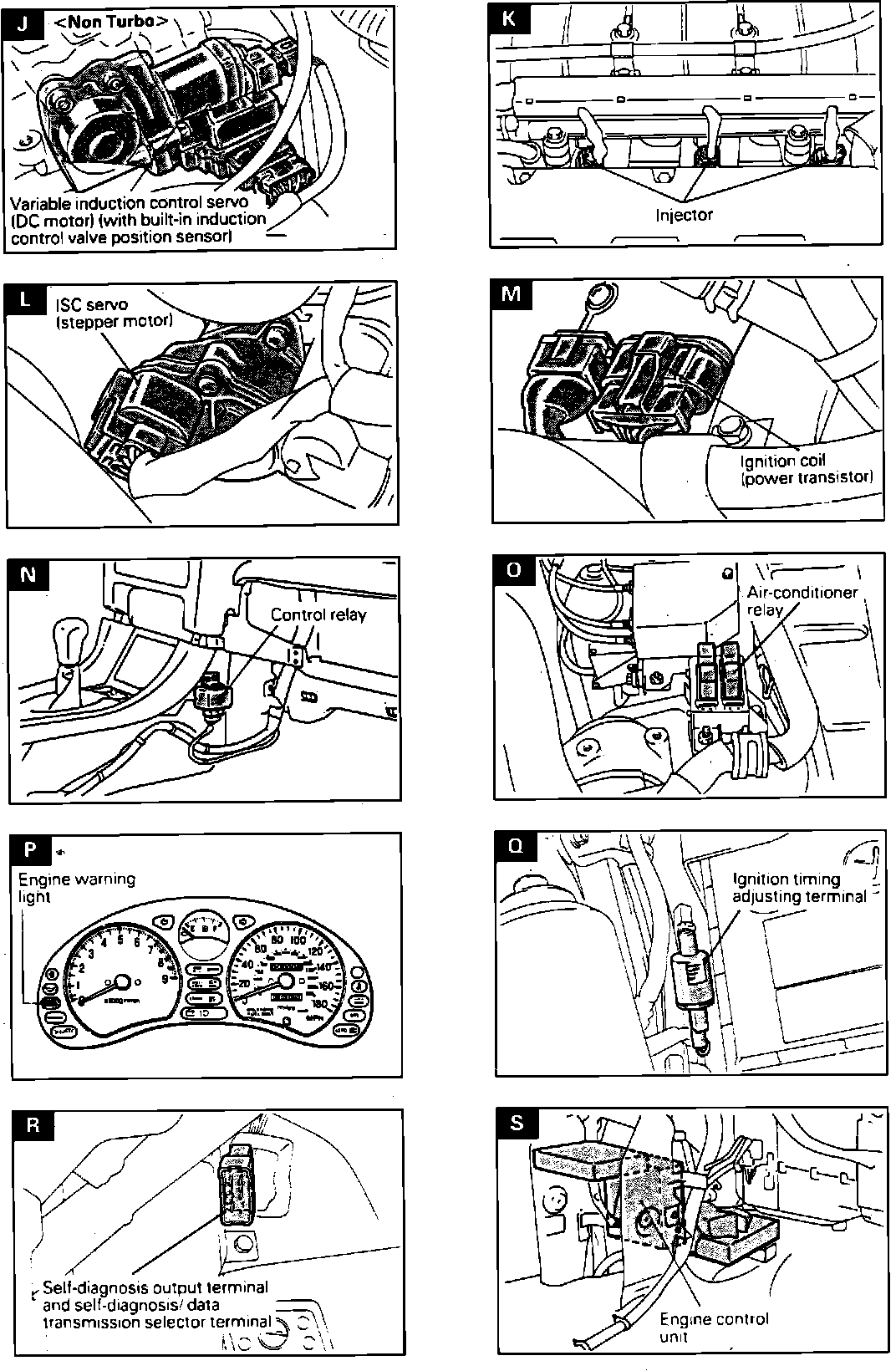

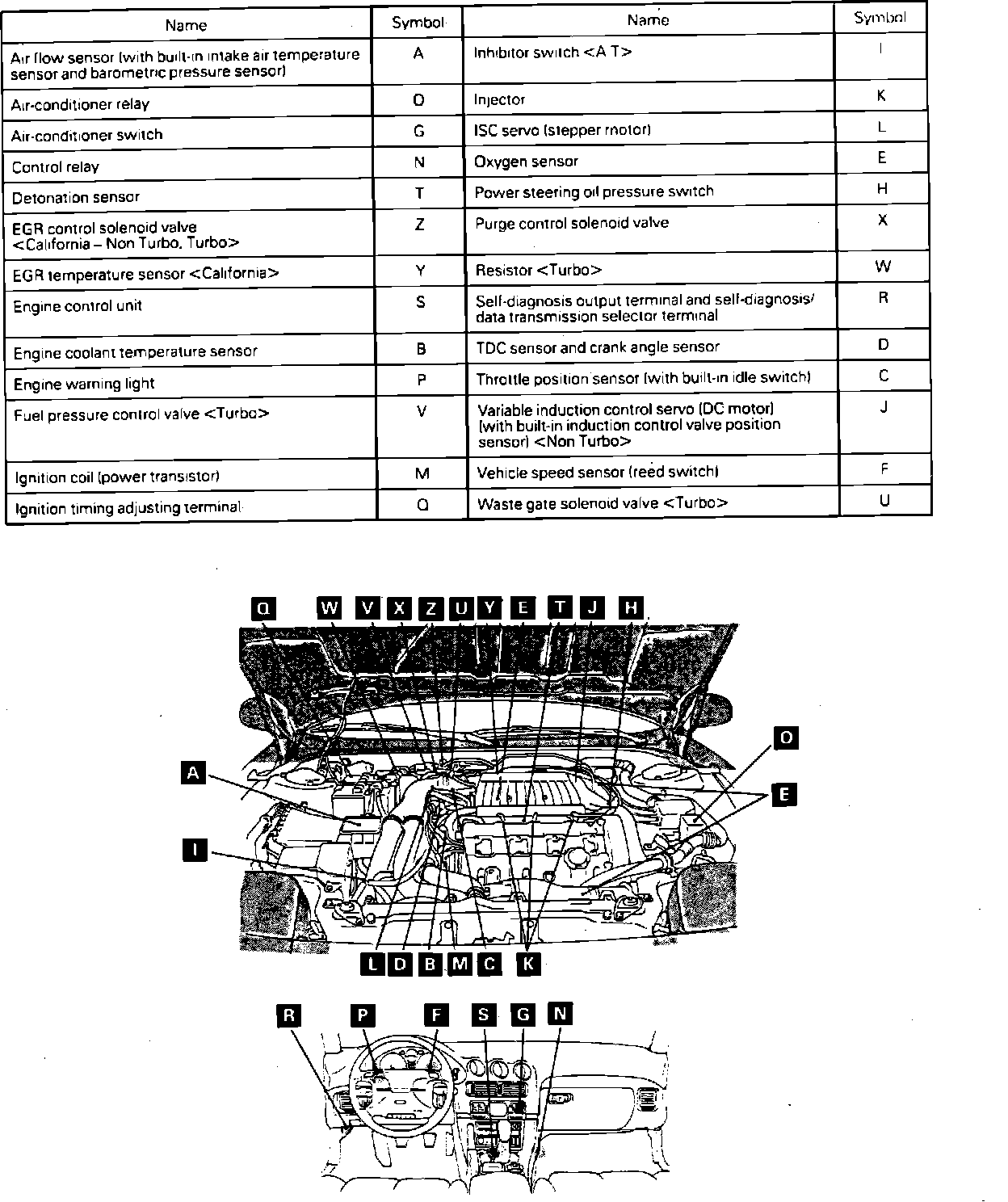

Fuel Injection System Component Locations (Part 1 Of 4):




Fuel Injection System Component Locations (Part 1 Of 4):




Fuel Injection System Component Locations (Part 1 Of 4):




Fuel Injection System Component Locations (Part 1 Of 4):




LH Side Of Transaxle
