Electrical Diagrams

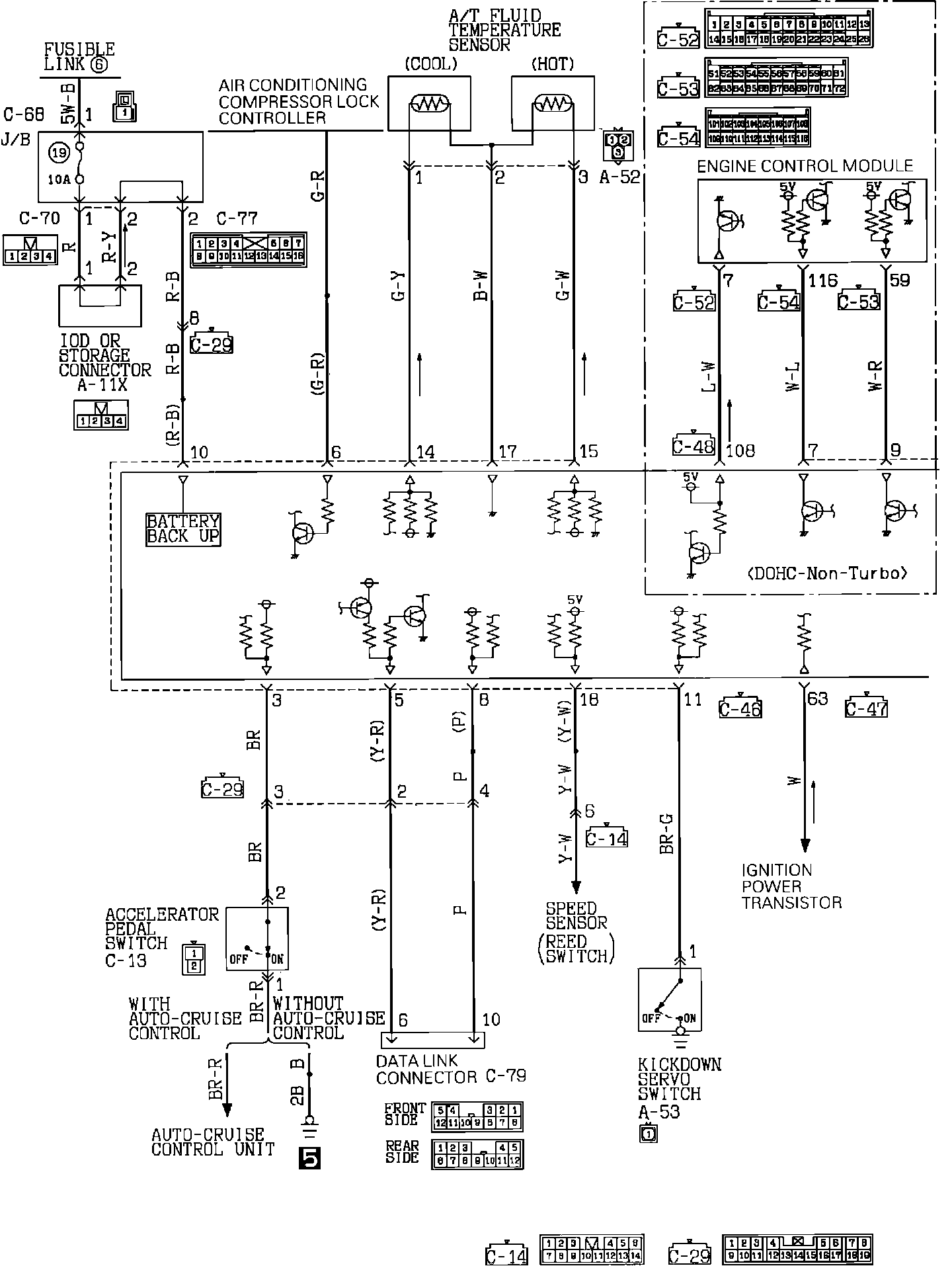

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

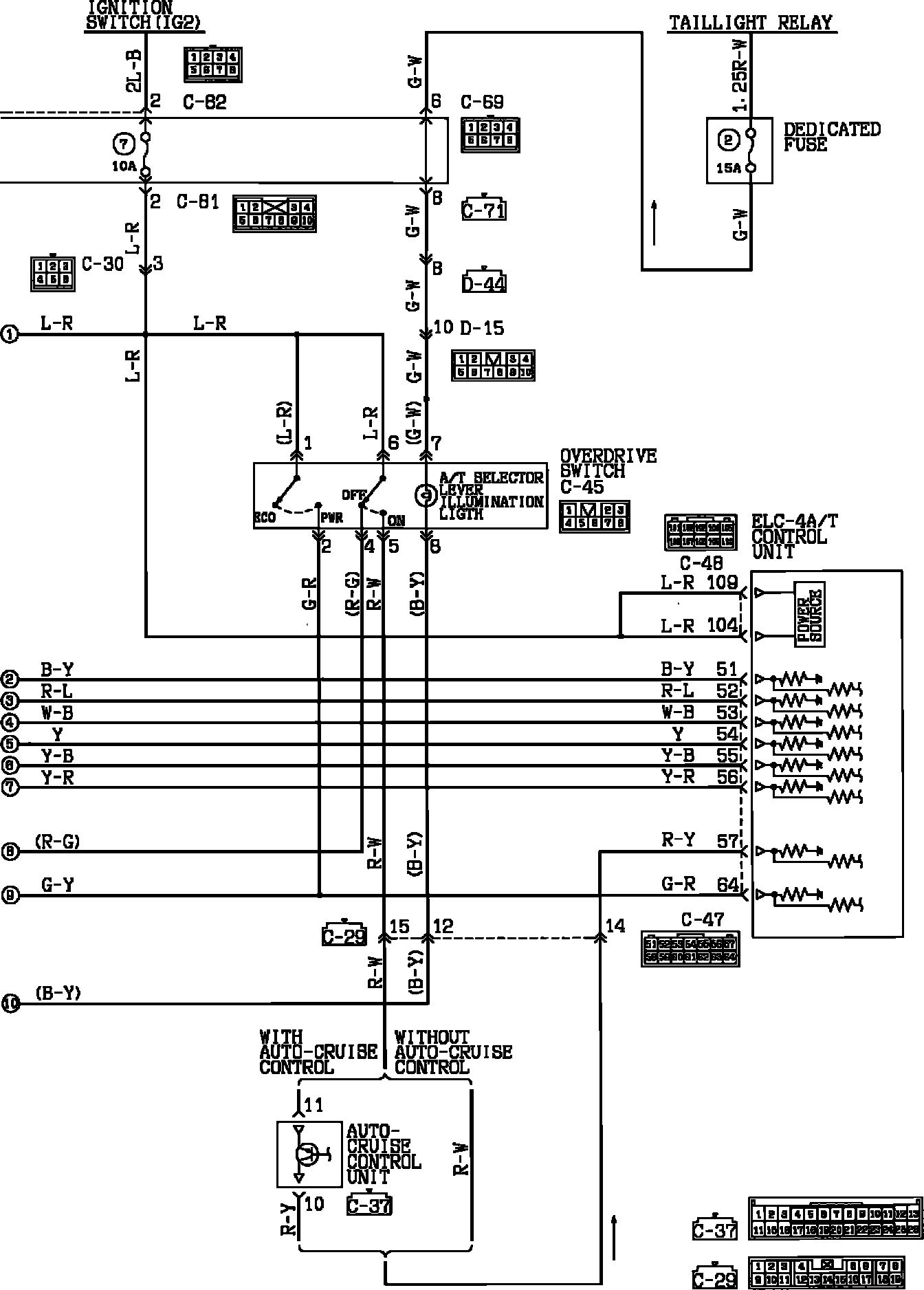

ELC-4 A/T:

ELC-4 A/T:
