Without Scan Tool

Caution:
(1) When battery voltage is low, no detection of failure is possible. Be sure to check the battery for voltage and other conditions before starting the test.
(2) Diagnostic item is erased if the battery or the engine control module connector is disconnected. Do not disconnect the battery before the diagnostic result is completely read.
(3) Be sure to connect or disconnect the scan tool with the ignition switch turned off. If the scan tool is disconnected with the ignition switch placed in the ON position, ABS diagnostic trouble code may be stored and ABS warning lamp turned on.

WHEN USING THE VOLTMETER

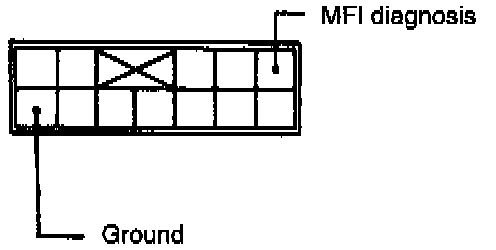

(1) Connect an analog voltmeter to the diagnostic output terminal (terminal 1) and ground terminal (terminal 12).
(2) Turn the ignition switch to ON.
(3) Read the diagnostic output indicated by the deflection of the voltmeter pointer.
(4) Repair the. problem location, referring to the diagnostic chart.
(5) Erase the diagnostic trouble code by the following procedure.
1) Turn the ignition switch to OFF.
2) After removing the battery cable from the battery terminals for 10 seconds or more, reconnect the cable.
3) Turn the ignition switch to ON and take a reading of the diagnostic output to check if a normal code is output.
4) With the engine warmed up, idle the engine for approx. 15 minutes.
