California

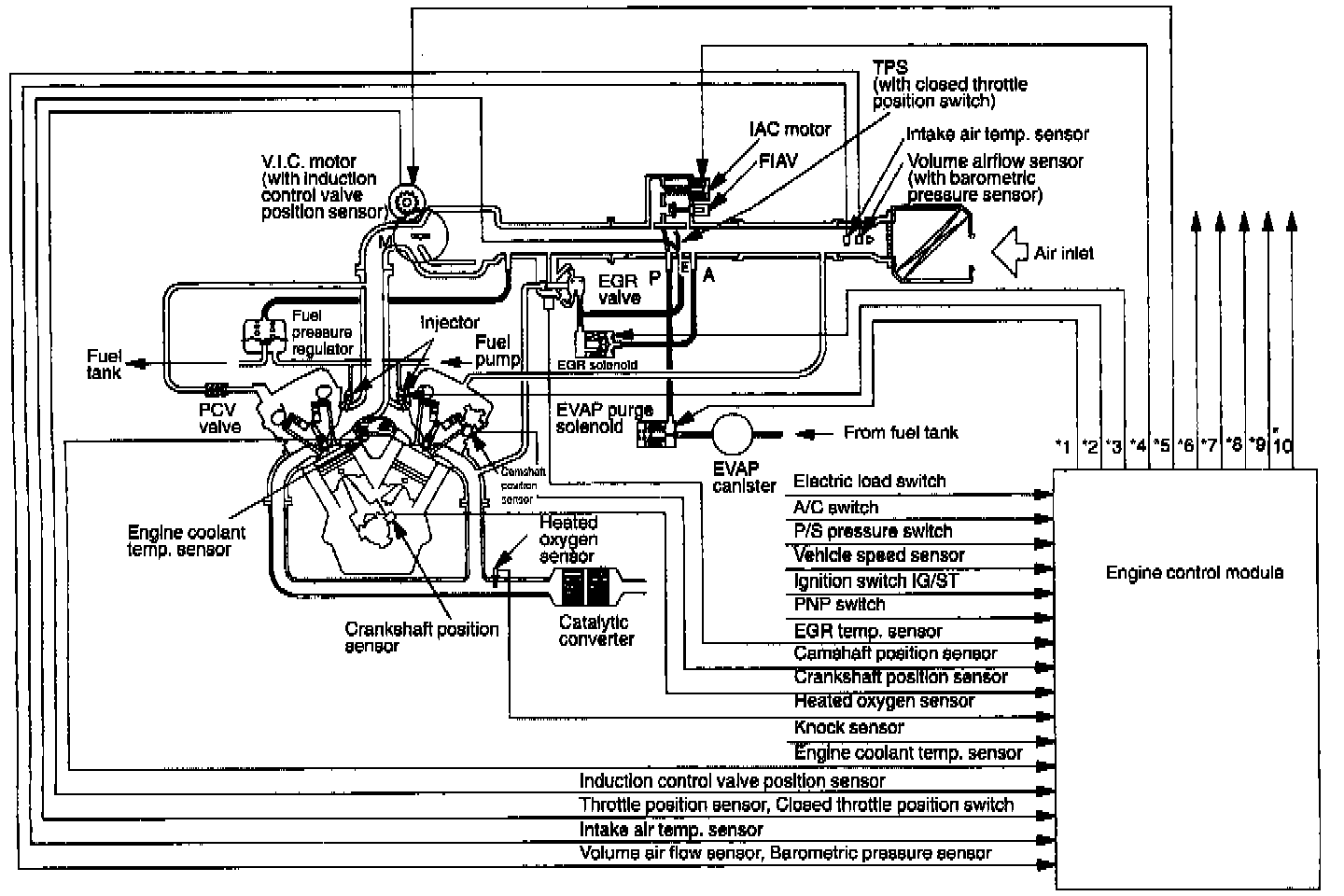

NOTE:
*1: EVAP purge solenoid
*2: Injector
*3: EGR solenoid
*4: Idle air control motor
*5: Variable induction control motor *6: A/C compressor clutch relay
*7: Fuel pump relay
*8: Ignition coil
*9: Check engine/malfunction indicator lamp
*10: Engine/transaxle total control
