A/C - Reduction In Refrigerant Quantity
NO.: TSB-92-55-002DATE: July, 1992
MODEL: 1992 3000GT
[TSB Revision TSB-92-55-002]
SUBJECT:
REDUCTION IN REFRIGERANT QUANTITY - SERVICE MANUAL UPDATE
PURPOSE
This Technical Service Bulletin describes a reduction in refrigerant quantity for some 1992 3OOOGT vehicles. Because of this change, the 1992 3OOOGT Service Manual must be updated.
As a reference to this TSB, write the TSB revision number in the TSB Revision box located near the bottom of each affected service manual page.
AFFECTED VEHICLES
1992 3OOOGT (Vehicles produced after October 15, 1991.)
AFFECTED SERVICE MANUALS
1992 3OOOGT, Volume 1, Pages 55-3 and 55-36.
1992 3OOOGT, Volume 1 and 2, Specs-At-A-Glance
(Located on the rear cover of the service manual.)
DESCRIPTION
To help decrease the amounts of R-12 refrigerant in the atmosphere, the A/C system on the 1992 3OOOGT continues to evolve with more efficient, smaller components needing less refrigerant. Formerly the A/C system held approximately 960g (34 oz.). On 1992 3OOOGTs produced after October 15, 1991, the refrigerant quantity was decreased to approximately 800g (29 oz.).
In addition, the A/C receiver was reduced in size, and the shape of the receiver bracket was changed.
As shown in the following examples, update the service manual to reflect these changes.

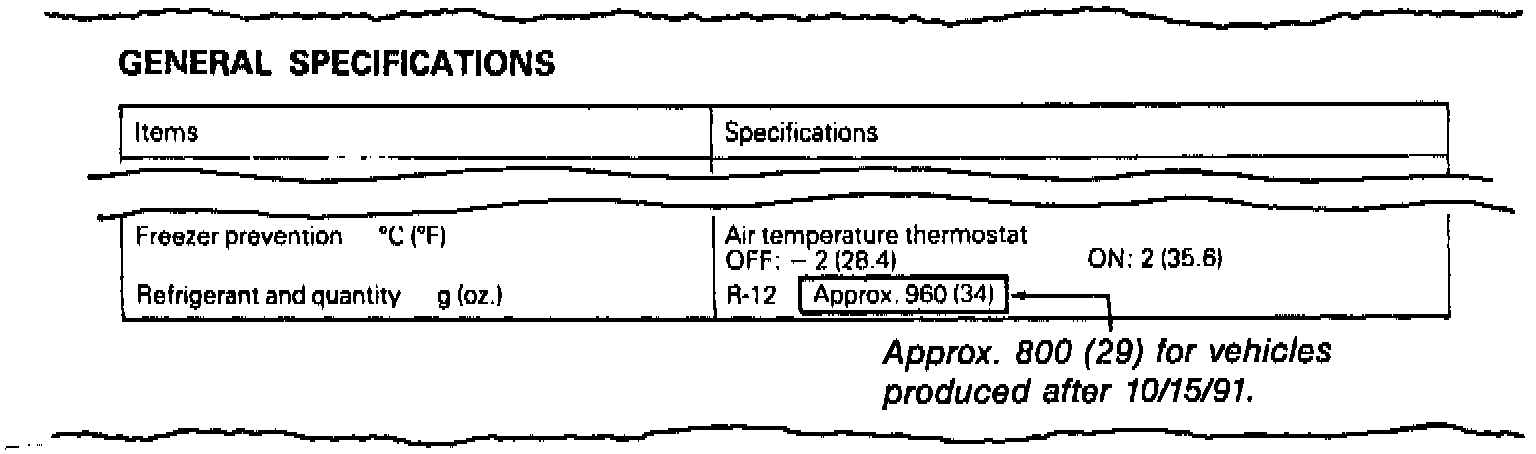

1992 3OOOGT, Volume 1, Page 55-3:
Update the refrigerant quantity for vehicles produced after 10/15/91.

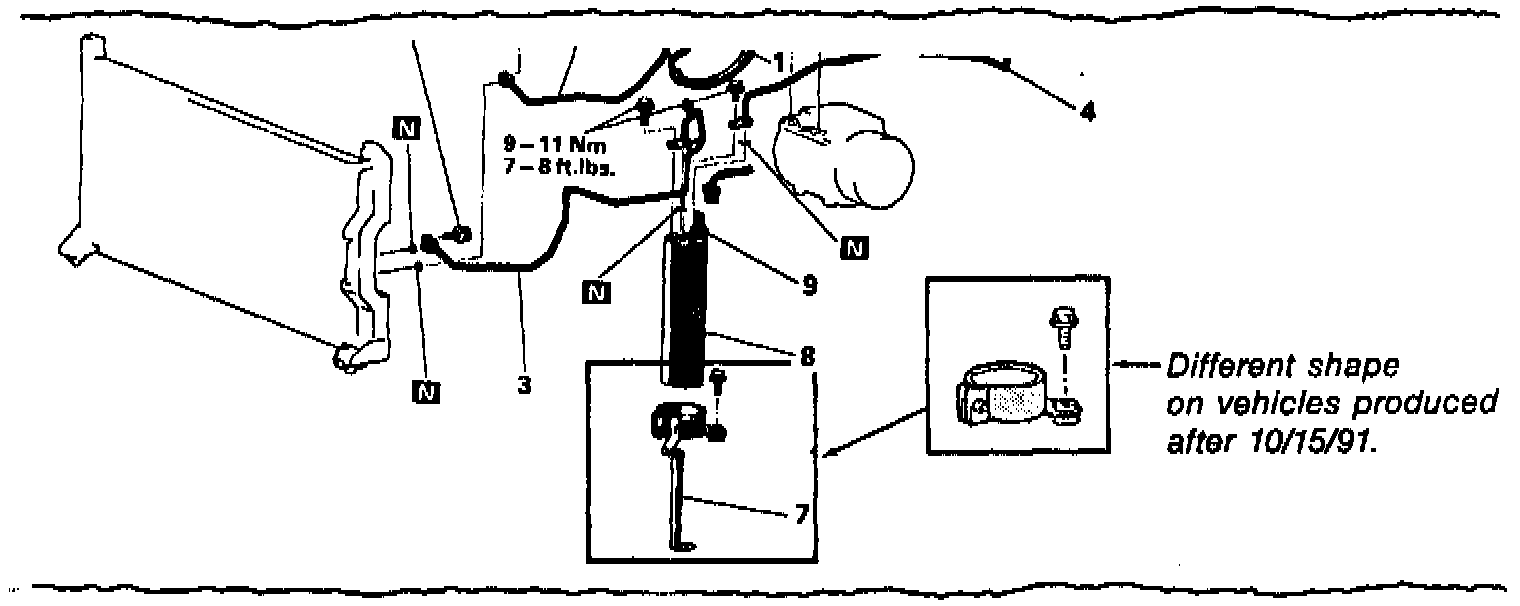

1992 3OOOGT, Volume 1, Page 55-36:
Indicate the different shape of the receiver bracket for vehicles produced after 10/15/91.

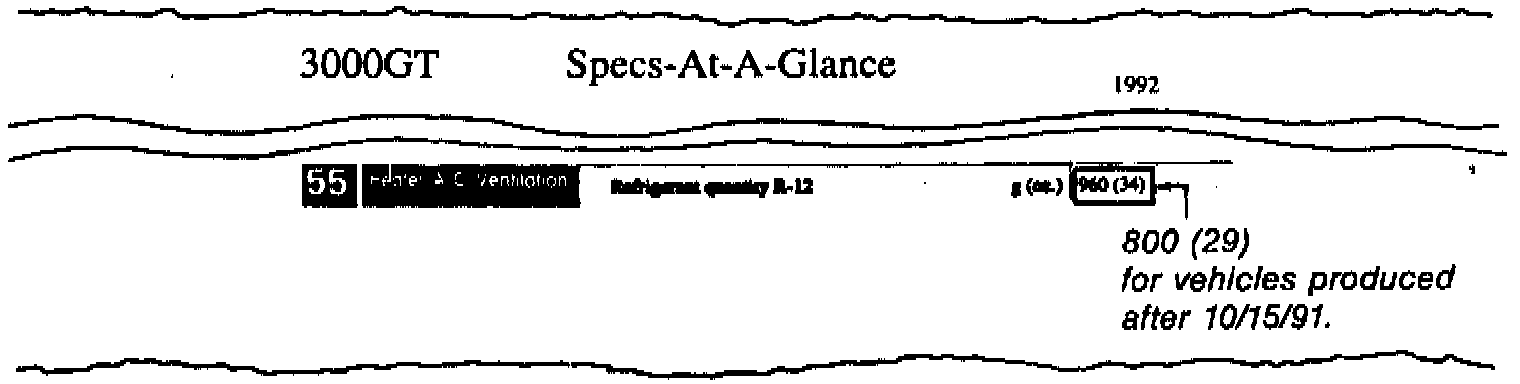

1992 3OOOGT, Volume 1 and 2, Specs-At-A-Glance
(Located on the rear cover of the service manual): Update the refrigerant quantity for vehicles produced after 10/15/91.
