Home >> Mitsubishi >> 1992 >> 3000GT V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry >> Without Keyless Entry System

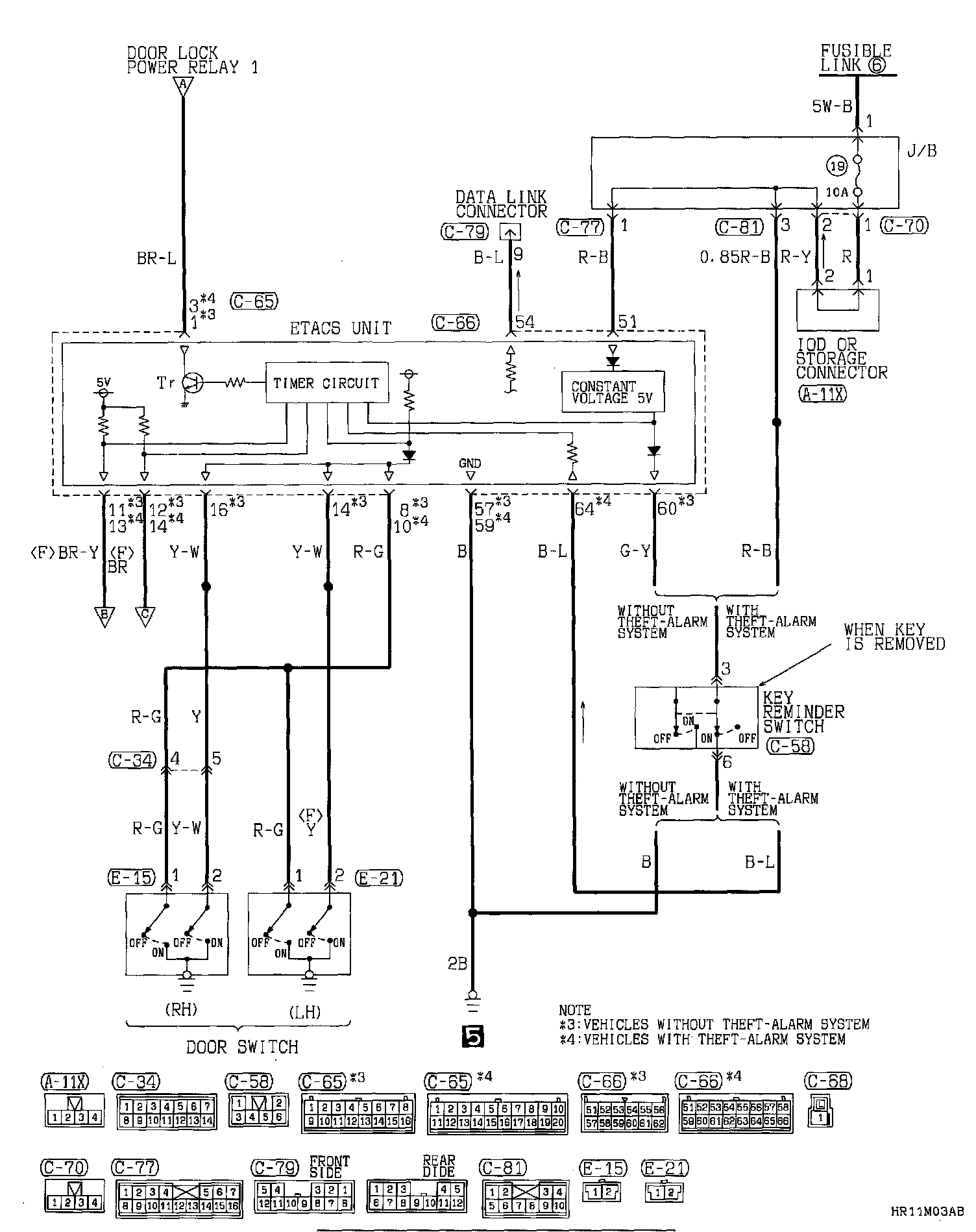

Without Keyless Entry System

Part 1 Of 2:



Part 2 Of 2:
