Home >> Mitsubishi >> 1992 >> 3000GT V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Manual Transaxle

Manual Transaxle

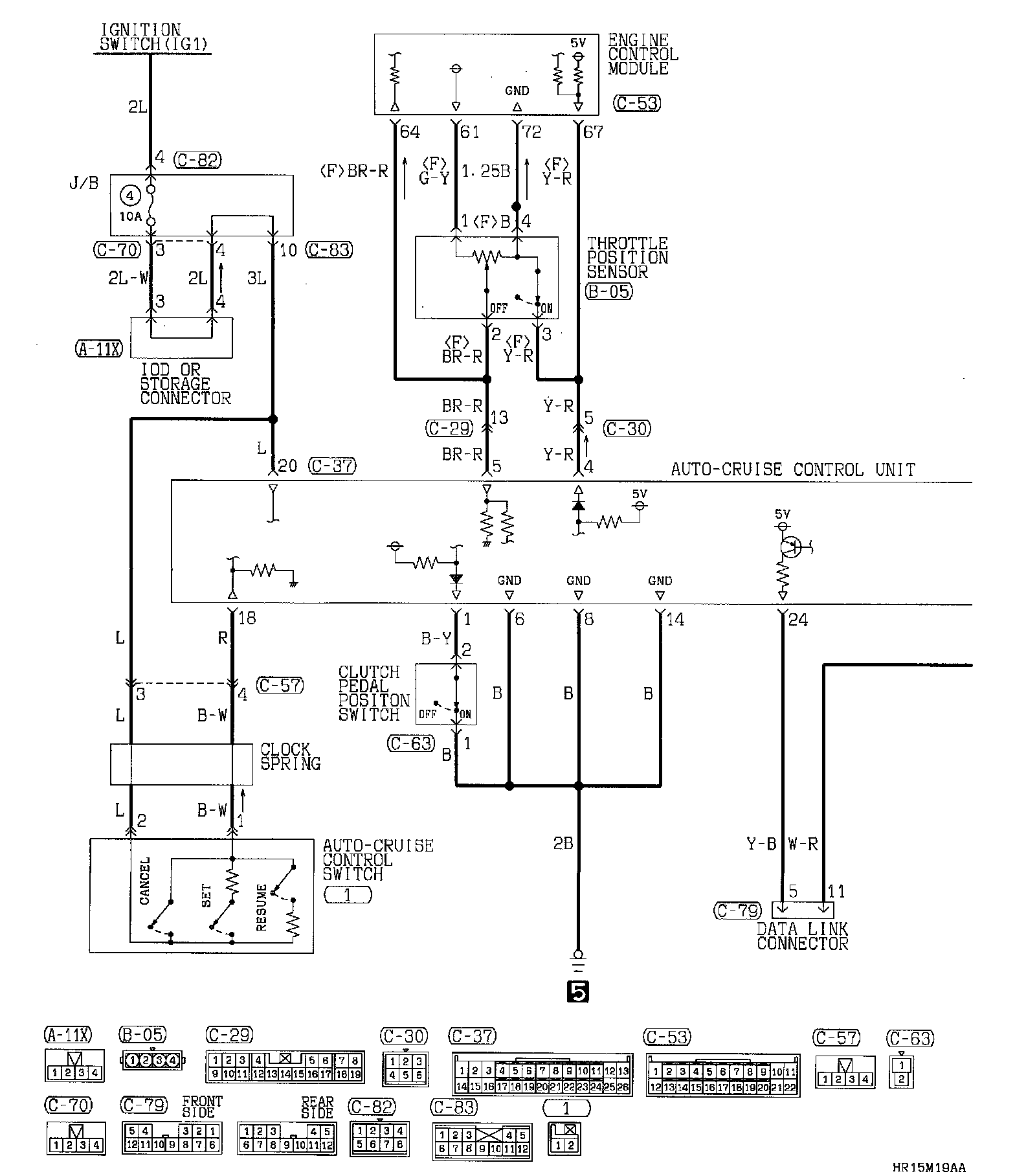

Part 1 Of 3:

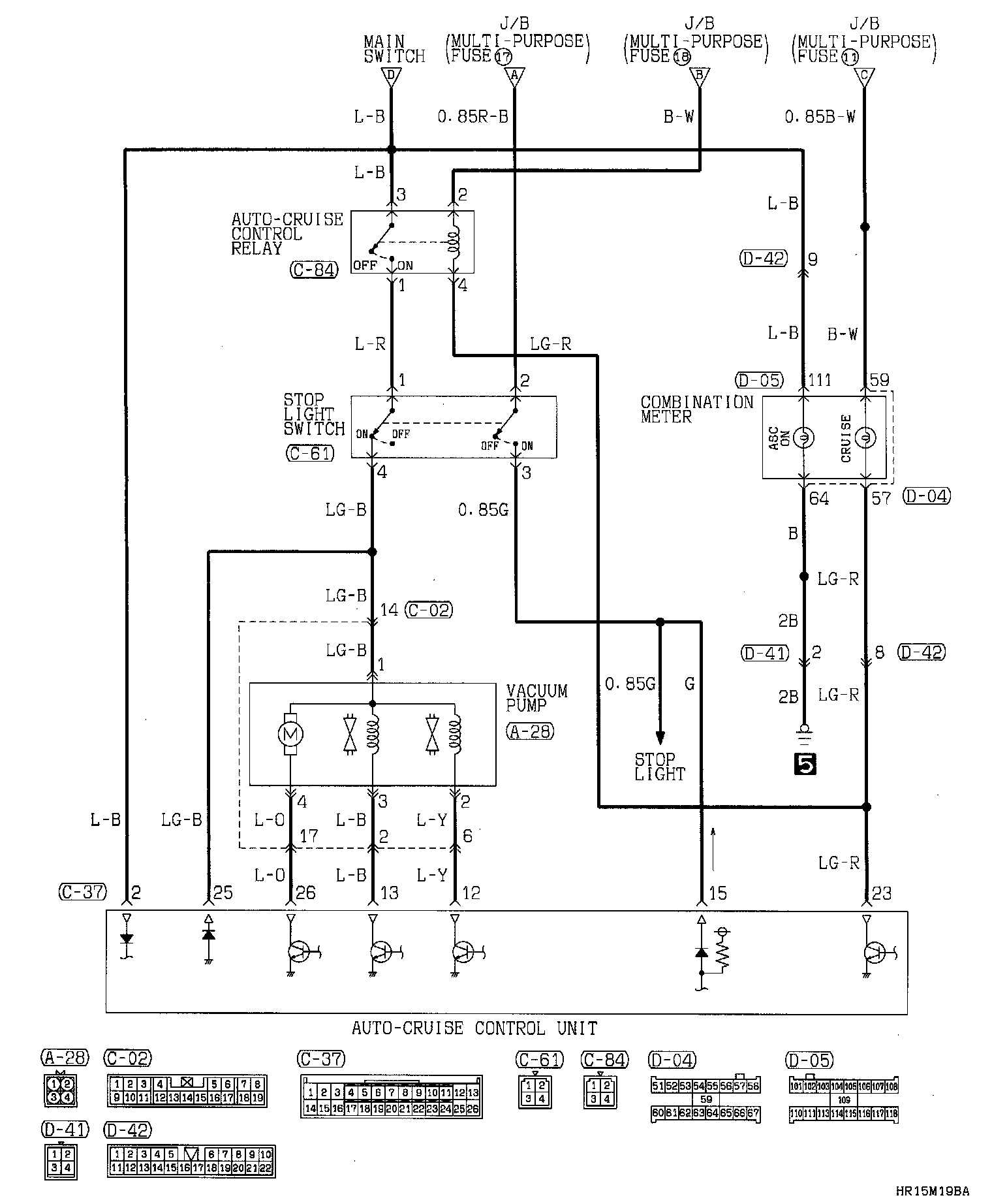

Part 2 Of 3:

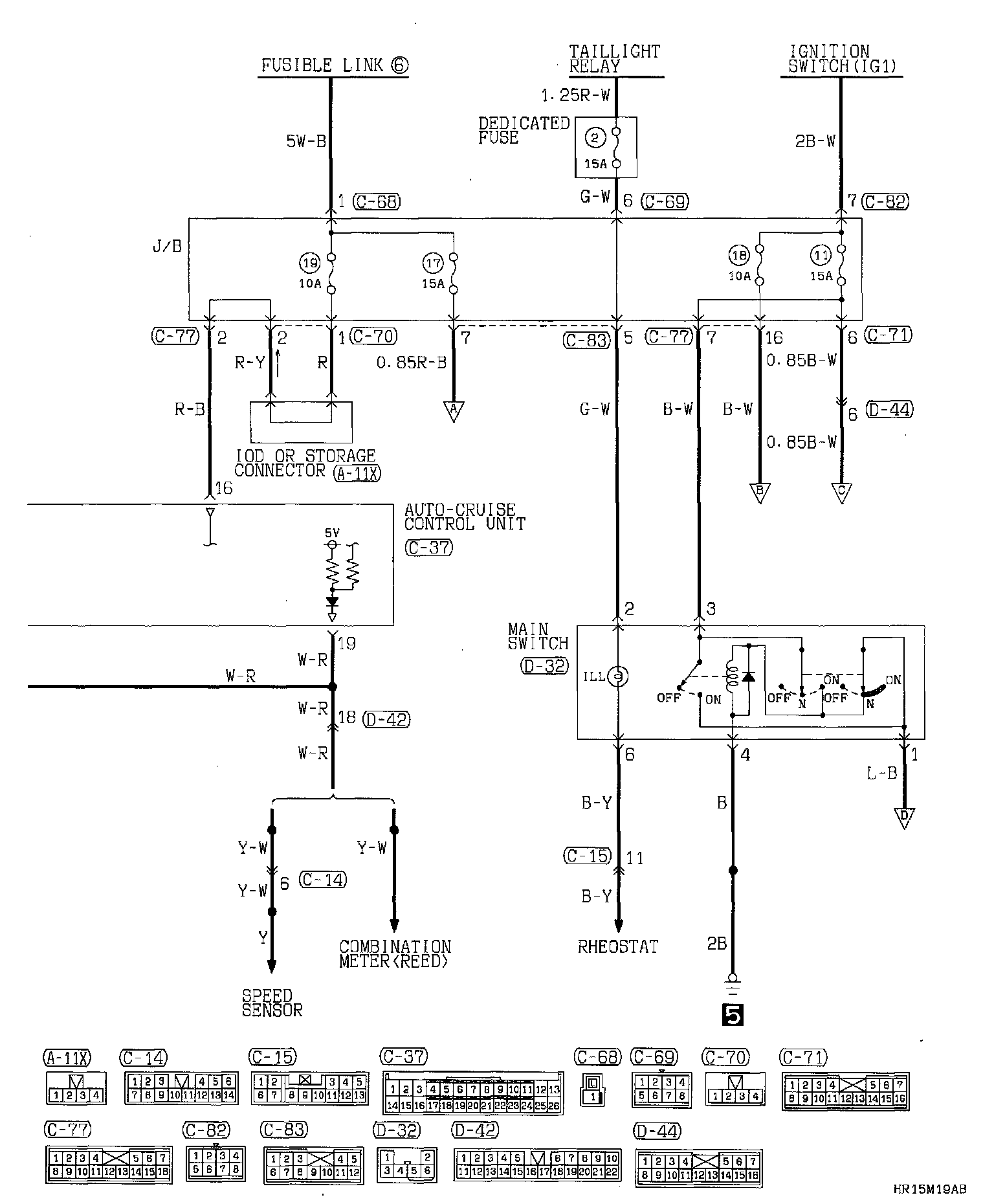

Part 3 Of 3:
