Brakes - ABS Speed Sensor Resistance Revision

NO.: TSB-92-35-009
DATE: August, 1992
MODEL: 1992 3000GT

SUBJECT:
ABS SPEED SENSOR RESISTANCE - SERVICE MANUAL REVISION

PURPOSE

This bulletin corrects the front and rear Anti-Lock Brake (ABS) wheel speed sensor internal resistance values for Front Wheel Drive vehicles shown in the 1992 3OOOGT service manual. The correct resistance values are: Front - 0.8 to 1.2 kOhms; Rear - 0.6 to 0.8 kOhms.

As shown in this bulletin please make the indicated service manual revisions and as reference to this bulletin please write this TSB number in the TSB revision box on the affected service manual page.

AFFECTED SERVICE MANUAL

1992 3OOOGT, volume 1, page 35-90.

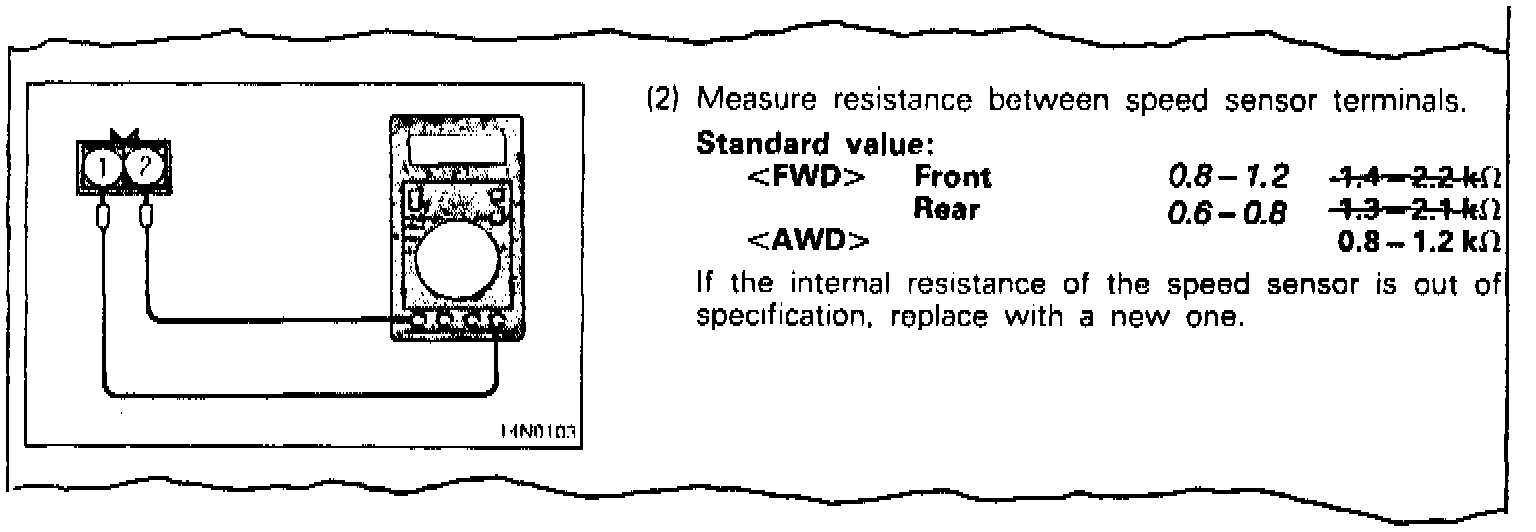

SERVICE MANUAL REVISION





As shown, please cross out the FWD resistance values and write in:

"0.8 - 1.2" next to the front specification,
"0.6 - 0.8" next to the rear specification.
