A/T Technical Data

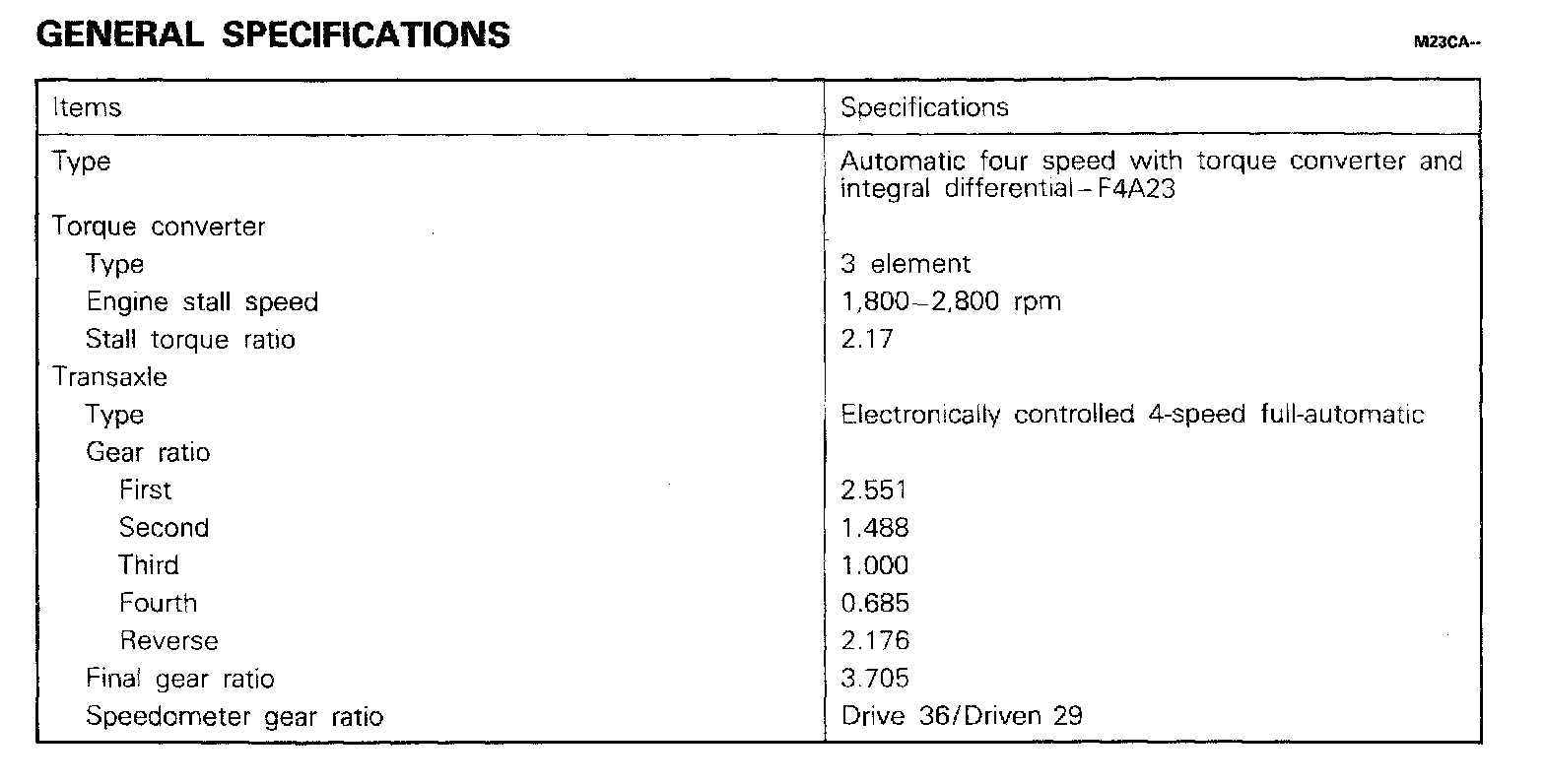

F4A23 4-spsd A/T, Gear Ratios:

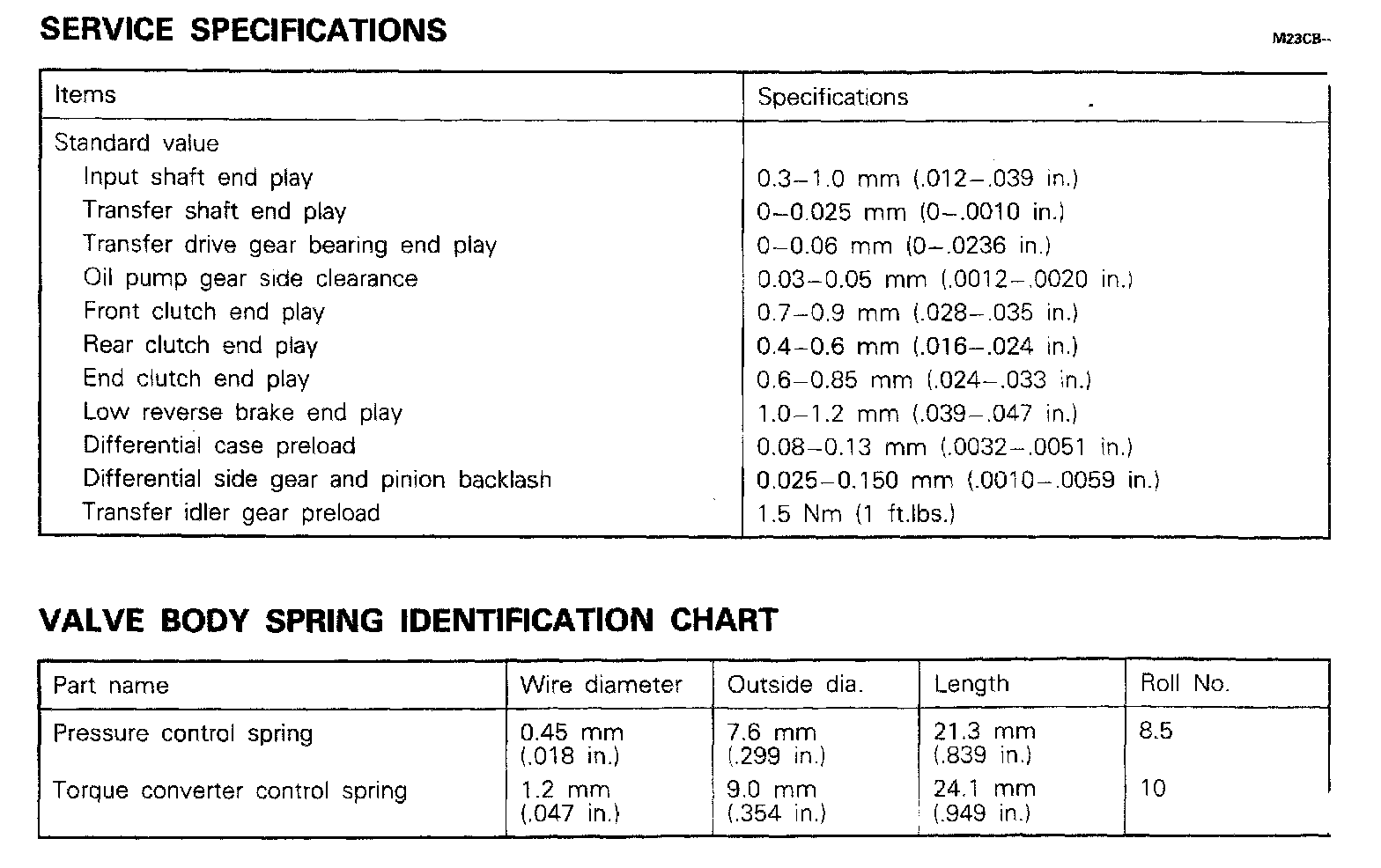

F4A23 4-spd A/T, Standard Values & Valve Body Spring Chart:

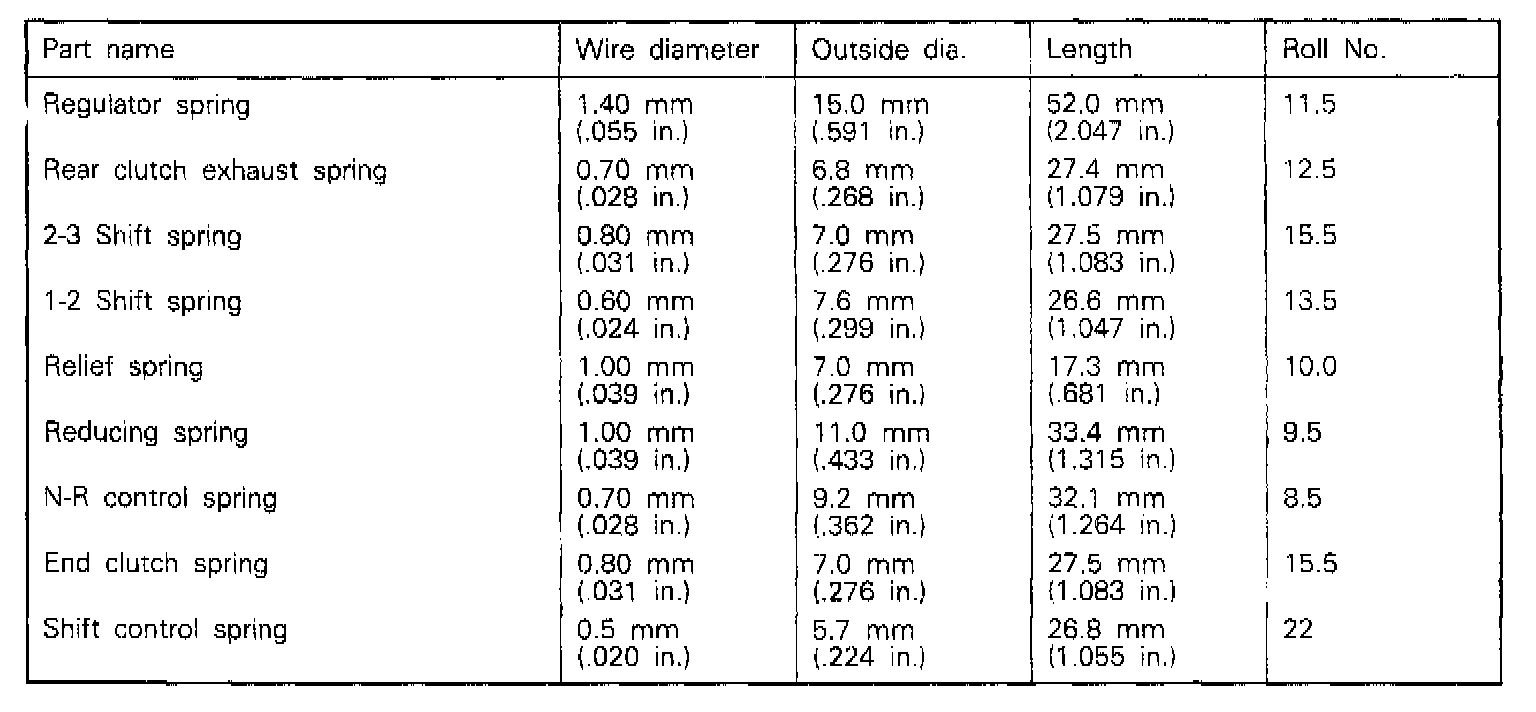

F4A23 4-spd A/T, Value Body Spring Table:

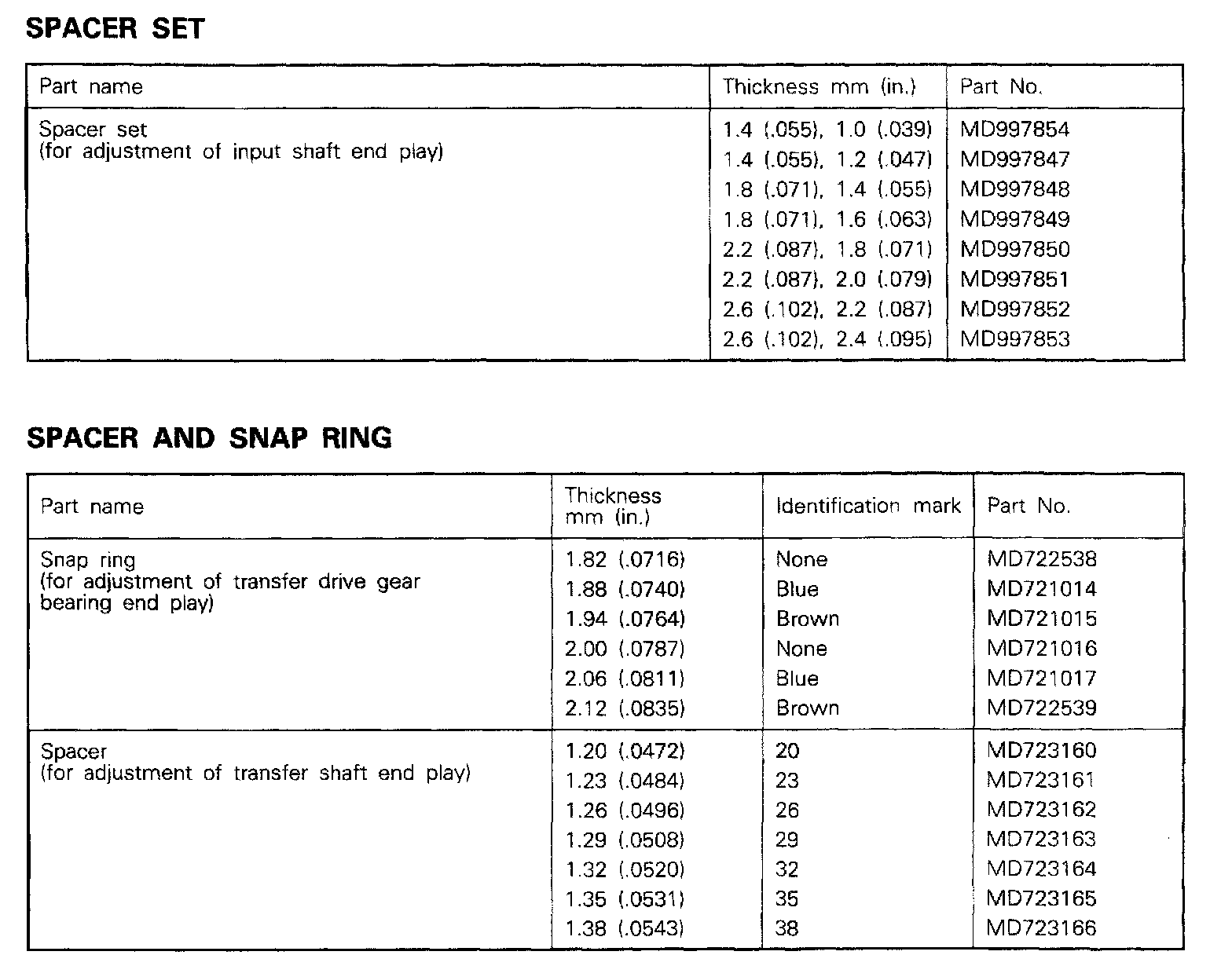

F4A23 4-spd A/T, Input Shaft & Transfer Drive Gear/Shaft:

F4A23 4-spd A/T, Transfer Shaft, Clutch Clearance & Differential:

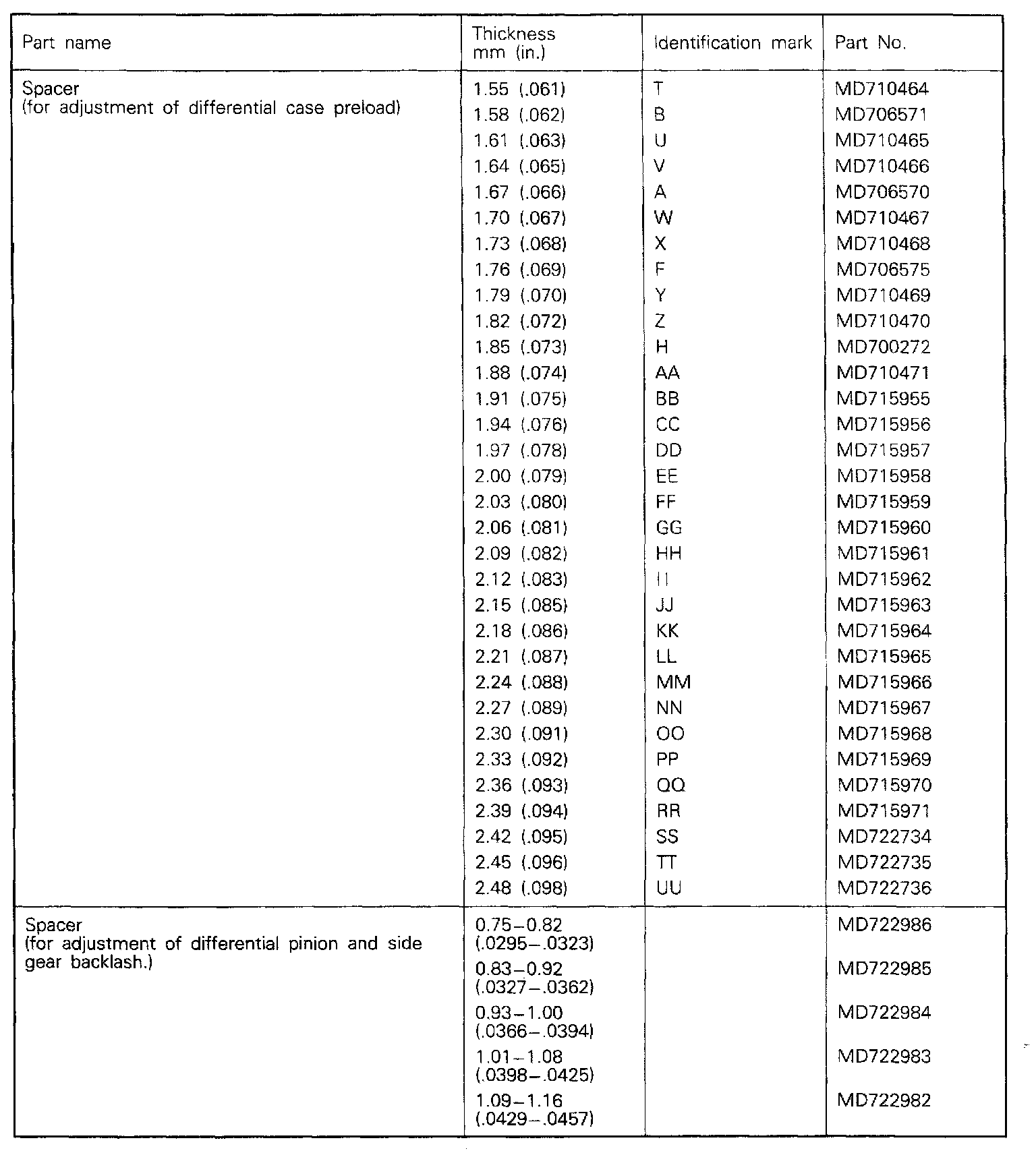

F4A23 4-spd A/T, Differential Spacer Preload & Pinion/Side Gear Lash:
