Diagrams
>>
Electrical Diagrams
Electrical Diagrams

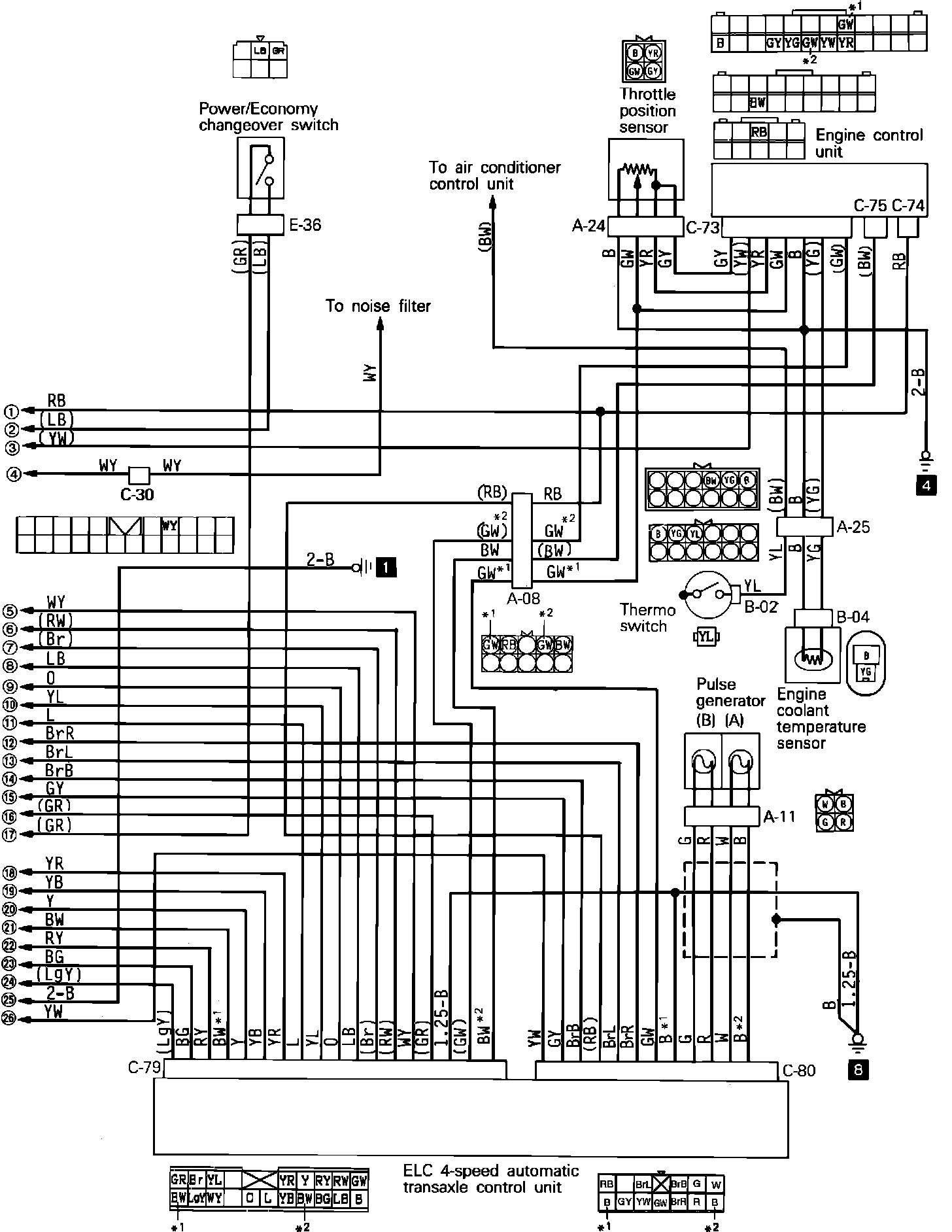

Electronic controlled 4-Speed Automatic Transaxle:

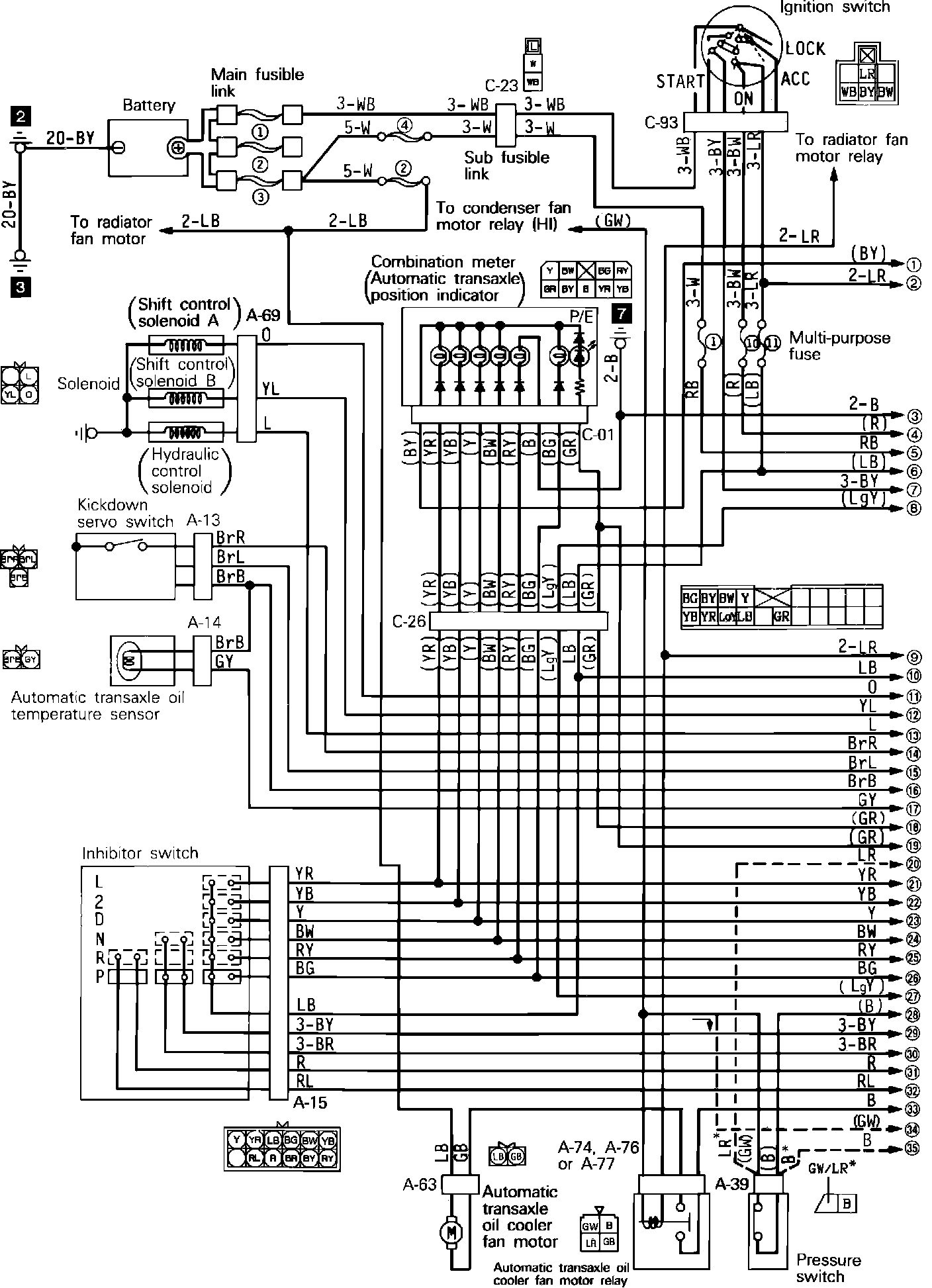

Electronic controlled 4-Speed Automatic Transaxle:

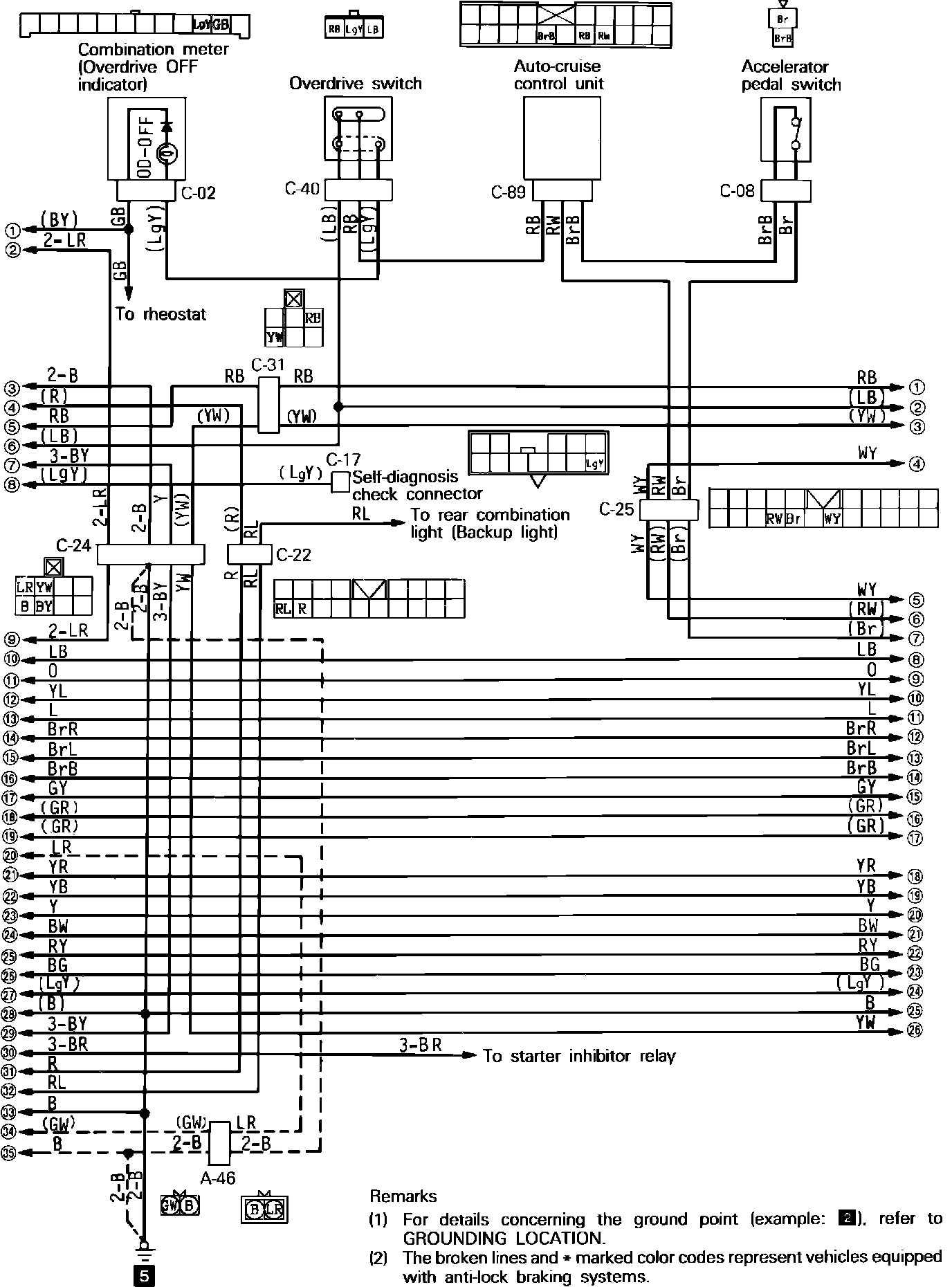

Electronic controlled 4-Speed Automatic Transaxle:
