Evaporative Check Valve: Locations

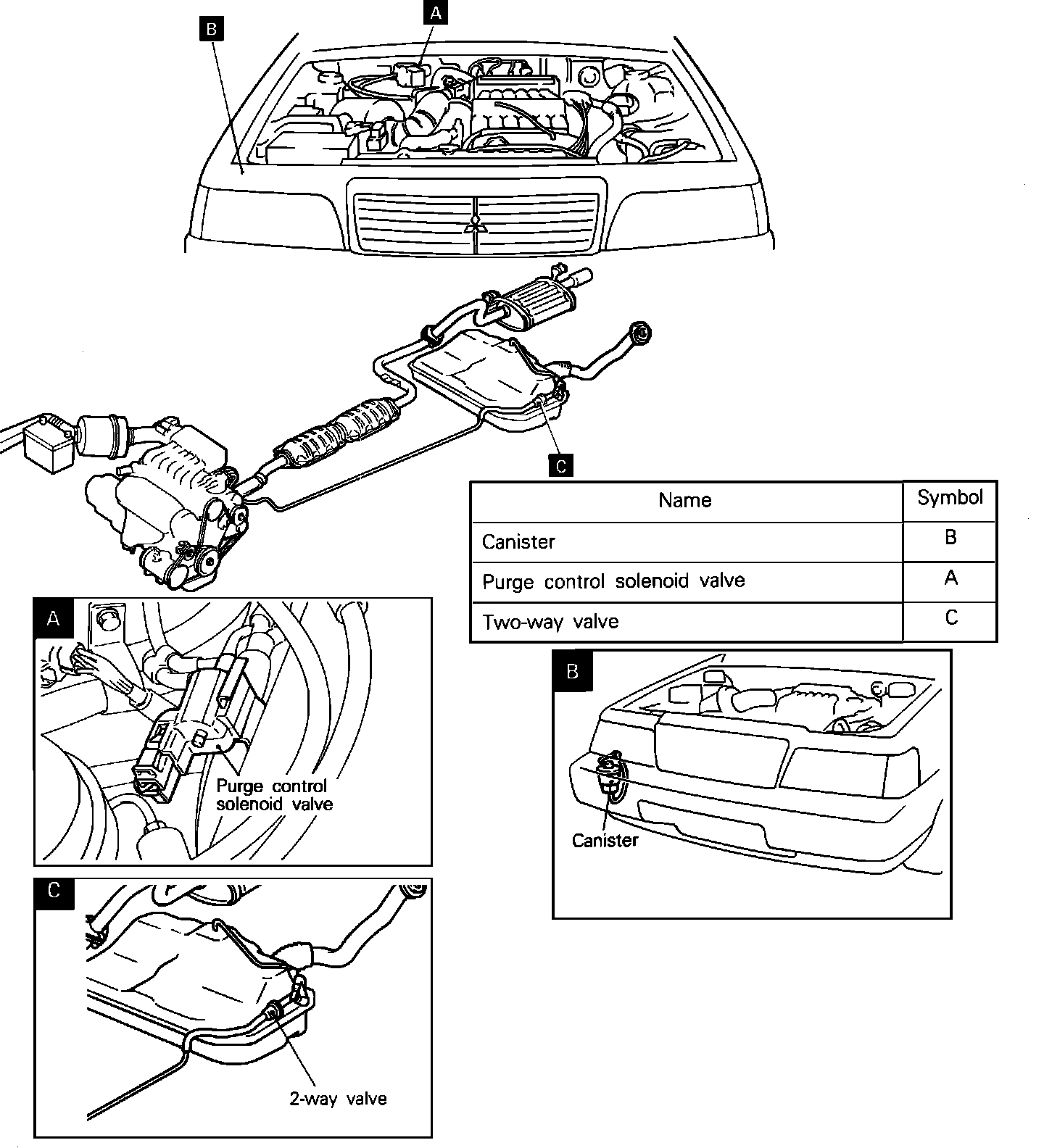

Fig. 15 Component Locations (Evaporative Emission Control System):

Charcoal Canister: Front, RH side of engine compartment
Purge Control Solenoid Valve: Center, rear of engine compartment
Purge Port: On the side of throttle valve housing
Two-way Valve: Rear of vehicle, near fuel tank
