System Diagram

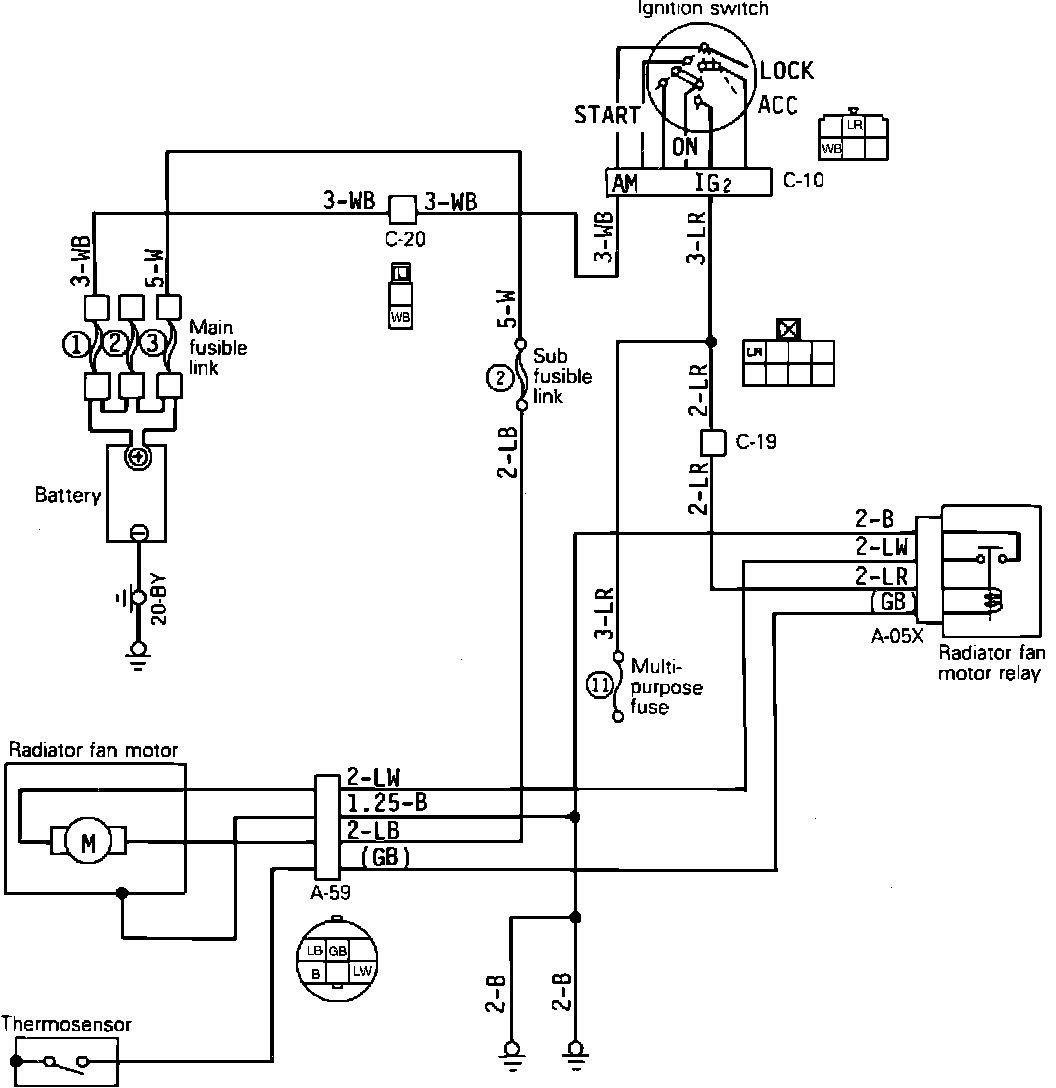

Fig. 3 Cooling Fan Wiring Diagram. 1989-90 Sigma (Less A/C):

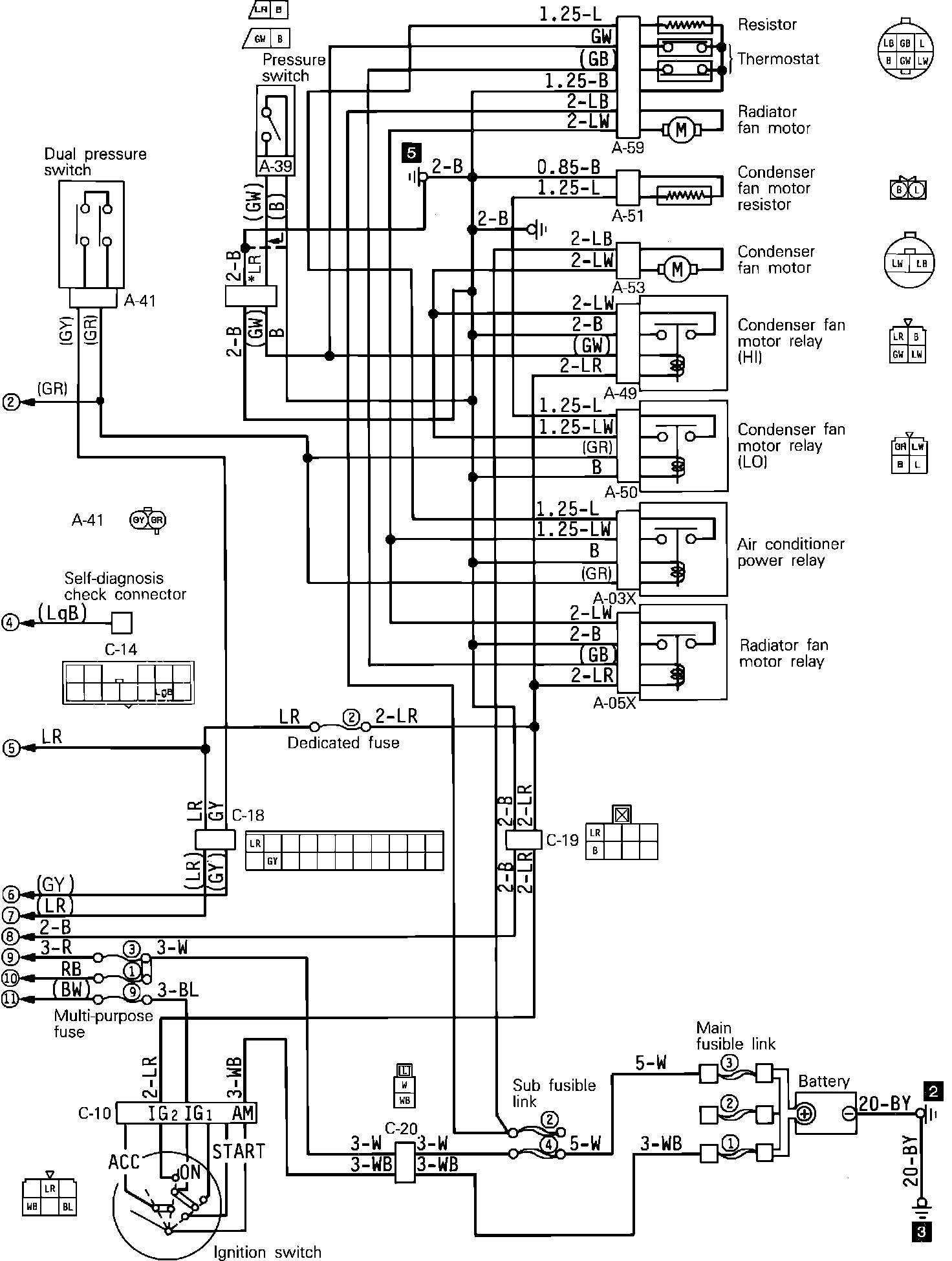

Air Conditioning System:
