Home >> Mitsubishi >> 1990 >> Sigma V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Audible Warning Device >> A/C Mode Control Buzzer

A/C Mode Control Buzzer

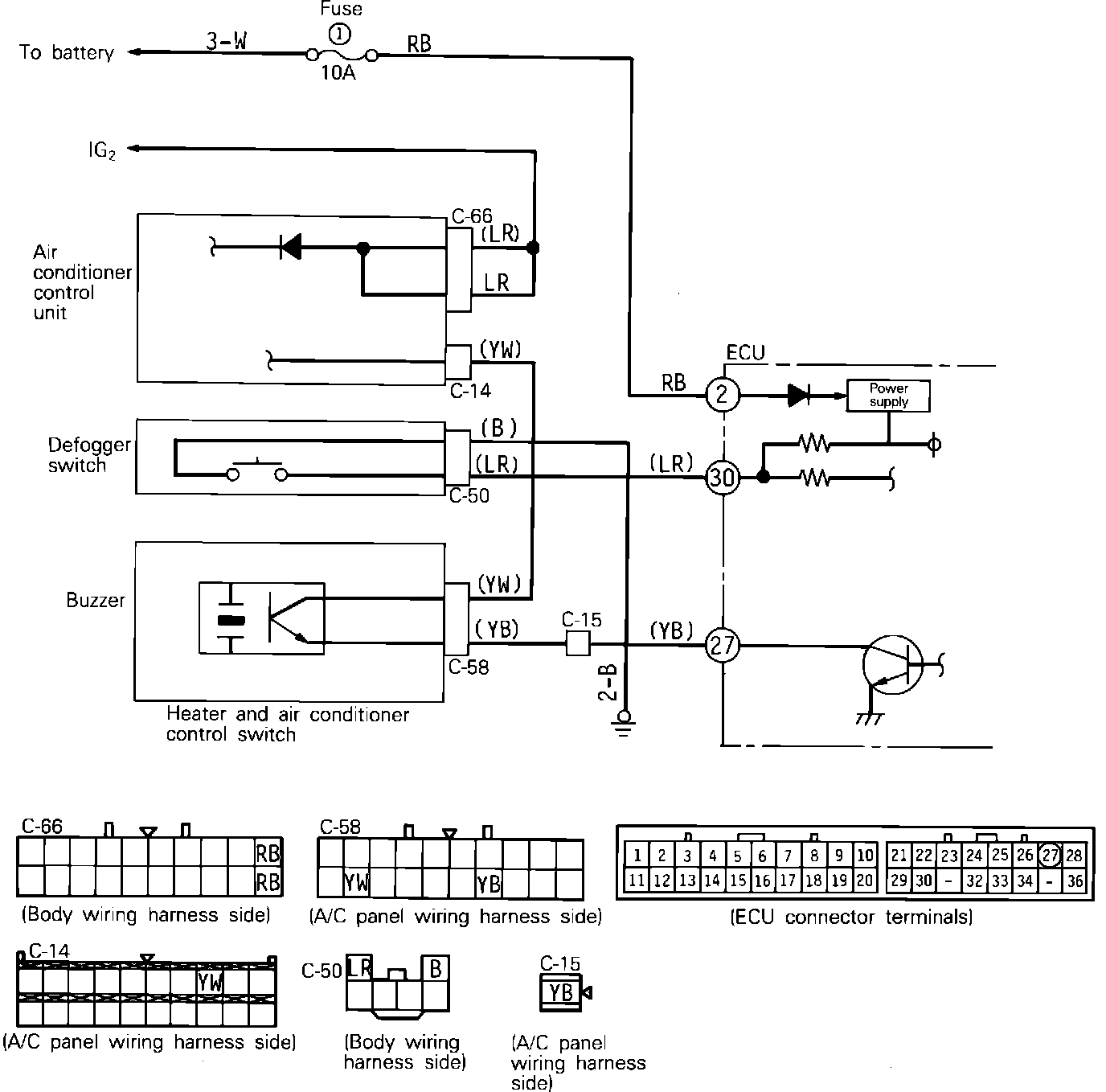

Buzzer Circuit:
