MPI System - Circuit Diagram Revision
90mitsubishi03SUBJECT: MIRAGE MPI CIRCUIT DIAGRAM -
SERVICE MANUAL REVISION
NO. TSB-90-13-002
DATE February, 1990
MODEL Mirage
PURPOSE
This bulletin describes a correction to the MPI circuit diagram in the 1989 and 1990 Mirage Service; Manuals. As a reference to this bulletin, please write the TSB number in the TSB revision box at the bottom of the affected pages.
AFFECTED MANUALS
Service Manual Page
1989 MIRAGE, Volume 1 14-16
1989 MIRAGE, Volume 2 8-62
1990 MIRAGE, Volume 1 13-18
1990 MIRAGE, Volume 2 58
DESCRIPTION

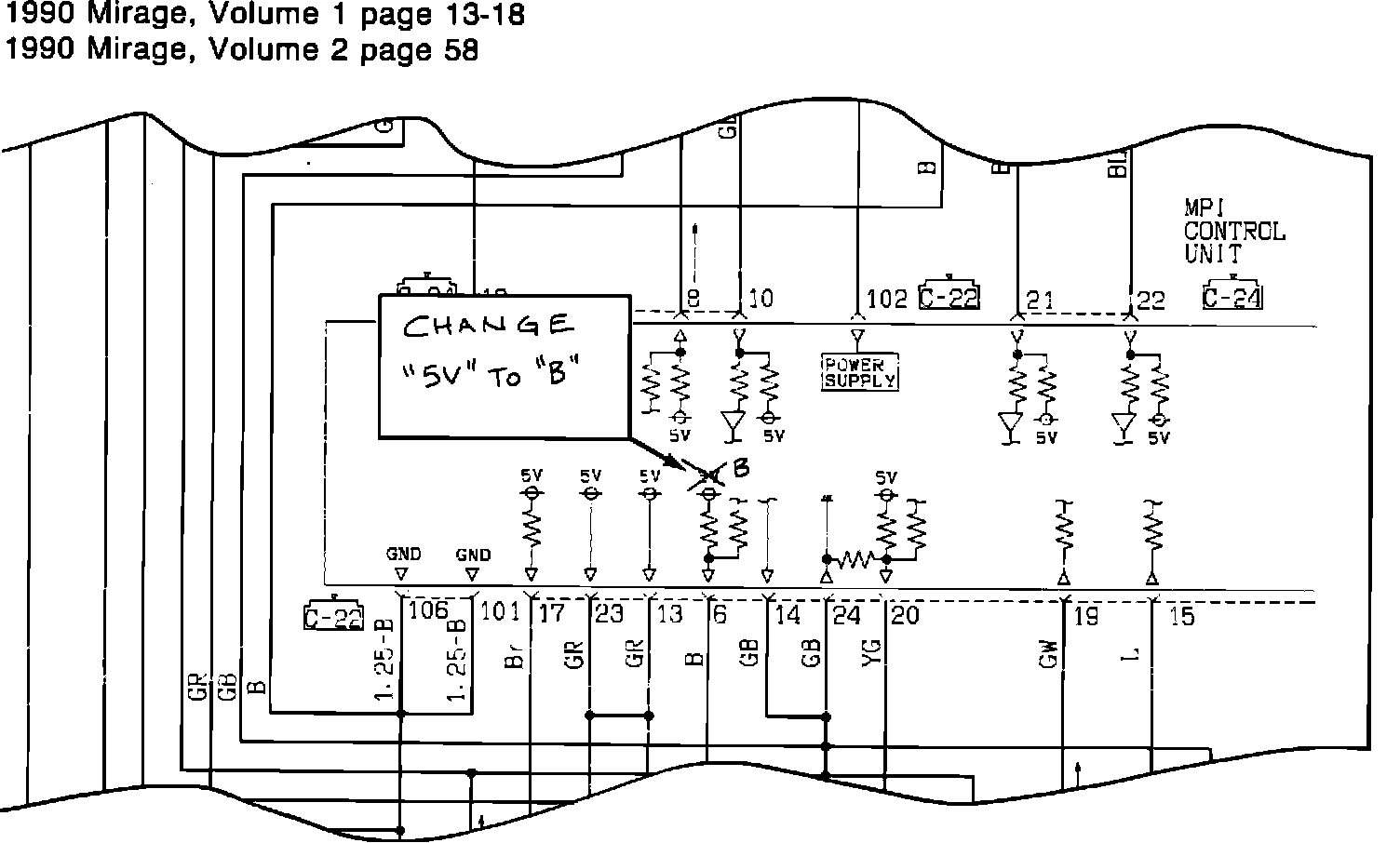

The MPI system circuit diagram incorrectly shows 5V at terminal 6 of the MPI control unit (which is connected to the positive terminal of the idle switch). The correct voltage is "B", which indicates System Voltage. Remember that System Voltage can vary depending on battery condition, whether or not the alternator is charging, etc.
SERVICE MANUAL CORRECTIONS
