Timing Belt: Adjustments

ADJUSTMENT OF TIMING BELT TENSION

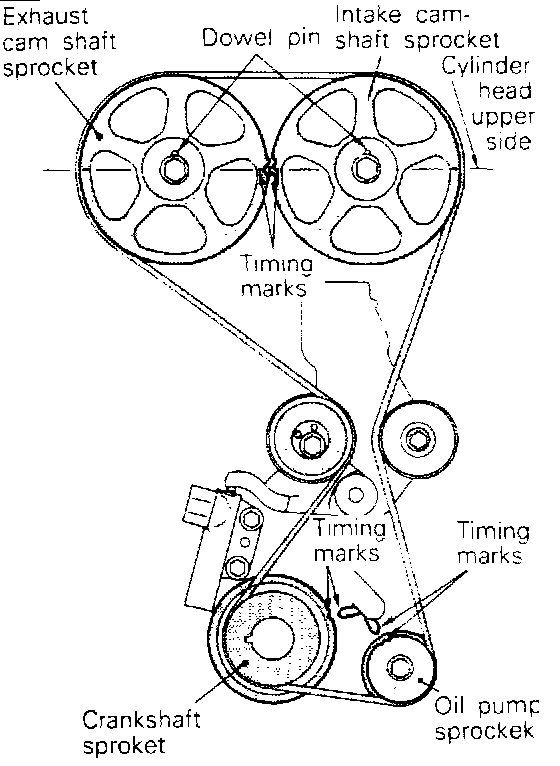

(1) After turning the crankshaft 1/4 turn counterclockwise, turn it clockwise to move the No.1 cylinder to top dead center.

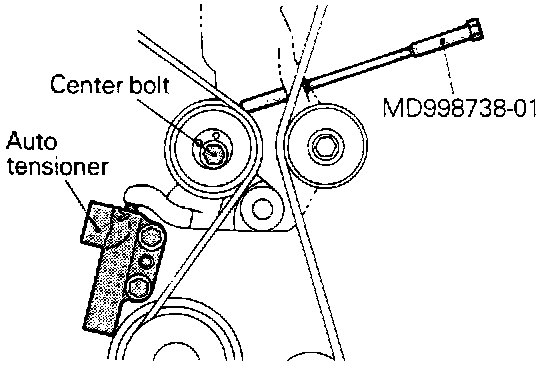

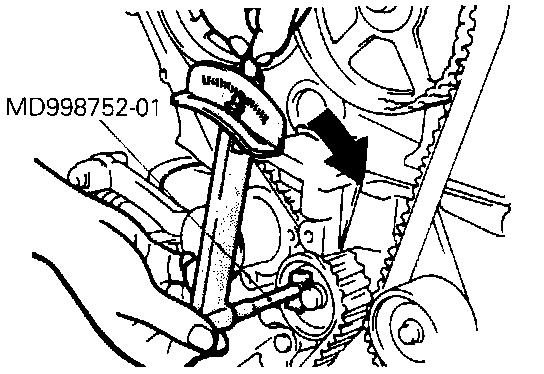

(2) Loosen the center bolt, and then, as shown in the illustration, attach the special tool and a torque wrench and apply a torque of 2.6 - 2.8 Nm (1.88 - 2.03 ft.lbs.). If the body interferes with the special tool and the torque wrench, use a jack to slightly raise the engine assembly.

NOTE: Use a torque wrench that is capable of measurement within a range of 0 - 3 Nm (0 - 2.2 ft.lbs.).




(3) Holding the tensioner pulley with the special tool and torque wrench, tighten the center bolt to specification.

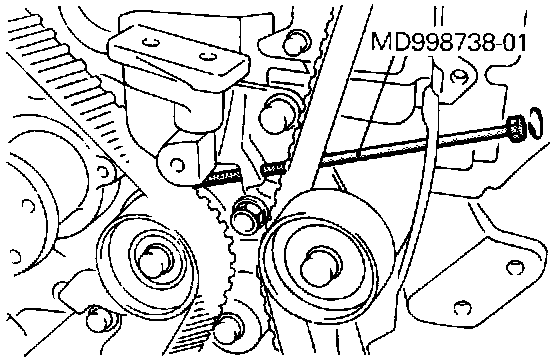

(4) Screw the special tool into the engine left support bracket until its end makes contact with the tensioner arm. At that point, screw the special tool some more and then remove the set wire attached to the auto tensioner.
(5) Remove the special tool.

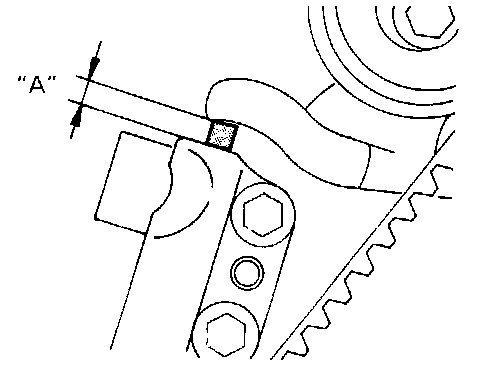

(6) Rotate the crankshaft two complete turns clockwise and leave it as is for about 15 minutes. Then, measure the auto tensioner protrusion "A" (distance between the tensioner arm and auto tensioner body) to ensure that it is up to specification.

Standard value: 3.8 - 4.5 mm (0.15 - 0.18 in.)

- If it is out of specification, repeat steps (1) through (6) until the specified value is obtained.

(7) If the clearance "A" between the tensioner arm and the auto tensioner body cannot be measured (when the engine is mounted on the vehicle, for example), the following alternative method may be used.




(a) Screw in the special tool until its end makes contact with the tensioner arm.

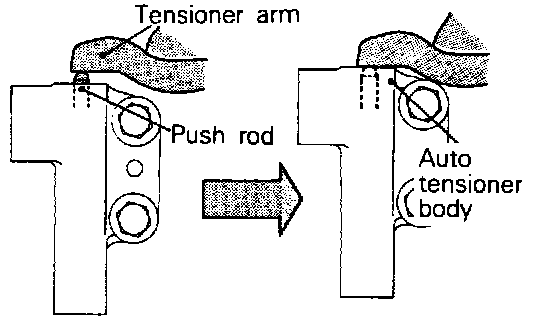

(b) Starting with that position, screw in the special tool some more to retract the auto tensioner push rod while counting the number of turns of the tool makes until the tensioner arm is brought into contact with the auto tensioner body.

NOTE: Make sure that the number of turns the special tool makes conforms with the standard value.

Standard value: 2.5 - 3 turns

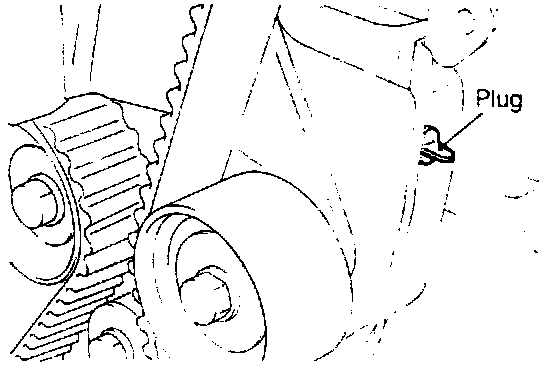

(8) Install the rubber plug to the timing belt rear cover.
