Rear Wipers

WIPER MOTOR

Wiper Operation Check

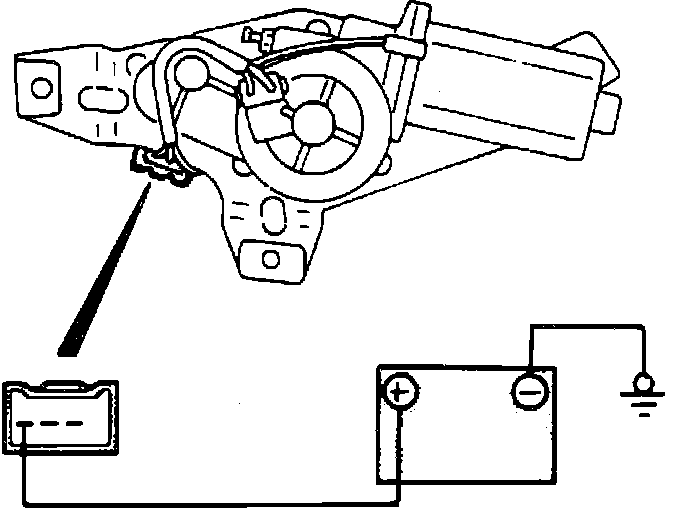

Fig. 58 Rear Wiper Low Speed Operation Check:

Fig. 59 Rear Wiper Automatic Stop Check:

1. Connect battery as shown in Fig. 58, ensure proper operation.
2. Connect jumper and battery as shown in Fig. 59, ensure motor start turning, then stops in the automatic stop position.

WIPER & WASHER SWITCH

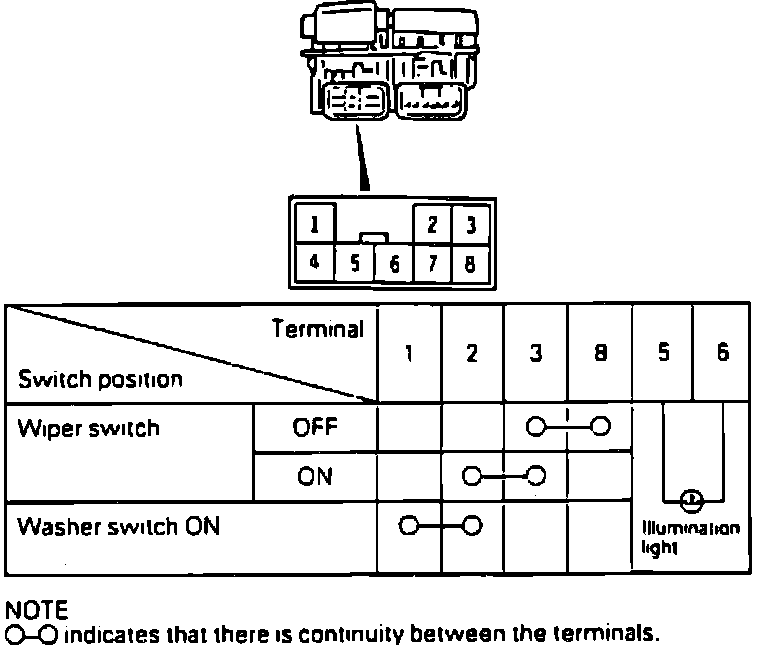

Fig. 60 Rear Wiper & Washer Switch Continuity Chart:

1. Operate switch and check continuity between terminal as shown in Fig. 60.
