F5M21 5-SPD M/T

F5M31/F5M22 5-spd M/T, Clutch Dimensions & Standard Value:

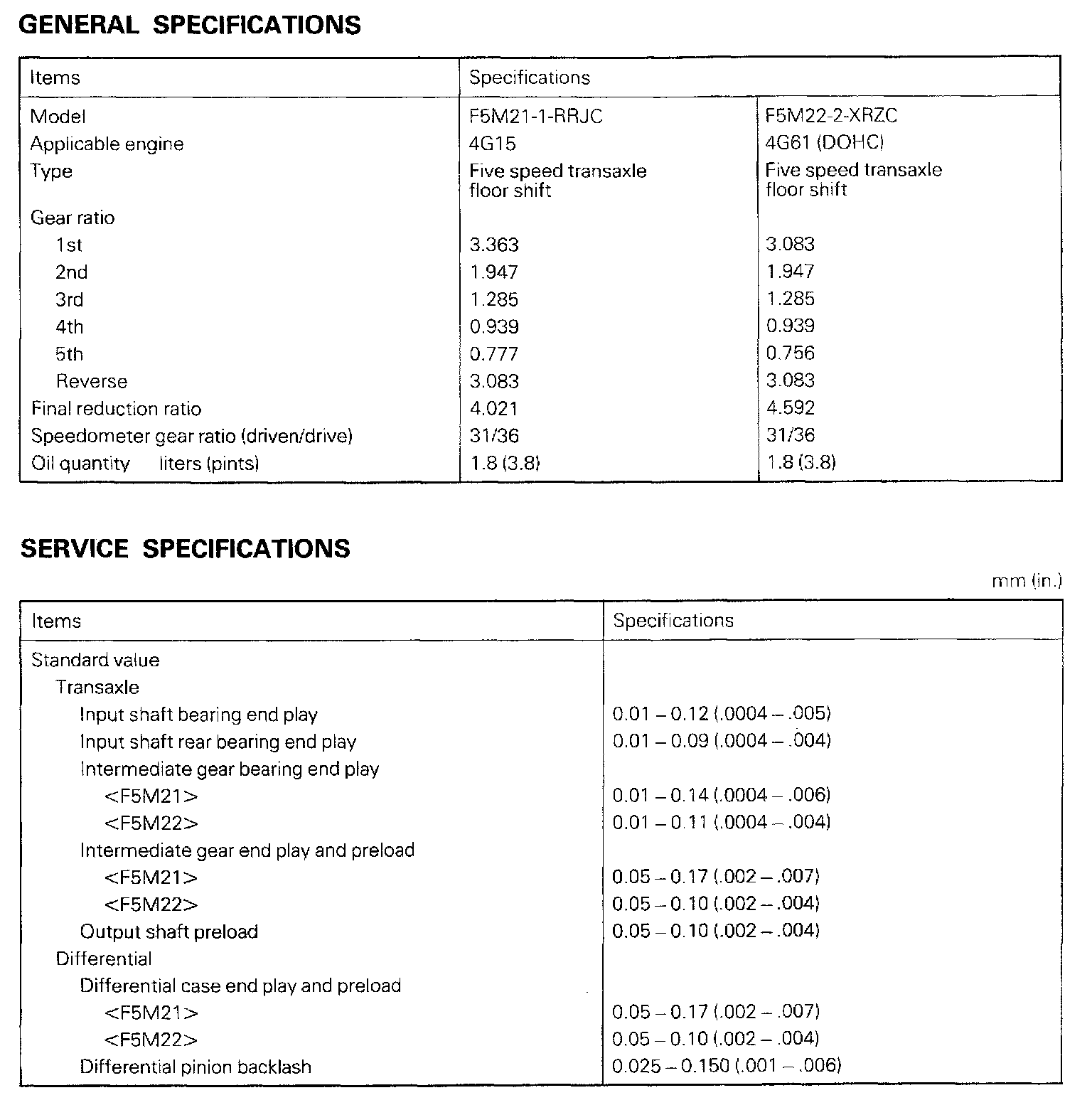

F5M21/F5M22 5-spd M/T, Gear Ratios & Standard Values:





F5M21/F5M22 5-spd M/T, Input Shaft & Intermediate Gear End Play/Preload:

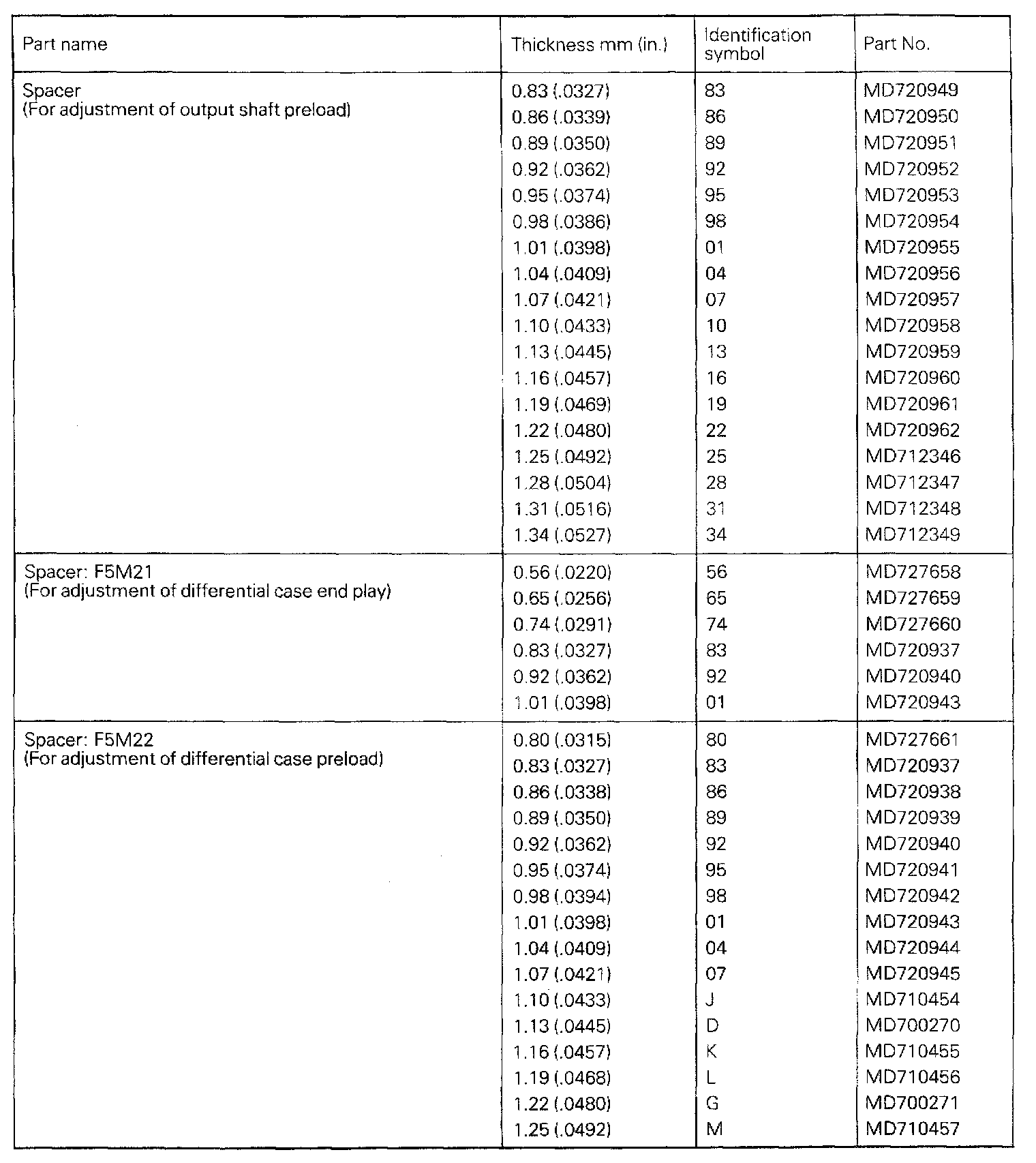

F5M21/F5M22 5-spd M/T, Output Shaft & Differential Case Play/Preload:





F5M21/F5M22 5-spd M/T, Differential Pinion Backlash:
