Shift Forks and Rails

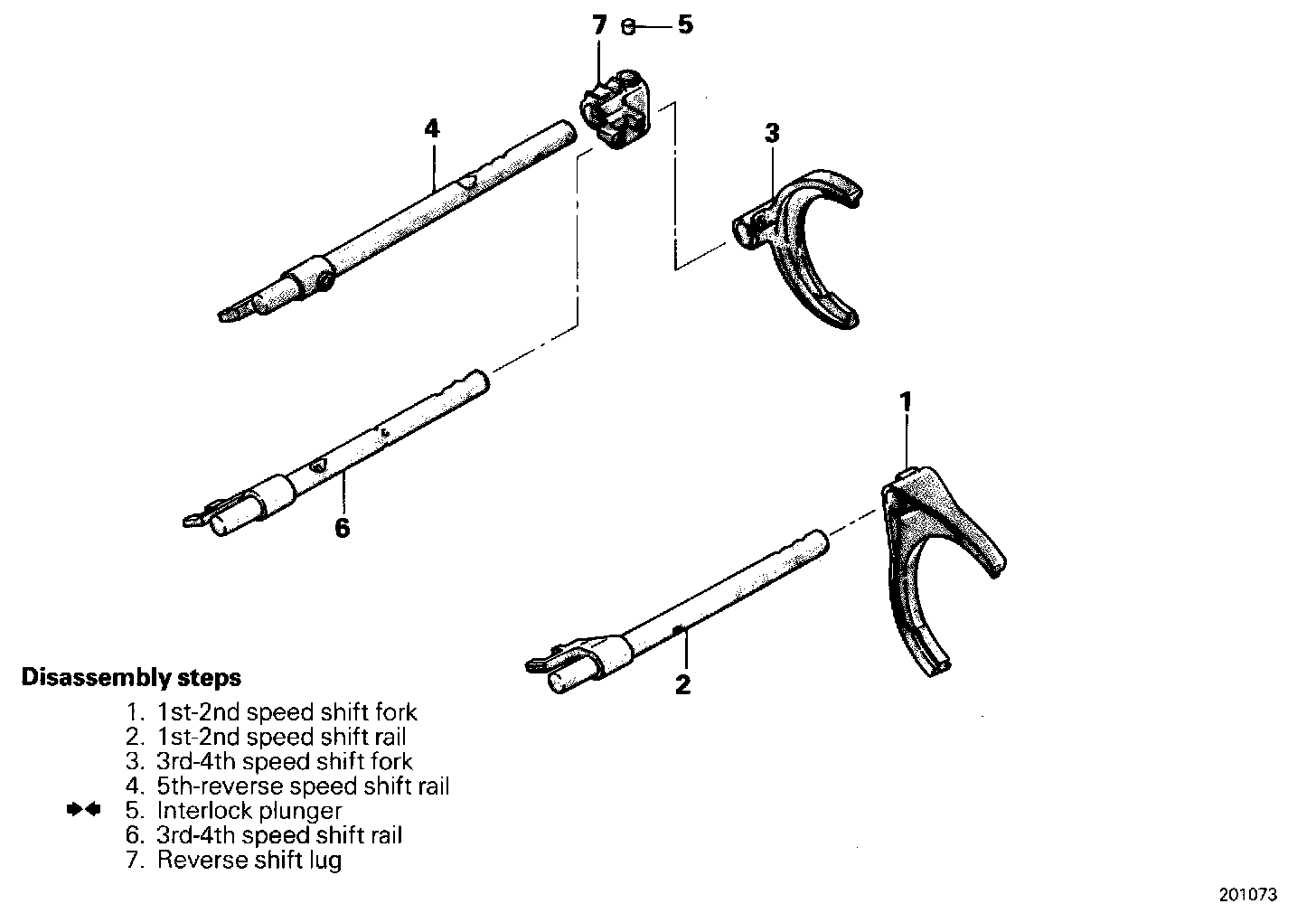

DISASSEMBLY AND REASSEMBLY

SERVICE POINT OF REASSEMBLY

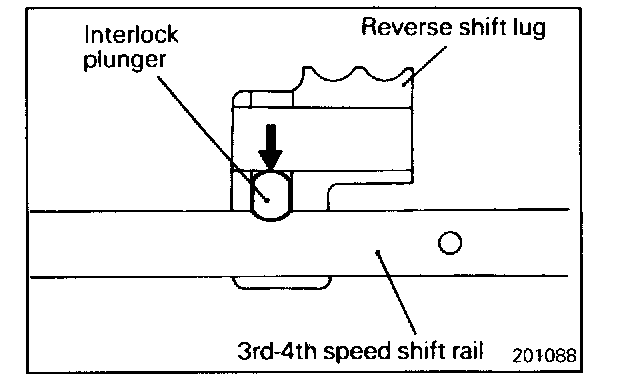

5. INSTALLATION OF INTERLOCK PLUNGER




Insert the interlock plunger at illustrated position of the 3rd-4th speed shift rail.
