Seals and Gaskets: Service and Repair

1. Disconnect the drive shaft from the transaxle. Service and Repair

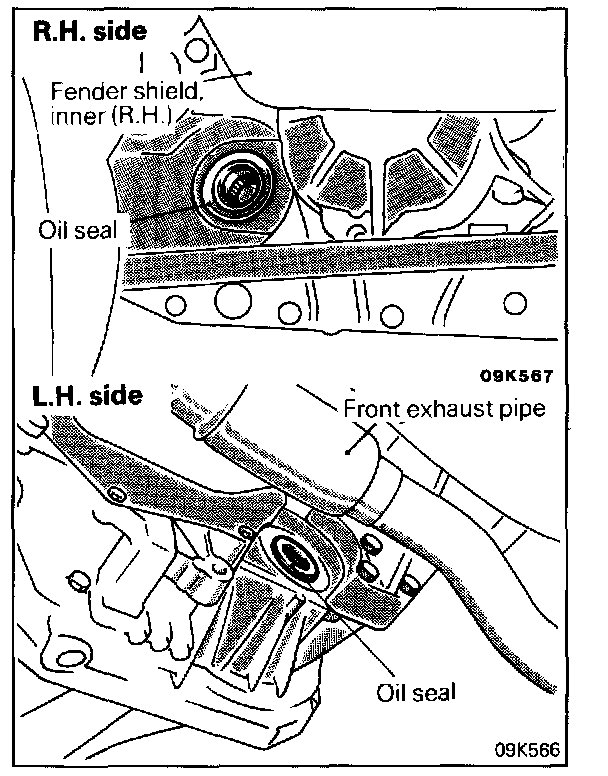

2. Using a flat-tip (-) screwdriver, remove the oil seal.




3. Using the special tool, tap the drive shaft oil seal into the transaxle.
4. Apply a coating of the transmission oil to the lip of the oil seal.

Transmission oil: API classification GL-4 or higher, SAE 75 W - 85 W
