Bell Housing: Service and Repair

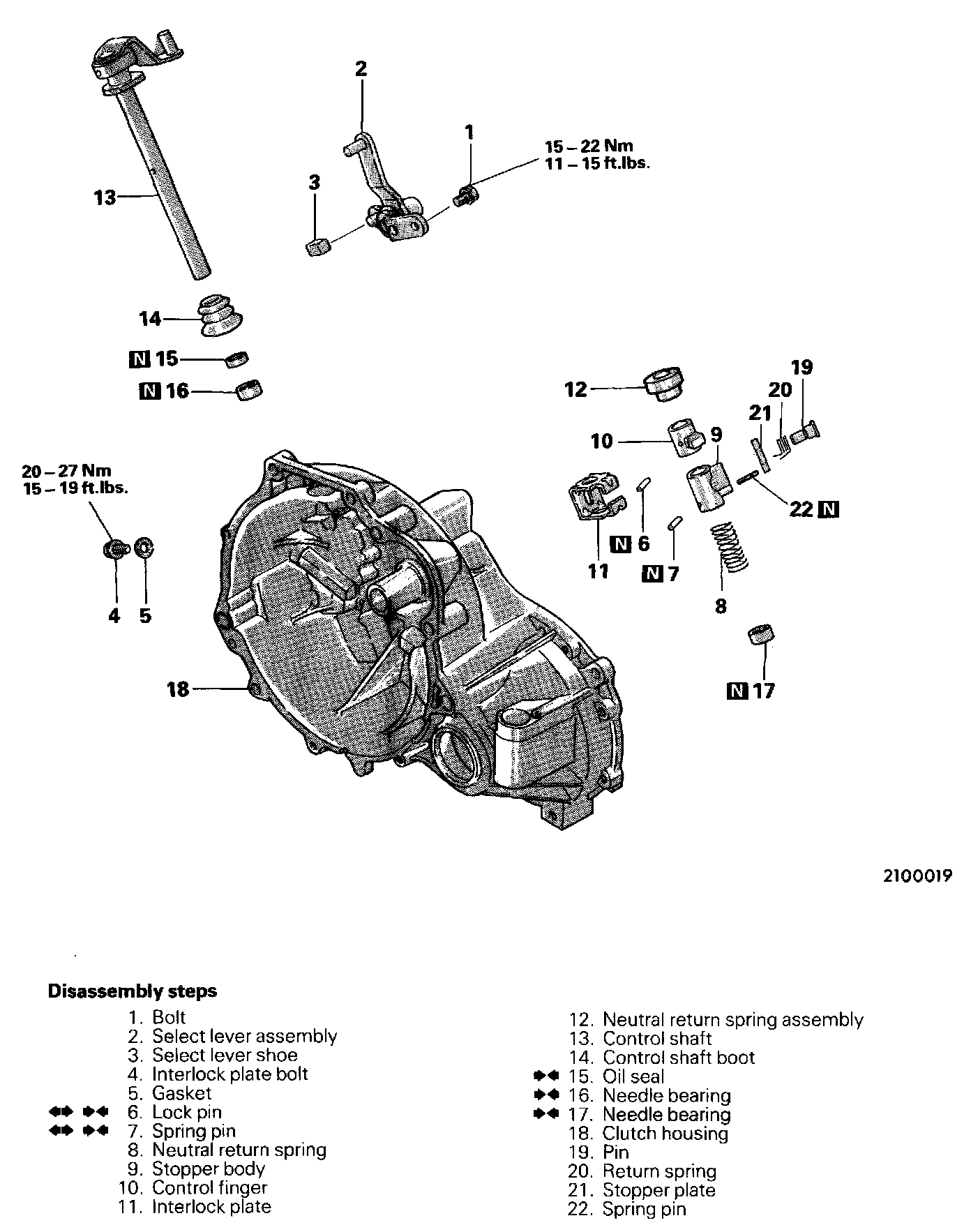

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY

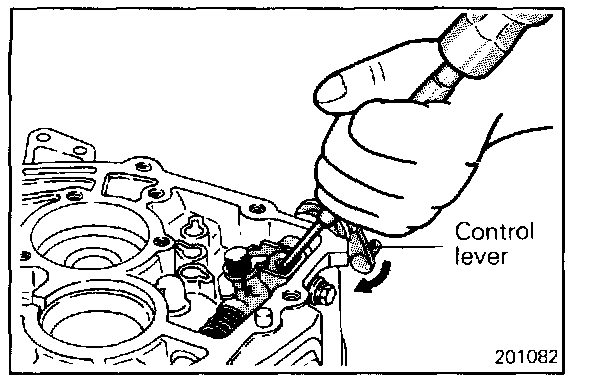

6. REMOVAL OF SPRING PIN




Drive out the spring pin from the control finger using a pin punch.

CAUTION: When removing the spring pin, turn the control lever to such position that the spring pin will not contact the clutch housing.

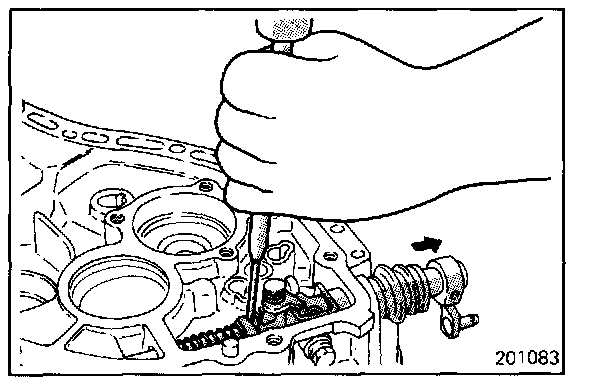

7. REMOVAL OF SPRING PIN




Drive out the spring pin from the stopper body using a pin punch.

CAUTION: When removing the spring pin, pull the control shaft in the direction illustrated so that the spring pin will not contact the clutch housing.

SERVICE POINTS OF REASSEMBLY

17. 16. INSTALLATION OF NEEDLE BEARINGS




Install the needle bearing flush with the surface A of the clutch housing.

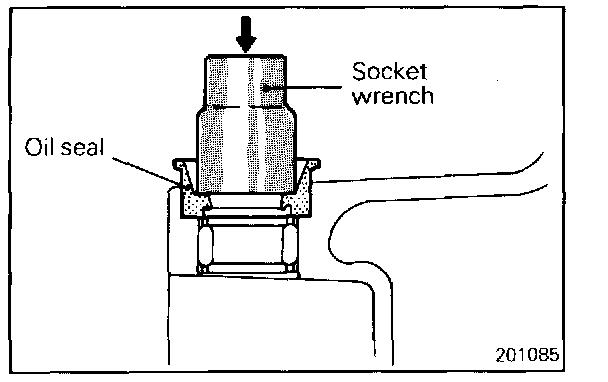

15. INSTALLATION OF OIL SEAL




Install the control shaft oil seal using a socket wrench.

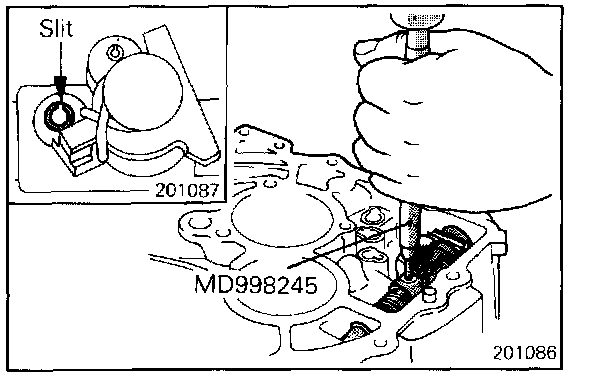

7. 6. INSTALLATION OF SPRING PIN AND LOCK PIN




1. Install new spring pin and lock pin using the special tool.

CAUTION: Do not reuse the spring pin.

2. Install the spring pins with their slit at right angle to the control shaft center.
