Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
F3A21
F3A21

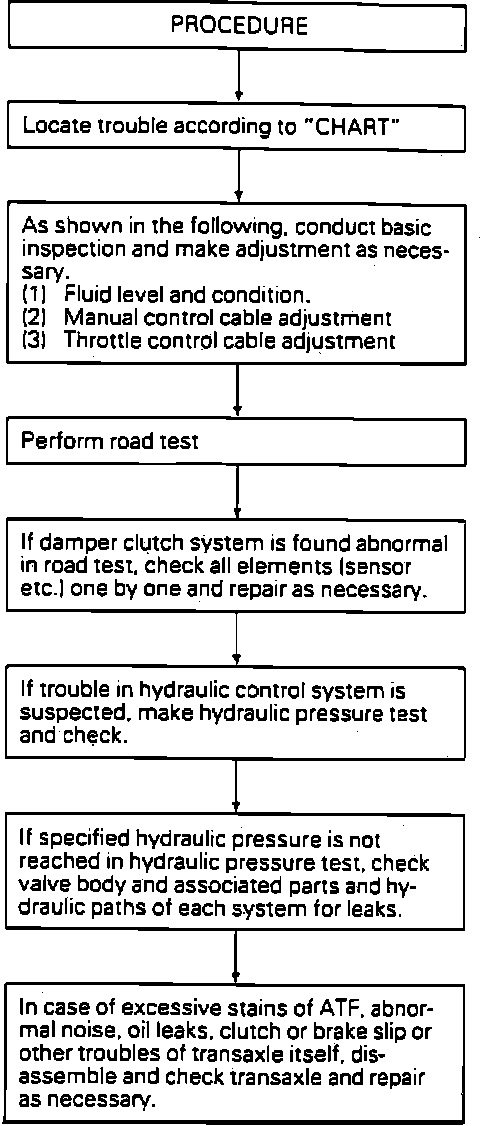

Fig. 3 Troubleshooting Flow Chart:

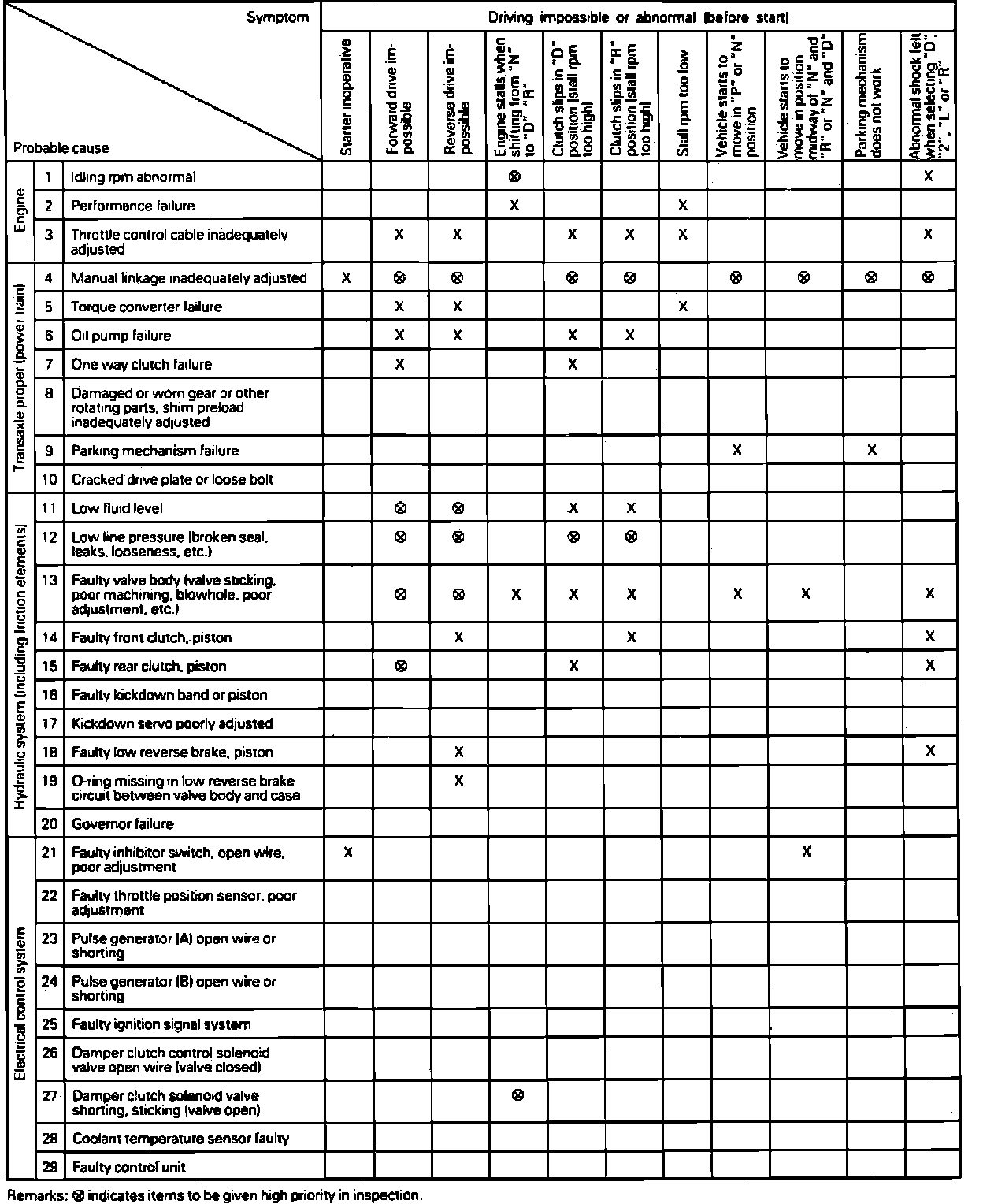

Fig. 4 Transaxle Troubleshooting Chart (Part 1 Of 2):

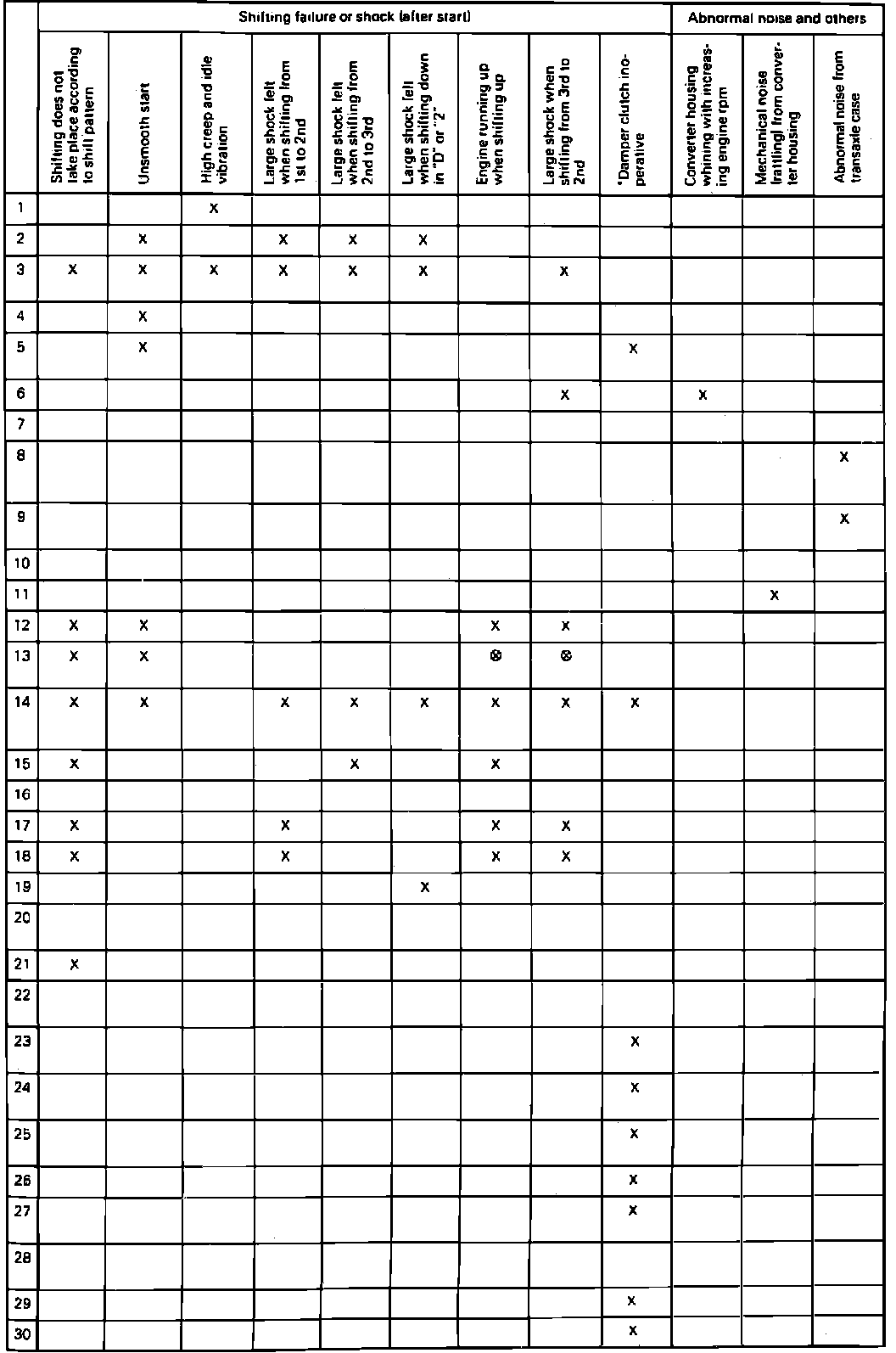

Fig. 4 Transaxle Troubleshooting Chart (Part 2 Of 2):
