Suspension - Squeaking From Front
90mitsubishi09SUBJECT: 1989-1990 MIRAGE STABILIZER BAR
SQUEAK
NO. TSB-90-33A-001 REVISION
DATE May, 1990
MODEL Mirage
Figure 1:
Figure 2:
This bulletin supersedes TSB-90-33A-001, dated March 1990, which should be discarded.
PURPOSE
During cold weather the front suspension of some 1989 and 1990 Mirage vehicles may emit a squeaking sound. If this squeak is found to originate in the stabilizer bar frame bushings, the condition may be corrected by replacing the front stabilizer barframe bushings with bushings of a new design.
WARRANTY INFORMATION
Normal warranty procedures apply.
PARTS INFORMATION
FRONT STABILIZER BAR FRAME BUSHINGS
NON-TURBO TURBO
MB808003 MB808005

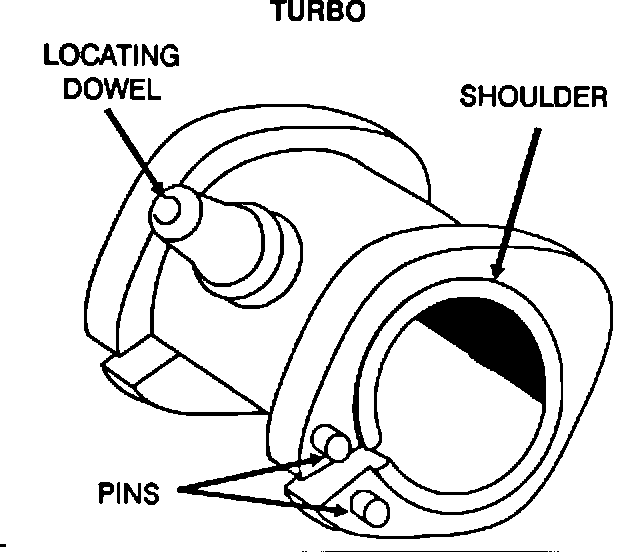

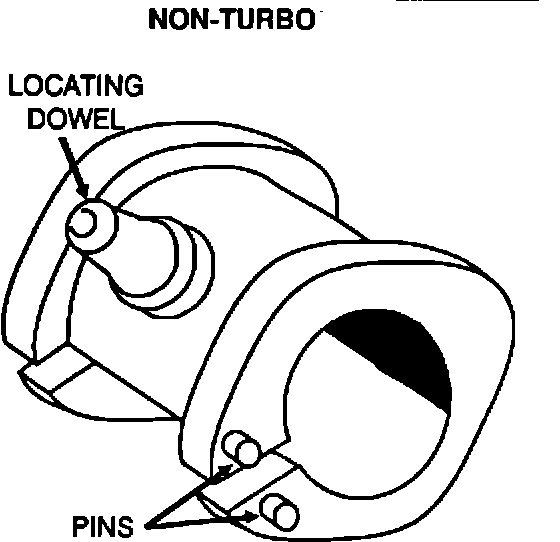

Figure 1 Figure 2
BUSHING INSTALLATION
Replace the stabilizer frame bushings as described in the Service Manual.
