Lights - Dome Circuit, Manual Correction

91mitsubishi06

NO. TSB-91-54-002

DATE February, 1991

MODEL 1990 Mirage


SUBJECT:

MIRAGE DOME LIGHT CIRCUIT -

SERVICE MANUAL CORRECTION


TSB Revision TSB 91-54-002

PURPOSE

This bulletin corrects circuit diagrams and wiring configuration diagrams in the dome light circuit for the 1990 Mirage. As reference to this bulletin, please write the TSB number in the revision boxes on the affected pages, and write the corrections on the diagrams.

SERVICE MANUAL AFFECTED

1990 Mirage Service Manual, Vol. 2, Pages 35 and 54-36.





DESCRIPTION

Pages 54-36: Connector terminal 7 should be shown on the circuit diagram as illustrated.

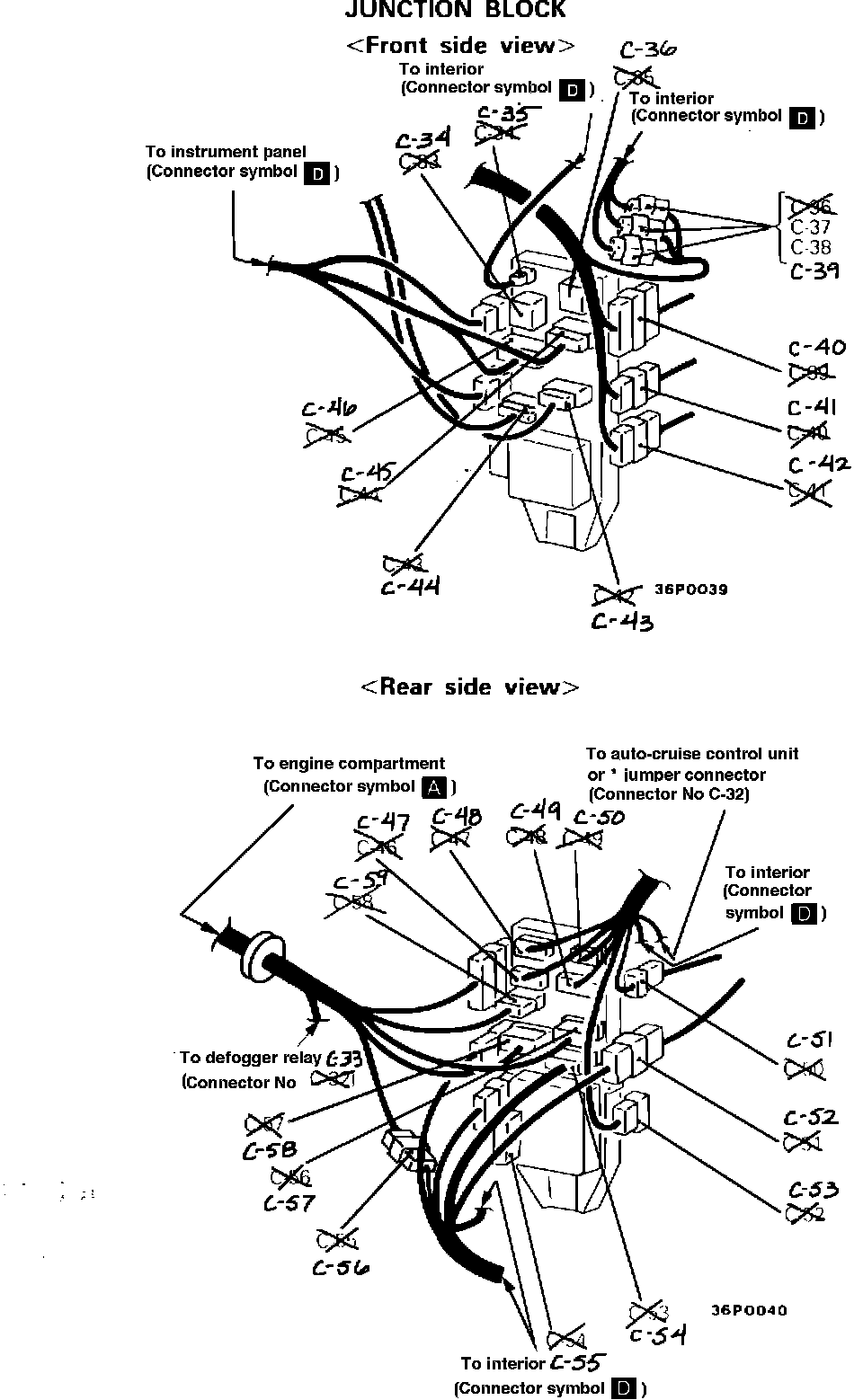

Page 35: The wiring harness connectors around the junction block are incorrectly numbered and must be re-numbered as illustrated.
