A/C - Installation Kit Requires More Wire Ties

90mitsubishi09 SUBJECT:

WIRE TIES FOR AIR CONDITIONER KITS
NO. TSB-90-55-002

DATE May, 1990

MODEL 1990 Mirage
PURPOSE

This bulletin is to inform you of a change in the number of wire ties that are required in the Air Conditioner Kit.


MANUALS AFFECTED

Mirage Air Conditioner Installation Manual MSSP-032F-89, Page 32.


DETAILS OF CHANGE

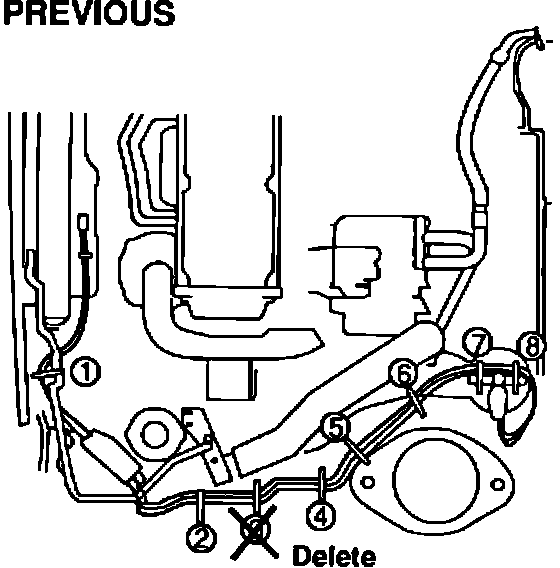

Figure 1:

Due to an improvement in the design, there will be a need to use only seven (7) wire ties instead of eight (8). As shown in Figure 1, the number three
(3) wire tie is to be deleted.

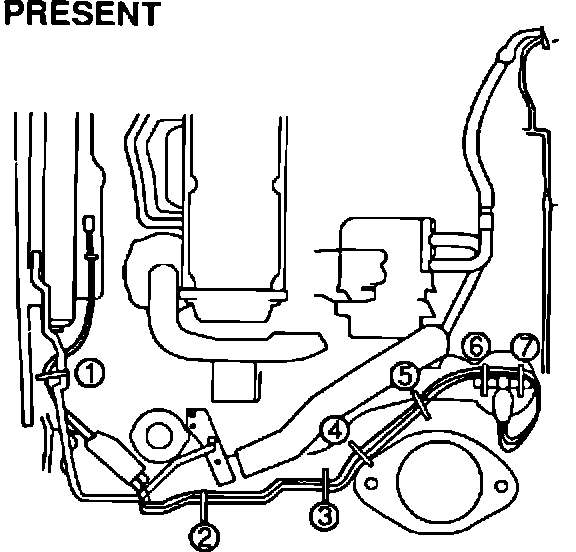

Figure 2:

Figure 2 shows the locations of the seven (7) remaining wire ties.
