F4A21 4-SPD A/T

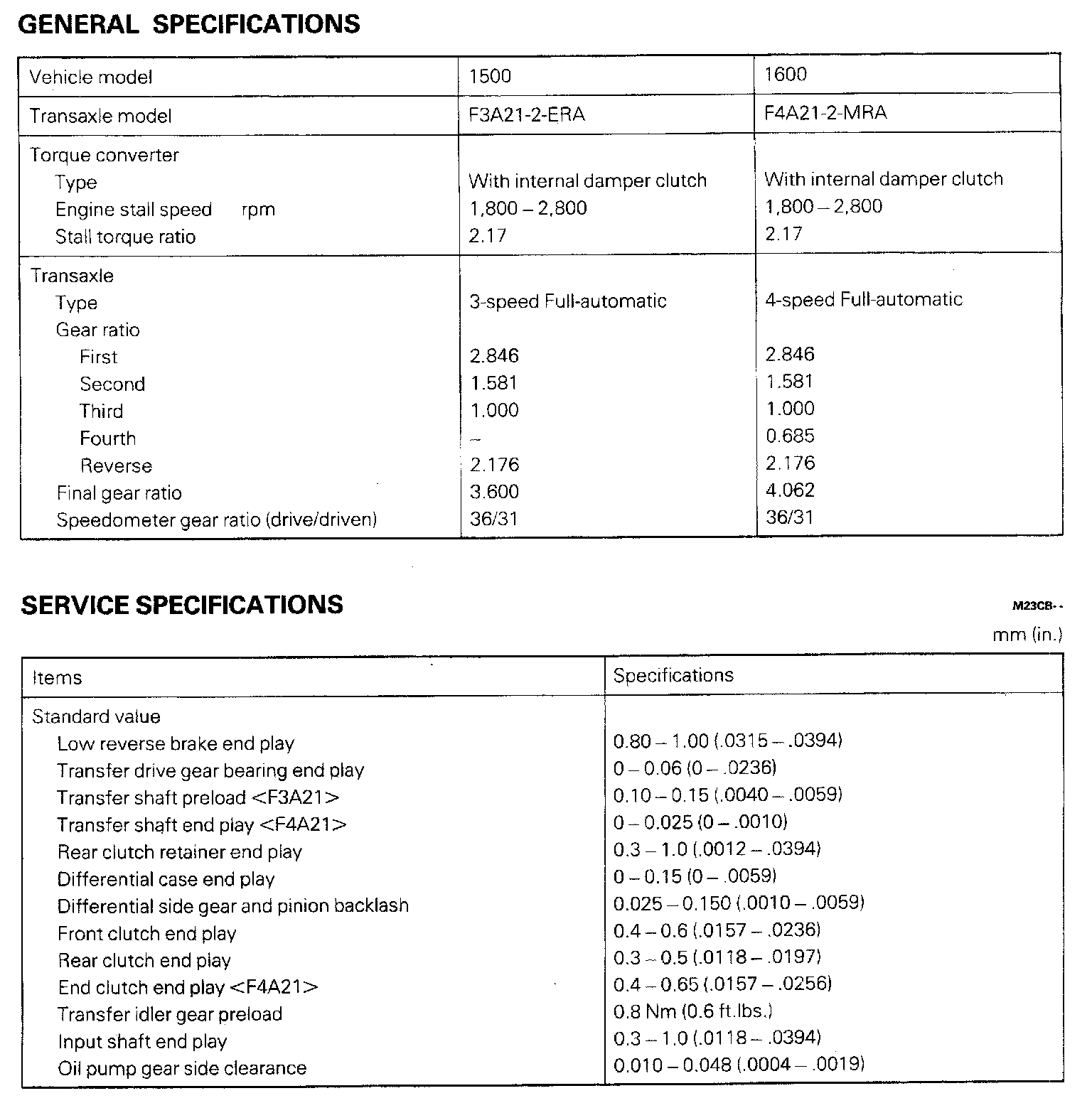

F3A21 3-spd/F4A21 4-spd A/T, Gear Ratio & Standard Values:





F3A21/F4A21 A/T, Valve Body Spring Charts:





F3A21/F4A21 A/T, Transfer Drive Gear End Play & Preload:

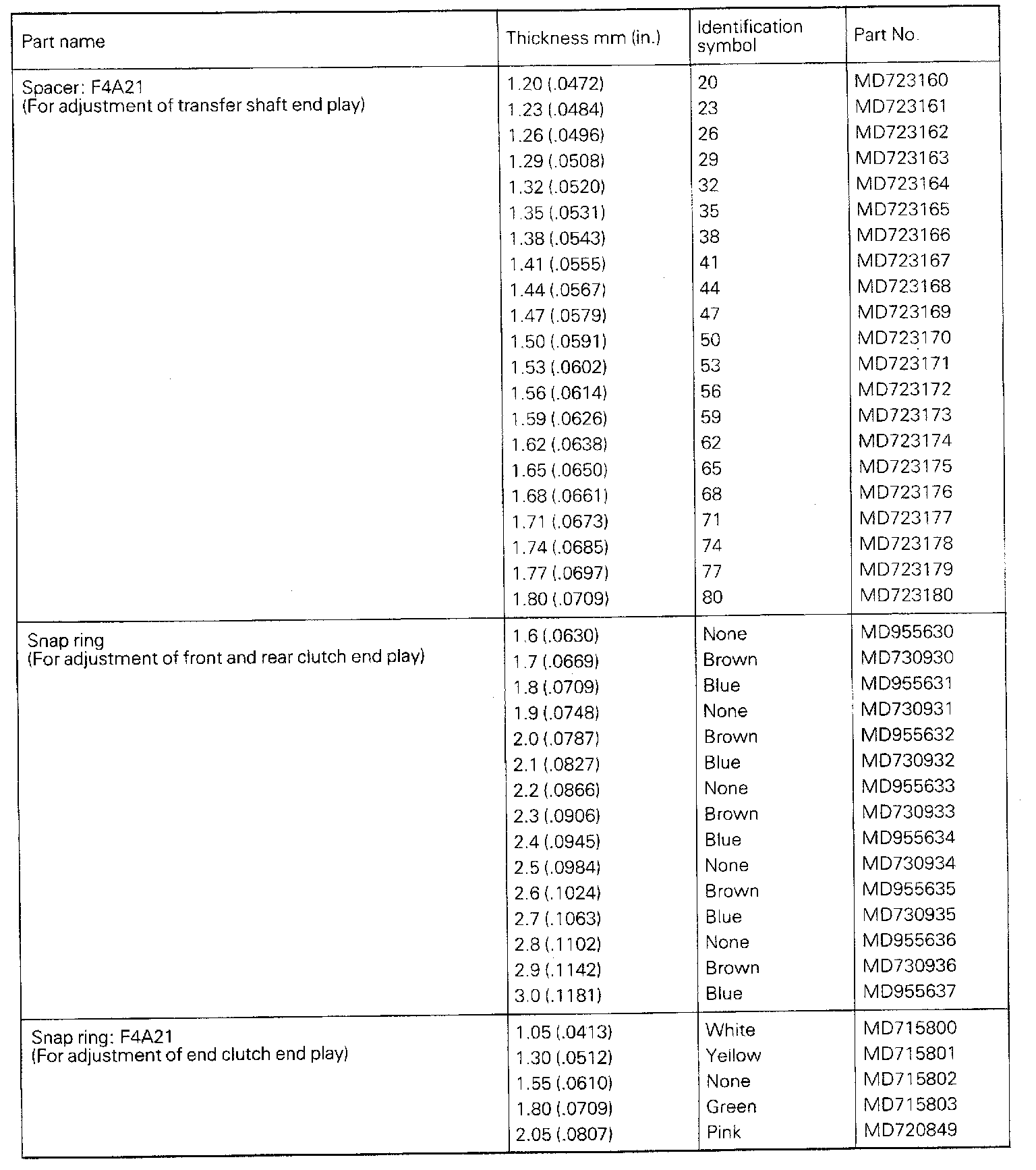

F3A21/F4A21 5-spd A/T, Transfer Shaft & Clutch End Play:





F3A21/F4A21 A/T, Differential Case Play, Side Gear & Pinion Backlash:
