Home >> Mitsubishi >> 1990 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

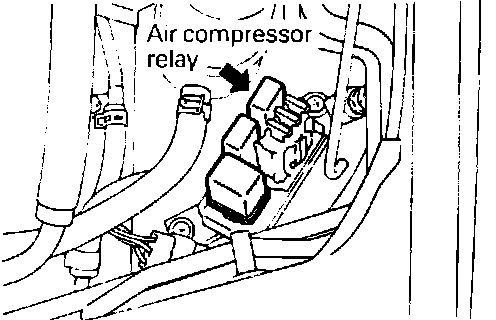

A/C Relay Location:




Relay Locations:




In the relay box, on the left fender apron.
