Electrical Diagrams

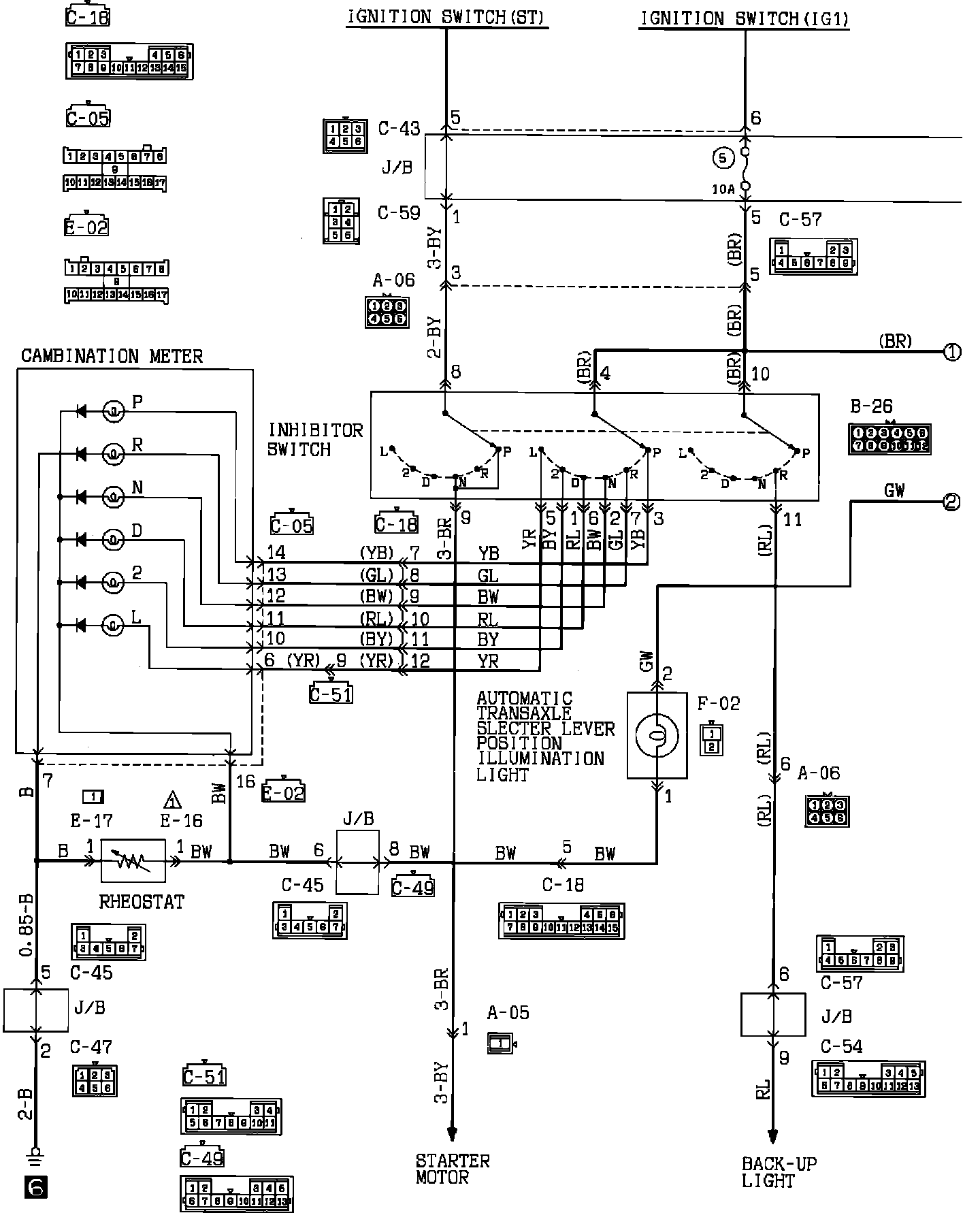

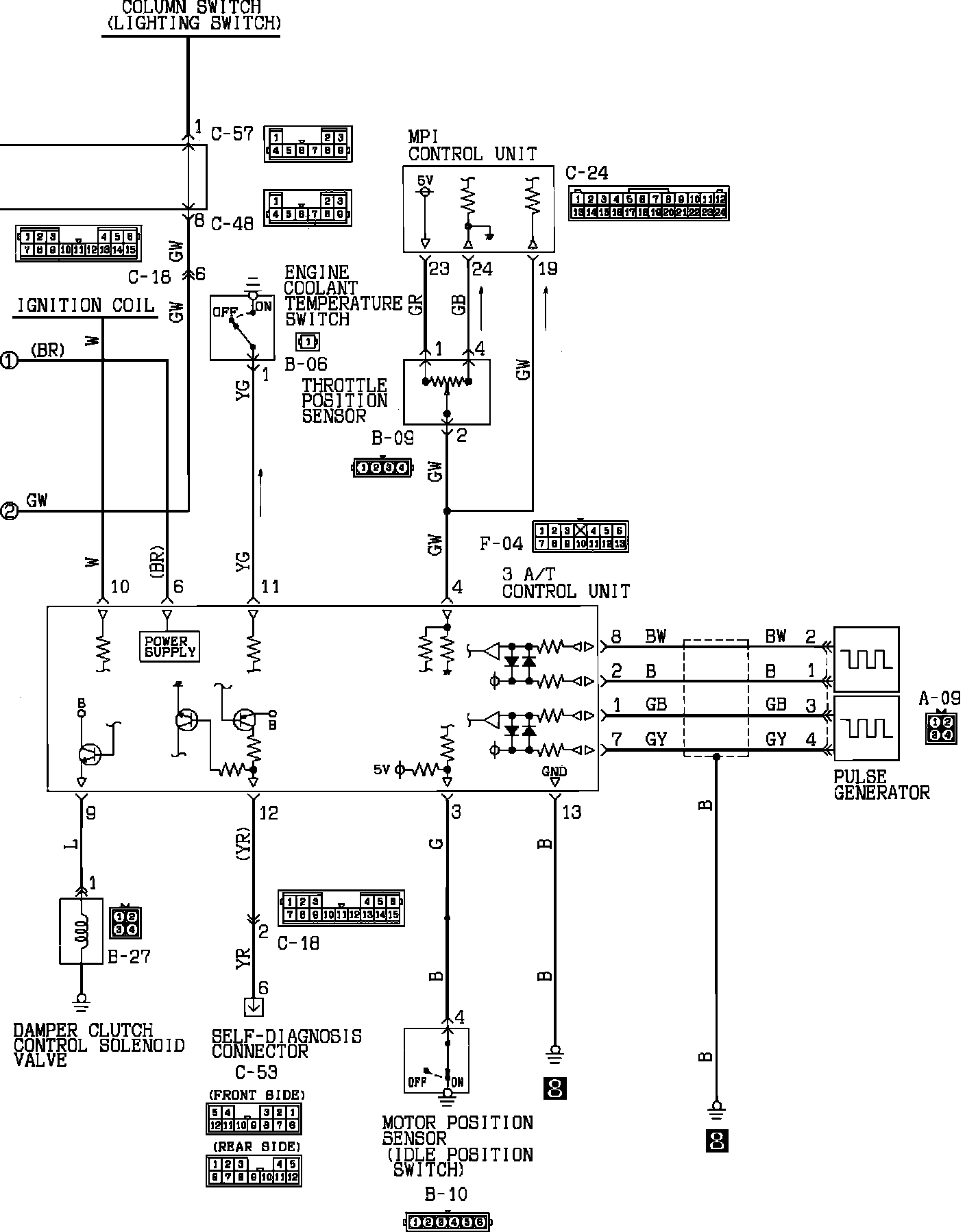

3-Speed Automatic Transaxle System:



3-Speed Automatic Transaxle System:

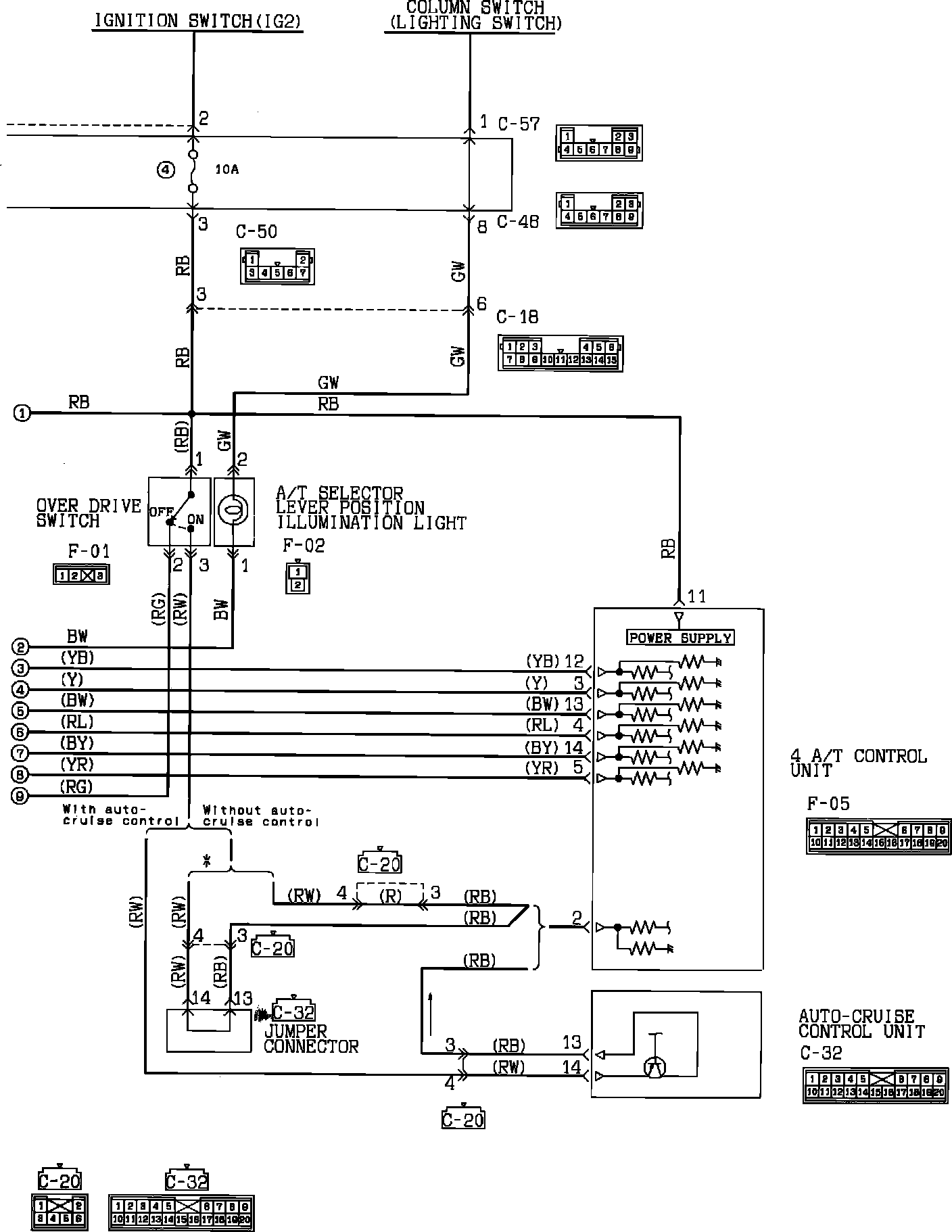

4-Speed Automatic Transaxle System:



4-Speed Automatic Transaxle System:



4-Speed Automatic Transaxle System:



4-Speed Automatic Transaxle System:
